Danfoss orbital motor quick selector Parts

Danfoss

103-1077-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA02AB0000000000000AA00M

Danfoss

103-1076-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA02AB0000000000000AA00M

Danfoss

103-1075-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA02AB0000000000000AA00M

Danfoss

103-1074-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA02AB0000000000000AA00M

Danfoss

103-1072-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA02AC0000000000000AA00M

Danfoss

103-1069-012

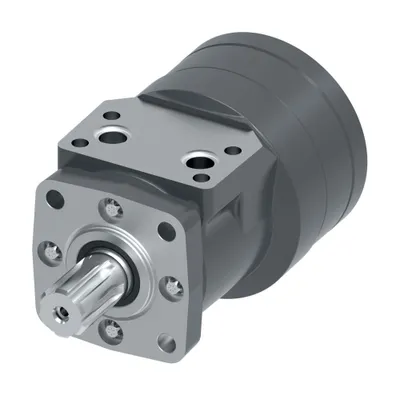

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA02AC0000000000000AA00M

Danfoss

103-1067-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA02AC0000000000000AA00M

Danfoss

103-1064-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA02AA0000000000000AJ00M

Danfoss

103-1063-012

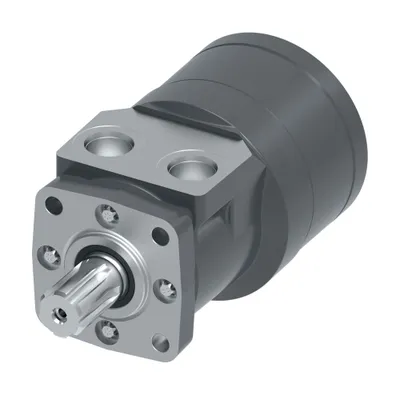

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA02AA0000000000000AA00M

Danfoss

103-1062-012

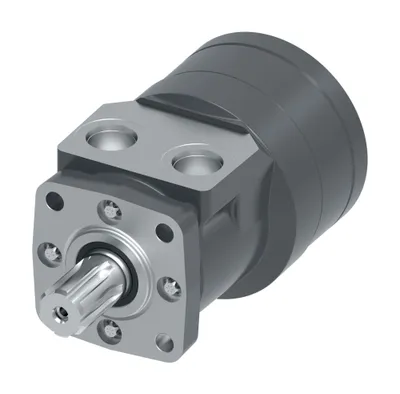

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA02AA0000000000000AA00M

Danfoss

103-1061-012

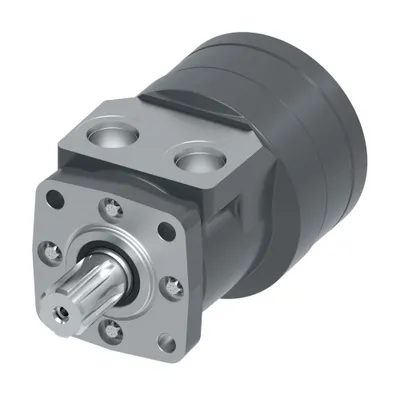

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA02AA0000000000000AA00M

Danfoss

103-1060-012

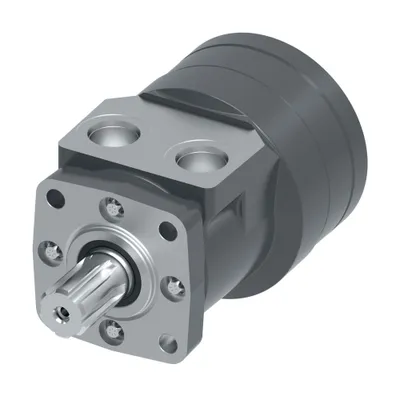

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA02AA0000000000000AA00M

Danfoss

103-1059-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA02AA0000000000000AA00M

Danfoss

103-1058-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA02AA0000000000000AA00M

Danfoss

103-1056-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA02AB0000000000000AA00M

Danfoss

103-1055-012

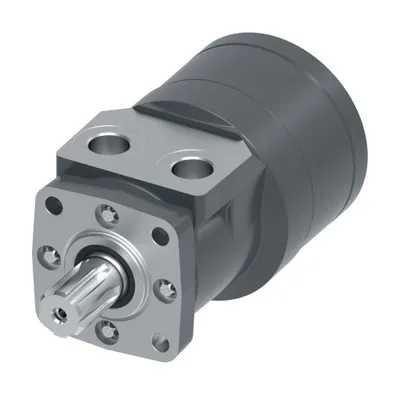

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA02AB0000000000000AA00M

Danfoss

103-1054-012

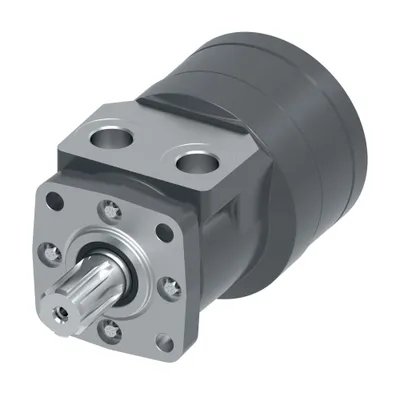

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA02AB0000000000000AA00M

Danfoss

103-1053-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA02AB0000000000000AA00M

Danfoss

103-1052-012

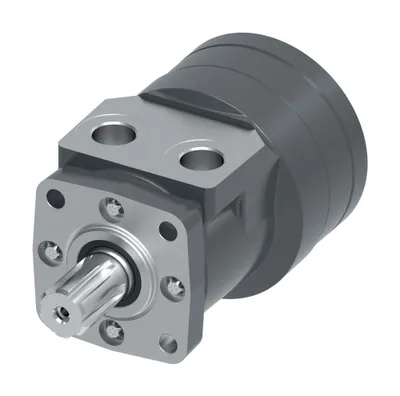

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA02AB0000000000000AA00M

Danfoss

103-1050-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA02AB0000000000000AA00M

Danfoss

103-1048-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AC0000000000000AA00M

Danfoss

103-1047-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA01AC0000000000000AA00M

Danfoss

103-1046-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AC0000000000000AA00M

Danfoss

103-1045-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA01AC0000000000000AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-1077-012	MS0114AA02AB0000000000000AA00M	185	186 [11.4]	NPT / NPTF	1/2 - 14 NPTF
103-1076-012	MS0101AA02AB0000000000000AA00M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-1075-012	MS0057AA02AB0000000000000AA00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-1074-012	MS0046AA02AB0000000000000AA00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1072-012	MS0227BA02AC0000000000000AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1069-012	MS0114BA02AC0000000000000AA00M	185	186 [11.4]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1067-012	MS0057BA02AC0000000000000AA00M	95	93 [5.7 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1064-012	MS0227BA02AA0000000000000AJ00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1063-012	MS0182BA02AA0000000000000AA00M	300	299 [18.2]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1062-012	MS0137BA02AA0000000000000AA00M	225	224 [13.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1061-012	MS0114BA02AA0000000000000AA00M	185	186 [11.4]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1060-012	MS0101BA02AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1059-012	MS0057BA02AA0000000000000AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1058-012	MS0046BA02AA0000000000000AA00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1056-012	MS0227BA02AB0000000000000AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-1055-012	MS0182BA02AB0000000000000AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-1054-012	MS0137BA02AB0000000000000AA00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF
103-1053-012	MS0114BA02AB0000000000000AA00M	185	186 [11.4]	NPT / NPTF	1/2 - 14 NPTF
103-1052-012	MS0101BA02AB0000000000000AA00M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-1050-012	MS0046BA02AB0000000000000AA00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1048-012	MS0227AA01AC0000000000000AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1047-012	MS0182AA01AC0000000000000AA00M	300	299 [18.2]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1046-012	MS0137AA01AC0000000000000AA00M	225	224 [13.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1045-012	MS0114AA01AC0000000000000AA00M	185	186 [11.4]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - aligned
Drain Port Dimension	None
Brake Release Port Dimension	n/a
