Danfoss orbital motor quick selector Parts

Danfoss

103-1411-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AA0000000000AB0AA00M

Danfoss

103-1408-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AB0000000000AB0AA00M

Danfoss

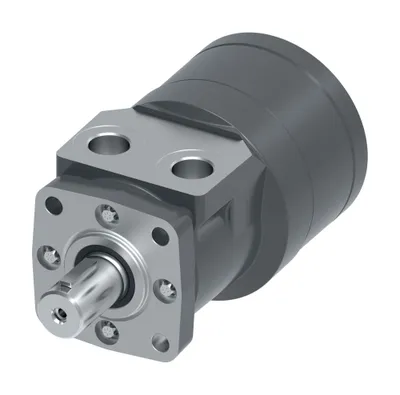

103-1407-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AB0000000000AB0AA00M

Danfoss

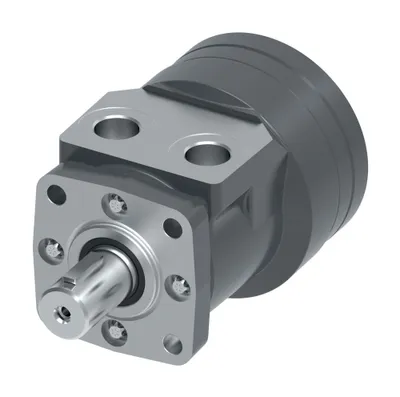

103-1403-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB0000000000AB0AA00M

Danfoss

103-1384-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA11AB0000000000000AA00M

Danfoss

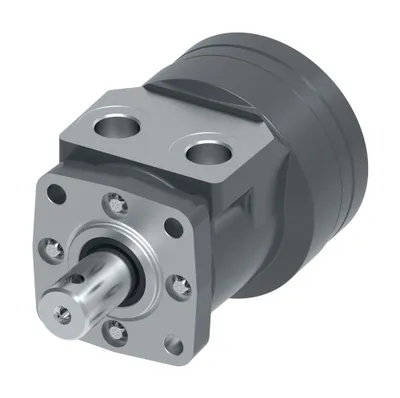

103-1369-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA07AB0000000000000AA00M

Danfoss

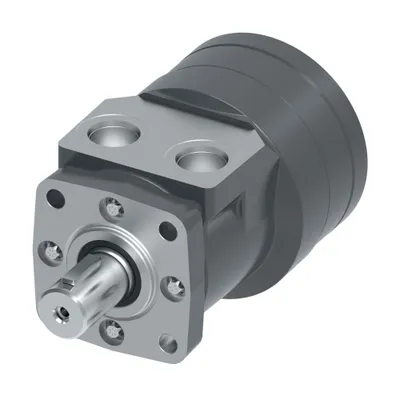

103-1267-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA11AA0000000000000AA00M

Danfoss

103-1266-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA11AB0000000000000AA00M

Danfoss

103-1096-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AC0000000000000AA00M

Danfoss

103-1094-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA02AC0000000000000AA00M

Danfoss

103-1093-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA02AC0000000000000AA00M

Danfoss

103-1092-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA02AC0000000000000AA00M

Danfoss

103-1091-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA02AC0000000000000AA00M

Danfoss

103-1090-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA02AC0000000000000AA00M

Danfoss

103-1088-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AA0000000000000AA00M

Danfoss

103-1087-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA02AA0000000000000AA00M

Danfoss

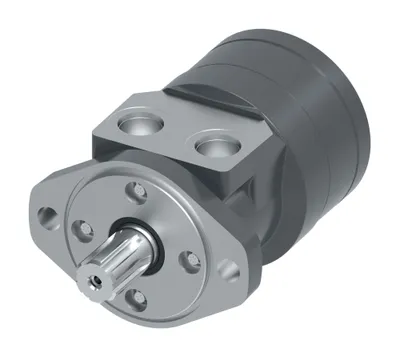

103-1086-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA02AA0000000000000AA00M

Danfoss

103-1085-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA02AA0000000000000AA00M

Danfoss

103-1084-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA02AA0000000000000AA00M

Danfoss

103-1083-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA02AA0000000000000AA00M

Danfoss

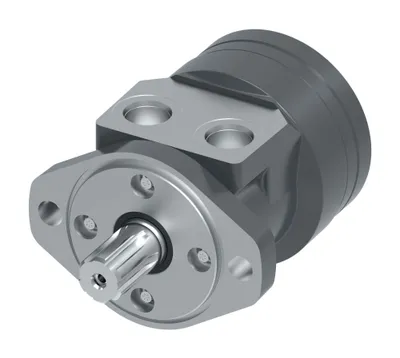

103-1082-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA02AA0000000000000AA00M

Danfoss

103-1080-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AB0000000000000AA00M

Danfoss

103-1079-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA02AB0000000000000AA00M

Danfoss

103-1078-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA02AB0000000000000AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-1411-012	MS0057BA01AA0000000000AB0AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1408-012	MS0227BA01AB0000000000AB0AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-1407-012	MS0182BA01AB0000000000AB0AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-1403-012	MS0057BA01AB0000000000AB0AA00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-1384-012	MS0182AA11AB0000000000000AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-1369-012	MS0046BA07AB0000000000000AA00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1267-012	MS0101BA11AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1266-012	MS0182BA11AB0000000000000AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-1096-012	MS0227AA02AC0000000000000AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1094-012	MS0137AA02AC0000000000000AA00M	225	224 [13.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1093-012	MS0114AA02AC0000000000000AA00M	185	186 [11.4]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1092-012	MS0101AA02AC0000000000000AA00M	165	165 [10.1]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1091-012	MS0057AA02AC0000000000000AA00M	95	93 [5.7 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1090-012	MS0046AA02AC0000000000000AA00M	75	76 [4.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1088-012	MS0227AA02AA0000000000000AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1087-012	MS0182AA02AA0000000000000AA00M	300	299 [18.2]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1086-012	MS0137AA02AA0000000000000AA00M	225	224 [13.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1085-012	MS0114AA02AA0000000000000AA00M	185	186 [11.4]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1084-012	MS0101AA02AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1083-012	MS0057AA02AA0000000000000AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1082-012	MS0046AA02AA0000000000000AA00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1080-012	MS0227AA02AB0000000000000AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-1079-012	MS0182AA02AB0000000000000AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-1078-012	MS0137AA02AB0000000000000AA00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
