Danfoss orbital motor quick selector Parts

Danfoss

103-1570-012

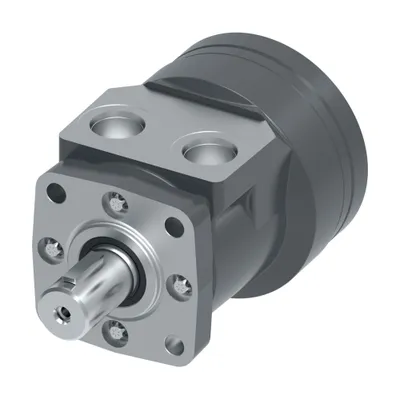

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA01AA0000000000000AA00M

Danfoss

103-1564-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA02AF0200000000000AA00M

Danfoss

103-1560-012

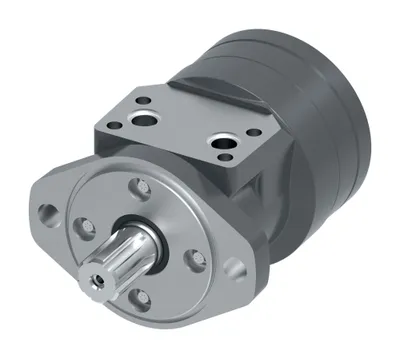

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA02AC0000000000000AA00M

Danfoss

103-1559-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA02AC0000000000000AA00M

Danfoss

103-1558-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA02AC0000000000000AA00M

Danfoss

103-1554-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA02AA0000000000000AA00M

Danfoss

103-1553-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA02AA0000000000000AA00M

Danfoss

103-1552-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA02AA0000000000000AA00M

Danfoss

103-1545-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA01AC0000000000000AA00M

Danfoss

103-1544-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA01AC0000000000000AA00M

Danfoss

103-1543-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AC0000000000000AA00M

Danfoss

103-1542-012

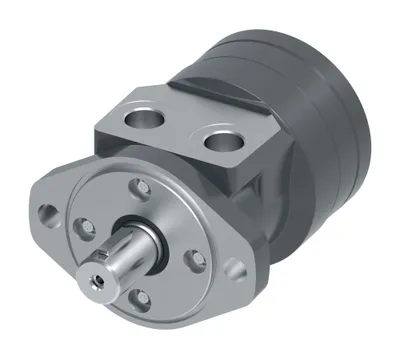

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA01AB0000000000000AA00M

Danfoss

103-1541-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA01AB0000000000000AA00M

Danfoss

103-1540-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AB0000000000000AA00M

Danfoss

103-1539-012

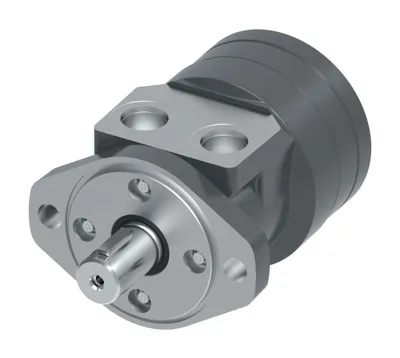

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA01AA0000000000000AA00M

Danfoss

103-1538-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA01AA0000000000000AA00M

Danfoss

103-1537-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AA0000000000000AA00M

Danfoss

103-1532-012

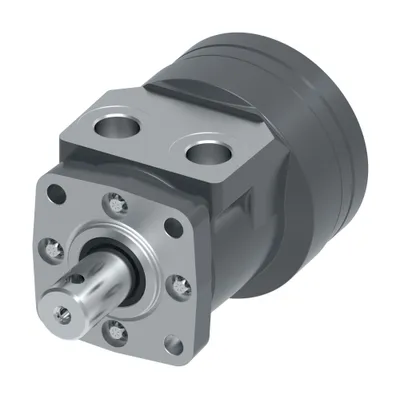

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA08AB0000000000000AA00M

Danfoss

103-1527-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AC0000000000AB0AA00M

Danfoss

103-1525-012

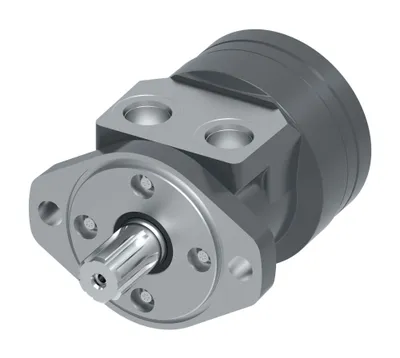

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA02AA0000000000AB0AA00M

Danfoss

103-1524-012

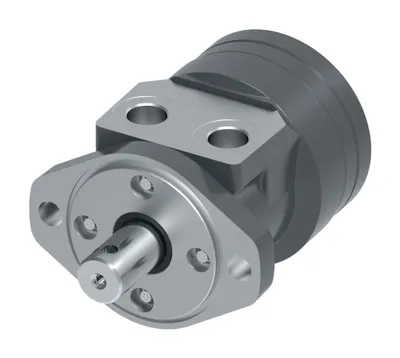

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA08AB0000000000000AA00M

Danfoss

103-1475-012

MOTOR-ORBITAL,S SERIES 300 (18.2), MS0182AA24AD0200000000000AA00M

Danfoss

103-1469-012

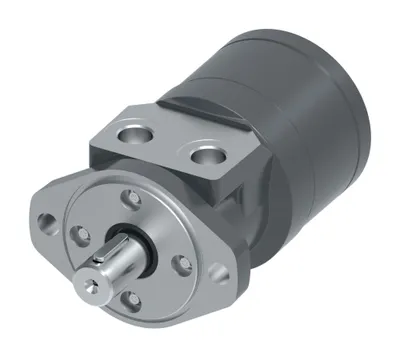

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA24AF0200000000000AA00M

Danfoss

103-1468-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA24AF0200000000000AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-1570-012	MS0036BA01AA0000000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1564-012	MS0036AA02AF0200000000000AA00M	60	58 [3.6 ]	BSP	G 1/2
103-1560-012	MS0088AA02AC0000000000000AA00M	145	144 [8.8]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1559-012	MS0073AA02AC0000000000000AA00M	120	120 [7.3]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1558-012	MS0036AA02AC0000000000000AA00M	60	58 [3.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1554-012	MS0088AA02AA0000000000000AA00M	145	144 [8.8]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1553-012	MS0073AA02AA0000000000000AA00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1552-012	MS0036AA02AA0000000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1545-012	MS0088AA01AC0000000000000AA00M	145	144 [8.8]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1544-012	MS0073AA01AC0000000000000AA00M	120	120 [7.3]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1543-012	MS0036AA01AC0000000000000AA00M	60	58 [3.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1542-012	MS0088AA01AB0000000000000AA00M	145	144 [8.8]	NPT / NPTF	1/2 - 14 NPTF
103-1541-012	MS0073AA01AB0000000000000AA00M	120	120 [7.3]	NPT / NPTF	1/2 - 14 NPTF
103-1540-012	MS0036AA01AB0000000000000AA00M	60	58 [3.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1539-012	MS0088AA01AA0000000000000AA00M	145	144 [8.8]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1538-012	MS0073AA01AA0000000000000AA00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1537-012	MS0036AA01AA0000000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1532-012	MS0046BA08AB0000000000000AA00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1527-012	MS0227AA02AC0000000000AB0AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1525-012	MS0046AA02AA0000000000AB0AA00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1524-012	MS0057AA08AB0000000000000AA00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-1475-012	MS0182AA24AD0200000000000AA00M	300	299 [18.2]	Manifold	4 x M8 x 1.25-6H mounting threads
103-1469-012	MS0227AA24AF0200000000000AA00M	370	371 [22.7]	BSP	G 1/2
103-1468-012	MS0182AA24AF0200000000000AA00M	300	299 [18.2]	BSP	G 1/2

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
