Danfoss 103-1468-012

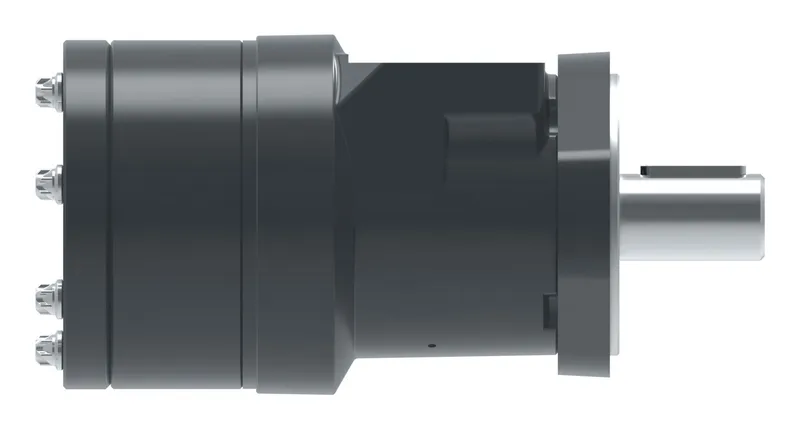

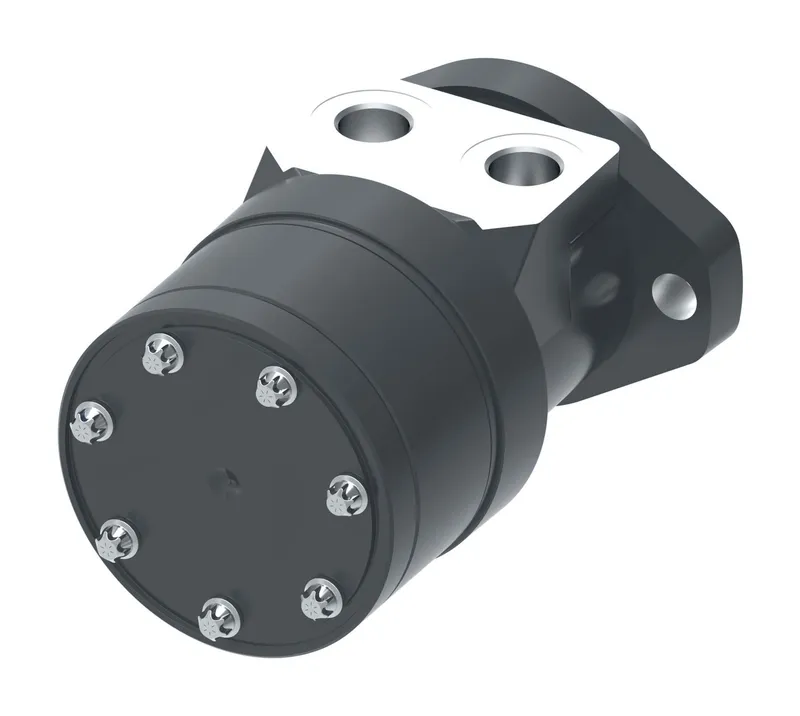

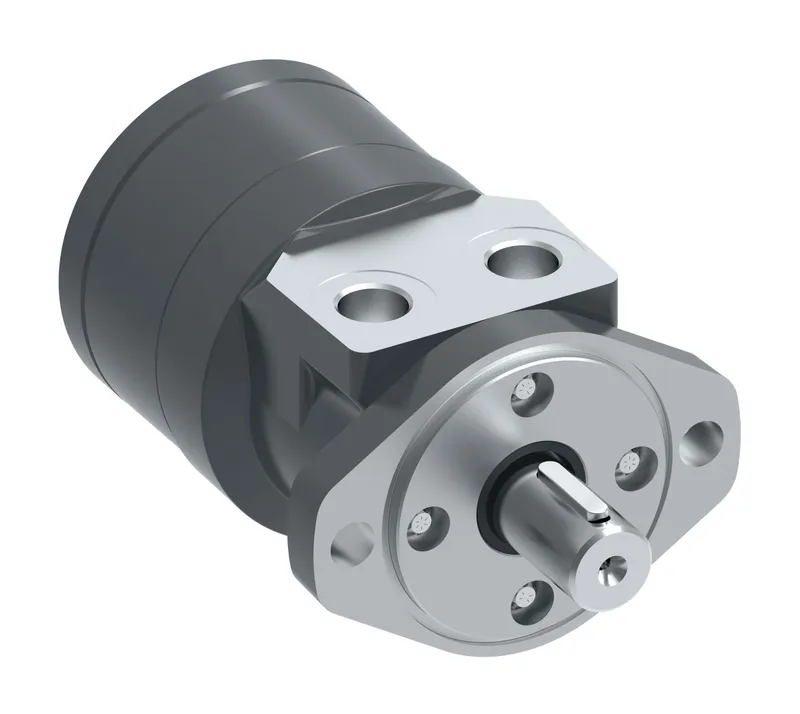

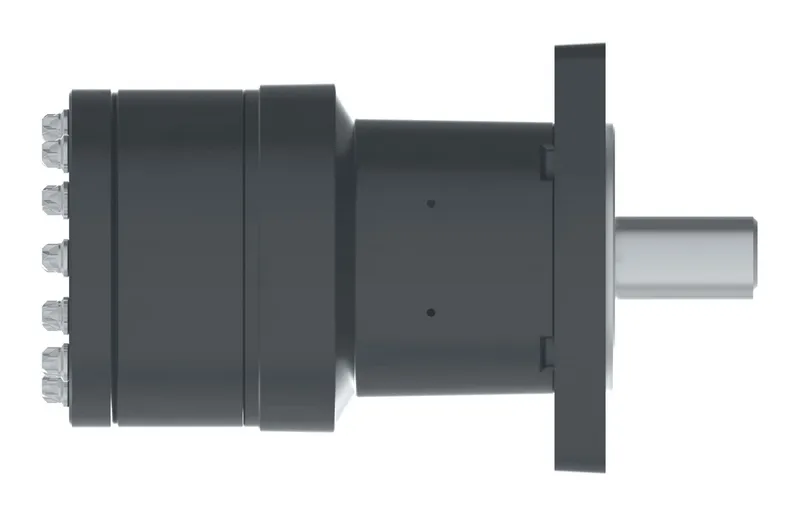

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA24AF0200000000000AA00M

MPN: 103-1468-012
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 103-1468-012?

Danfoss MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA24AF0200000000000AA00M, manufacturer part number 103-1468-012. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MS0182AA24AF0200000000000AA00M
Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor size	300
Geometric displacement [cm3/r [in3/r]]	299 [18.2]
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - A
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]
Shaft type	Straight
Shaft dimension	Dia. 25 mm, M8 x 1.25-6H thread in shaft end
Shaft Key	Rectangular key
Main port thread type	BSP
Main port style	Sideport - aligned
Main port dimension	G 1/2
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	No data available
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Design code	12
Brand	Danfoss
Sub brand	Char-Lynn
