Danfoss orbital motor quick selector Parts

Danfoss

103-1640-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073BA01AA0100000000000AA00M

Danfoss

103-1639-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA01AA0100000000000AA00M

Danfoss

103-1638-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA01AA0100000000000AA00M

Danfoss

103-1635-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AA0100000000000AA00M

Danfoss

103-1626-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073BA01AA0000000000AB0AA00M

Danfoss

103-1619-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AB00000000000000000M

Danfoss

103-1618-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AB00000000000000000M

Danfoss

103-1616-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AB00000000000000000M

Danfoss

103-1615-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB00000000000000000M

Danfoss

103-1614-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AB00000000000000000M

Danfoss

103-1613-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA16AA0000000000000AA00M

Danfoss

103-1608-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA24AF0200000000000AA00M

Danfoss

103-1607-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA24AF0200000000000AA00M

Danfoss

103-1606-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA24AF0200000000000AA00M

Danfoss

103-1592-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073FA01AF0200000000000AA00M

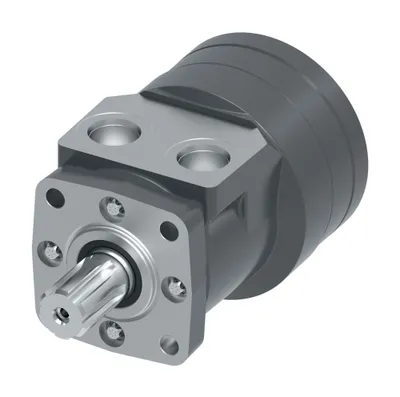

Danfoss

103-1581-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088BA02AA0000000000000AA00M

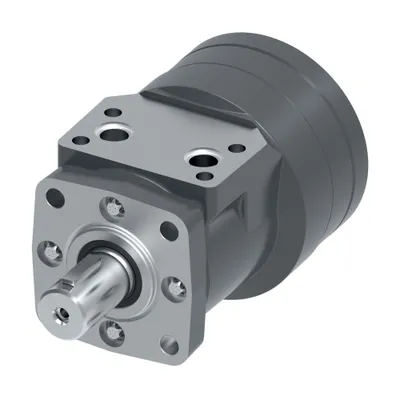

Danfoss

103-1578-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088BA01AC0000000000000AA00M

Danfoss

103-1577-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073BA01AC0000000000000AA00M

Danfoss

103-1576-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA01AC0000000000000AA00M

Danfoss

103-1575-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088BA01AB0000000000000AA00M

Danfoss

103-1574-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073BA01AB0000000000000AA00M

Danfoss

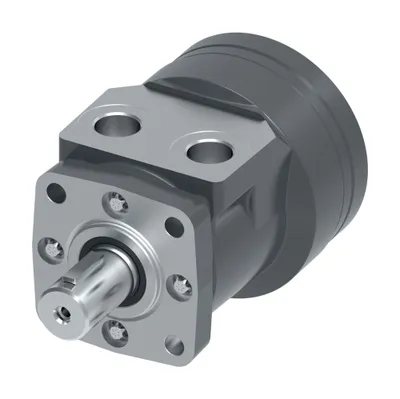

103-1573-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA01AB0000000000000AA00M

Danfoss

103-1572-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088BA01AA0000000000000AA00M

Danfoss

103-1571-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073BA01AA0000000000000AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-1640-012	MS0073BA01AA0100000000000AA00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1639-012	MS0073AA01AA0100000000000AA00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1638-012	MS0036BA01AA0100000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1635-012	MS0036AA01AA0100000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1626-012	MS0073BA01AA0000000000AB0AA00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1619-012	MS0046AA01AB00000000000000000M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1618-012	MS0227BA01AB00000000000000000M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-1616-012	MS0101BA01AB00000000000000000M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-1615-012	MS0057BA01AB00000000000000000M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-1614-012	MS0046BA01AB00000000000000000M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1613-012	MS0227AA16AA0000000000000AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1608-012	MS0088AA24AF0200000000000AA00M	145	144 [8.8]	BSP	G 1/2
103-1607-012	MS0073AA24AF0200000000000AA00M	120	120 [7.3]	BSP	G 1/2
103-1606-012	MS0036AA24AF0200000000000AA00M	60	58 [3.6 ]	BSP	G 1/2
103-1592-012	MS0073FA01AF0200000000000AA00M	120	120 [7.3]	BSP	G 1/2
103-1581-012	MS0088BA02AA0000000000000AA00M	145	144 [8.8]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1578-012	MS0088BA01AC0000000000000AA00M	145	144 [8.8]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1577-012	MS0073BA01AC0000000000000AA00M	120	120 [7.3]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1576-012	MS0036BA01AC0000000000000AA00M	60	58 [3.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-1575-012	MS0088BA01AB0000000000000AA00M	145	144 [8.8]	NPT / NPTF	1/2 - 14 NPTF
103-1574-012	MS0073BA01AB0000000000000AA00M	120	120 [7.3]	NPT / NPTF	1/2 - 14 NPTF
103-1573-012	MS0036BA01AB0000000000000AA00M	60	58 [3.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-1572-012	MS0088BA01AA0000000000000AA00M	145	144 [8.8]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-1571-012	MS0073BA01AA0000000000000AA00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
