Danfoss orbital motor quick selector Parts

Danfoss

103-3235-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AA00000000000000000M

Danfoss

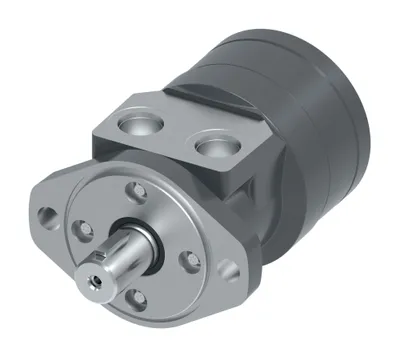

103-3233-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AA00000000000000000M

Danfoss

103-3228-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB00000000000000000M

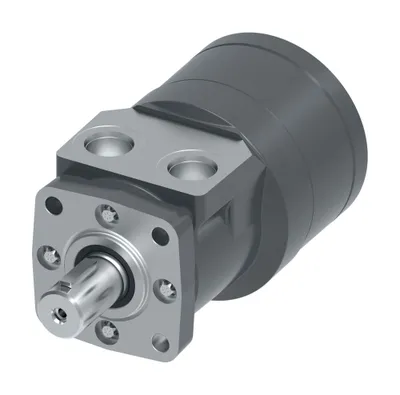

Danfoss

103-3224-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA01AA00000000000000000M

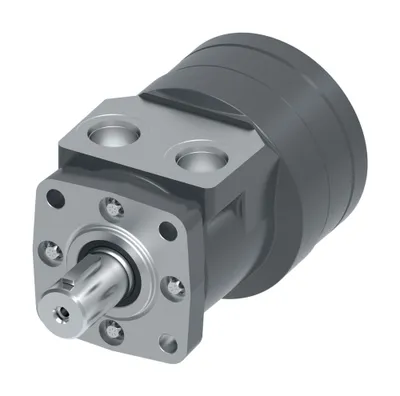

Danfoss

103-3222-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AA00000000000000000M

Danfoss

103-3221-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AA00000000000000000M

Danfoss

103-3218-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA16AB0000000000000AA00M

Danfoss

103-3214-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AB0000030000000AA00M

Danfoss

103-3191-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA16AA0000000000000AA00M

Danfoss

103-3188-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA07AA0000000000000AA00M

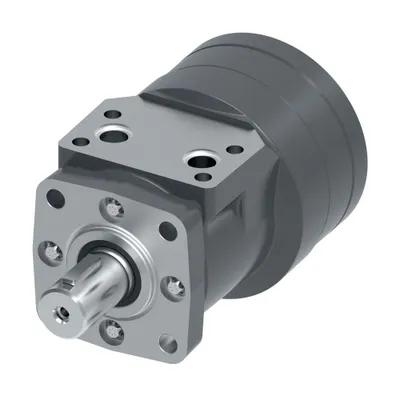

Danfoss

103-3181-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AC0000030000000AA00M

Danfoss

103-3177-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA24AA0000000000000AA00M

Danfoss

103-3172-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA02AF0000070000AB0AA00M

Danfoss

103-3163-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA16AF0200070000000AA00M

Danfoss

103-3158-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AA0000030000000AA00M

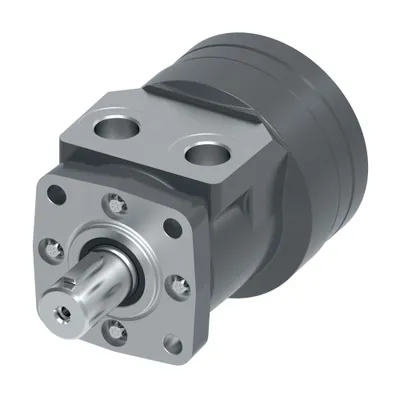

Danfoss

103-3137-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB0100070000000AA00M

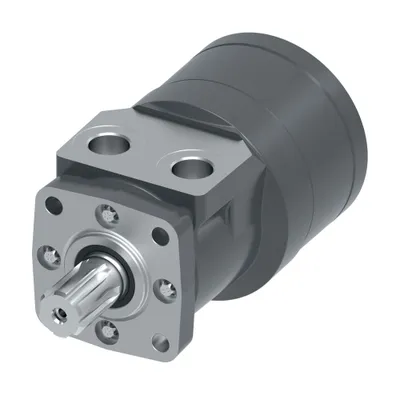

Danfoss

103-3125-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182BA02AB0000070000000AA00M

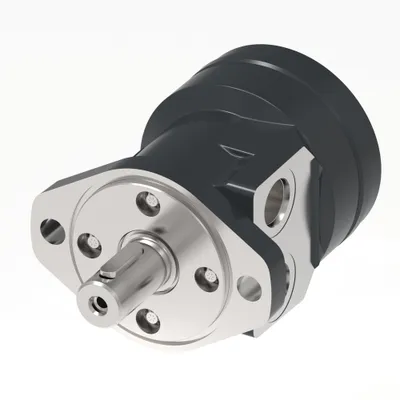

Danfoss

103-3123-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA24AF0000000000002AA00M

Danfoss

103-3106-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA16AA0000000000000AA00M

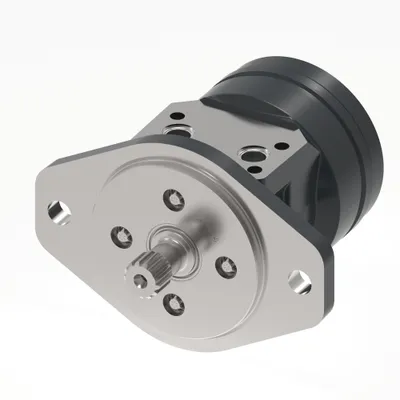

Danfoss

103-3097-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227DD16AC0000000000000AA00M

Danfoss

103-3092-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA16AA0000000000000AA00M

Danfoss

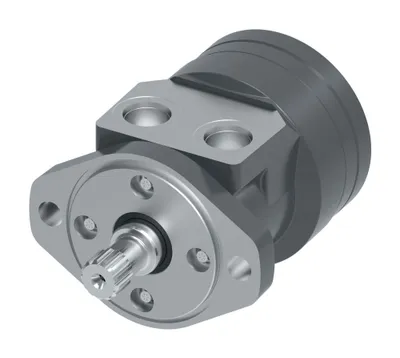

103-3091-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA16AA0100000000000AA00M

Danfoss

103-3085-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AN00000000AHAB0AA00M

Danfoss

103-3078-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AC0000070000AB0AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-3235-012	MS0227AA01AA00000000000000000M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3233-012	MS0137AA01AA00000000000000000M	225	224 [13.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3228-012	MS0227AA01AB00000000000000000M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-3224-012	MS0182BA01AA00000000000000000M	300	299 [18.2]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3222-012	MS0101BA01AA00000000000000000M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3221-012	MS0057BA01AA00000000000000000M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3218-012	MS0227AA16AB0000000000000AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-3214-012	MS0036AA01AB0000030000000AA00M	60	58 [3.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-3191-012	MS0036AA16AA0000000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3188-012	MS0101BA07AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3181-012	MS0101BA01AC0000030000000AA00M	165	165 [10.1]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-3177-012	MS0101AA24AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3172-012	MS0073AA02AF0000070000AB0AA00M	120	120 [7.3]	BSP	G 1/2
103-3163-012	MS0088AA16AF0200070000000AA00M	145	144 [8.8]	BSP	G 1/2
103-3158-012	MS0057AA01AA0000030000000AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3137-012	MS0057BA01AB0100070000000AA00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-3125-012	MS0182BA02AB0000070000000AA00M	300	299 [18.2]	NPT / NPTF	1/2 - 14 NPTF
103-3123-012	MS0227AA24AF0000000000002AA00M	370	371 [22.7]	BSP	G 1/2
103-3106-012	MS0046AA16AA0000000000000AA00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3097-012	MS0227DD16AC0000000000000AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-3092-012	MS0101AA16AA0000000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3091-012	MS0057AA16AA0100000000000AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3085-012	MS0227AA02AN00000000AHAB0AA00M	370	371 [22.7]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
103-3078-012	MS0057AA01AC0000070000AB0AA00M	95	93 [5.7 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Dust seal	Standard
Front bearing type	Journal bearing
