Danfoss orbital motor quick selector Parts

Danfoss

103-3457-012

MOTOR-ORBITAL,S SERIES 120 [7.3], MS0073AA01AA0000070000000AY00M

Danfoss

103-3456-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AA0000070000000AY00M

Danfoss

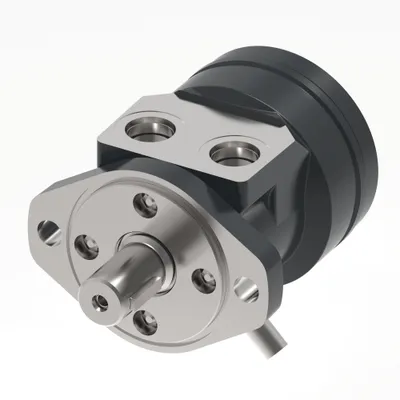

103-3453-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AA000000AA00000AA00M

Danfoss

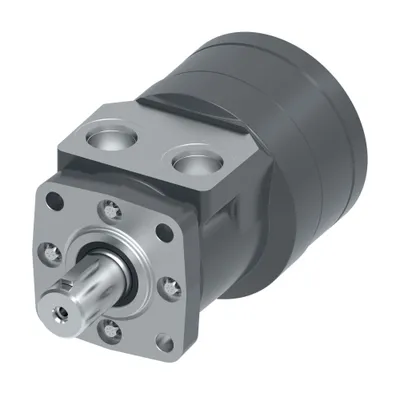

103-3451-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AA0000000000000AY00M

Danfoss

103-3449-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA24AF0200070000000AA00M

Danfoss

103-3440-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB0000000000AB0AY00M

Danfoss

103-3439-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AB0000000000AB0AY00M

Danfoss

103-3438-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AB0000000000000AY00M

Danfoss

103-3435-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137BA01AB0000000000000AY00M

Danfoss

103-3434-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA18AA0100000000000AA00M

Danfoss

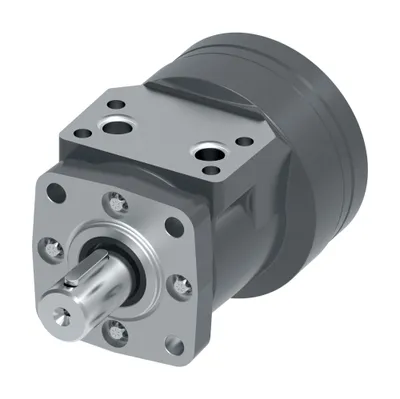

103-3432-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA24AC0000000000000AA00M

Danfoss

103-3428-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AA0000000000000AY00M

Danfoss

103-3416-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AA0000000000000AY00M

Danfoss

103-3414-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AA0000000000000AY00M

Danfoss

103-3412-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AB0000000000AB0AY00M

Danfoss

103-3411-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AB0000000000AB0AY00M

Danfoss

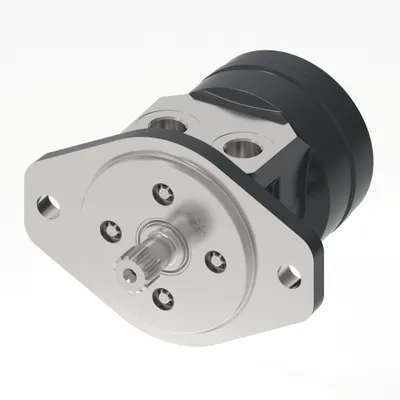

103-3400-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137DD02AB0000000000000AA00M

Danfoss

103-3399-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AA000000AB000000000M

Danfoss

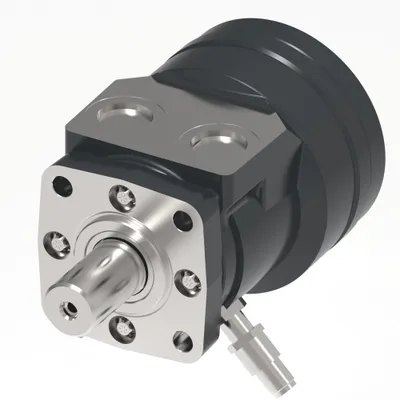

103-3398-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AA000000AB000000000M

Danfoss

103-3391-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AB0000000000000AY00M

Danfoss

103-3390-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AB0000030000000AY00M

Danfoss

103-3388-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AB0000030000000AY00M

Danfoss

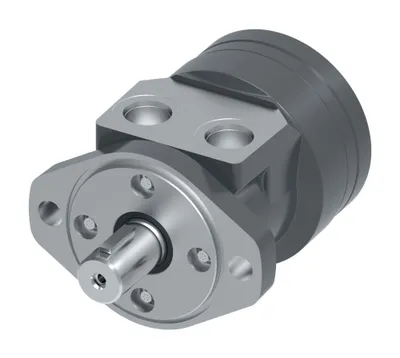

103-3387-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AA0000000000000AY00M

Danfoss

103-3386-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB0000030000000AY00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-3457-012	MS0073AA01AA0000070000000AY00M	120	120 [7.3]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3456-012	MS0101AA01AA0000070000000AY00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3453-012	MS0036AA01AA000000AA00000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3451-012	MS0137BA01AA0000000000000AY00M	225	224 [13.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3449-012	MS0182AA24AF0200070000000AA00M	300	299 [18.2]	BSP	G 1/2
103-3440-012	MS0227AA01AB0000000000AB0AY00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-3439-012	MS0101AA01AB0000000000AB0AY00M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-3438-012	MS0101AA01AB0000000000000AY00M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-3435-012	MS0137BA01AB0000000000000AY00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF
103-3434-012	MS0036BA18AA0100000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3432-012	MS0036BA24AC0000000000000AA00M	60	58 [3.6 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-3428-012	MS0227AA01AA0000000000000AY00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3416-012	MS0057BA01AA0000000000000AY00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3414-012	MS0057AA01AA0000000000000AY00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3412-012	MS0137AA01AB0000000000AB0AY00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF
103-3411-012	MS0057AA01AB0000000000AB0AY00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-3400-012	MS0137DD02AB0000000000000AA00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF
103-3399-012	MS0101BA01AA000000AB000000000M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3398-012	MS0057BA01AA000000AB000000000M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3391-012	MS0046AA01AB0000000000000AY00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-3390-012	MS0227BA01AB0000030000000AY00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-3388-012	MS0057AA01AB0000030000000AY00M	95	93 [5.7 ]	NPT / NPTF	1/2 - 14 NPTF
103-3387-012	MS0046AA01AA0000000000000AY00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-3386-012	MS0227AA01AB0000030000000AY00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
