Danfoss orbital motor quick selector Parts

Danfoss

103-2724-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036DD16AF0200000000000AA00M

Danfoss

103-2718-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046DD16AF02000000000000000M

Danfoss

103-2717-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA18AA0000000000000AA00M

Danfoss

103-2715-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA01AA0000030000000AA00M

Danfoss

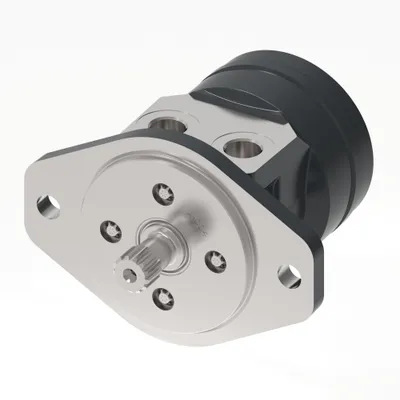

103-2706-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036DD16AA0100000000000AA00M

Danfoss

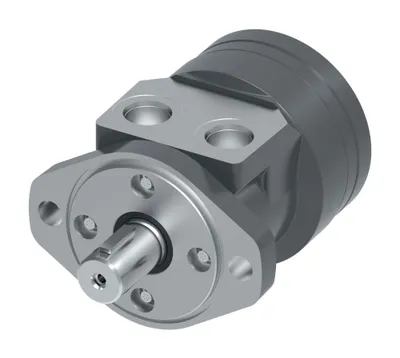

103-2699-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AA0000030000000AA00M

Danfoss

103-2692-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA02AA0000000000AB0AA00M

Danfoss

103-2691-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AA0100000000AB0AA00M

Danfoss

103-2687-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227DD16AA0000000000000AA00M

Danfoss

103-2100-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA16AC0100000000000AA00M

Danfoss

103-2099-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA16AC0100000000000AA00M

Danfoss

103-2088-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AA0100000000000AA00M

Danfoss

103-2084-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA02AA0100000000000AA00M

Danfoss

103-2080-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA02AB0100000000000AA00M

Danfoss

103-2056-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA02AB0100000000000AA00M

Danfoss

103-2046-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AC0100000000000AA00M

Danfoss

103-2040-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AA0100000000000AA00M

Danfoss

103-2037-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA01AA0100000000000AA00M

Danfoss

103-2035-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AA0100000000000AA00M

Danfoss

103-2030-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA01AB0100000000000AA00M

Danfoss

103-2028-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101AA01AB0100000000000AA00M

Danfoss

103-2026-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AB0100000000000AA00M

Danfoss

103-2024-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AC0100000000000AA00M

Danfoss

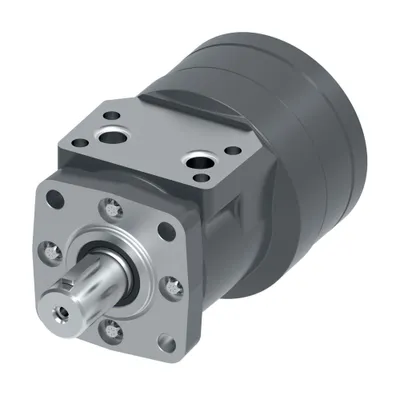

103-2021-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA01AC0100000000000AA00M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
103-2724-012	MS0036DD16AF0200000000000AA00M	60	58 [3.6 ]	BSP	G 1/2
103-2718-012	MS0046DD16AF02000000000000000M	75	76 [4.6 ]	BSP	G 1/2
103-2717-012	MS0088AA18AA0000000000000AA00M	145	144 [8.8]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2715-012	MS0036AA01AA0000030000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2706-012	MS0036DD16AA0100000000000AA00M	60	58 [3.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2699-012	MS0046AA01AA0000030000000AA00M	75	76 [4.6 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2692-012	MS0088AA02AA0000000000AB0AA00M	145	144 [8.8]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2691-012	MS0227AA01AA0100000000AB0AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2687-012	MS0227DD16AA0000000000000AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2100-012	MS0101AA16AC0100000000000AA00M	165	165 [10.1]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-2099-012	MS0057AA16AC0100000000000AA00M	95	93 [5.7 ]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-2088-012	MS0227AA02AA0100000000000AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2084-012	MS0101AA02AA0100000000000AA00M	165	165 [10.1]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2080-012	MS0227AA02AB0100000000000AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-2056-012	MS0227BA02AB0100000000000AA00M	370	371 [22.7]	NPT / NPTF	1/2 - 14 NPTF
103-2046-012	MS0137AA01AC0100000000000AA00M	225	224 [13.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-2040-012	MS0227AA01AA0100000000000AA00M	370	371 [22.7]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2037-012	MS0114AA01AA0100000000000AA00M	185	186 [11.4]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2035-012	MS0057AA01AA0100000000000AA00M	95	93 [5.7 ]	UN / UNF	7/8 - 14 UNF-2B SAE O-Ring port
103-2030-012	MS0137AA01AB0100000000000AA00M	225	224 [13.7]	NPT / NPTF	1/2 - 14 NPTF
103-2028-012	MS0101AA01AB0100000000000AA00M	165	165 [10.1]	NPT / NPTF	1/2 - 14 NPTF
103-2026-012	MS0046AA01AB0100000000000AA00M	75	76 [4.6 ]	NPT / NPTF	1/2 - 14 NPTF
103-2024-012	MS0227BA01AC0100000000000AA00M	370	371 [22.7]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads
103-2021-012	MS0114BA01AC0100000000000AA00M	185	186 [11.4]	Manifold	4 x 5/16 - 18 UNC-2B mounting threads

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
