Danfoss orbital motor quick selector Parts

Danfoss

103-3384-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227BA01AB0000000000000AY00M

Danfoss

103-3383-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AB0000000000000AY00M

Danfoss

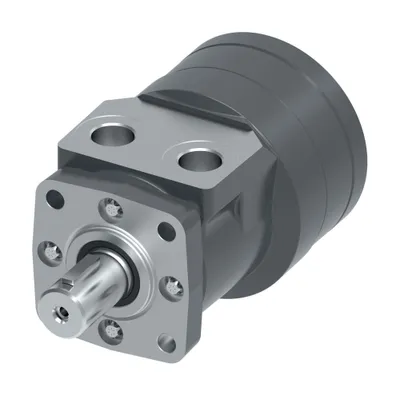

103-3382-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA01AB0000000000000AY00M

Danfoss

103-3381-012

MOTOR-ORBITAL,S SERIES 165 [10.1], MS0101BA01AB0000000000000AY00M

Danfoss

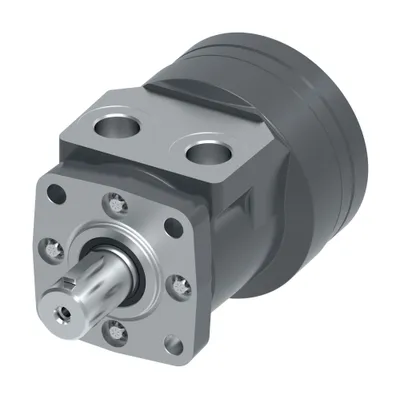

103-3380-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046BA01AB0000000000000AY00M

Danfoss

103-3379-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB0000000000000AY00M

Danfoss

103-3374-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088AA01AA0100000000000AA00M

Danfoss

103-3373-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA02AA0000000000AB0AA00M

Danfoss

103-3364-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114AA16AF0200070000000AA00M

Danfoss

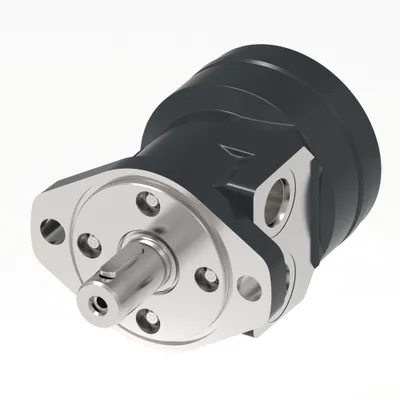

103-3354-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227AA01AA0100000000002AA00M

Danfoss

103-3349-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137AA16AB0000000000000AA00M

Danfoss

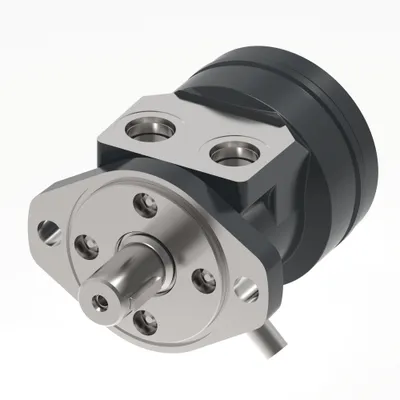

103-3348-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057AA01AA000000AA00000AA00M

Danfoss

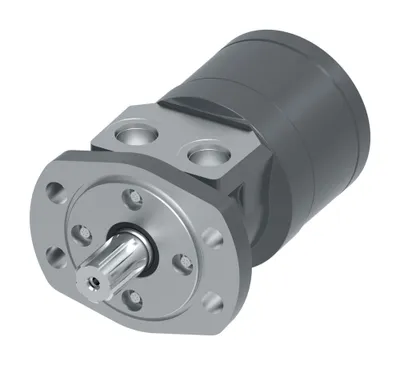

103-3344-012

MOTOR-ORBITAL,S SERIES 370 [22.7], MS0227EA02AA01000400000000000M

Danfoss

103-3336-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036AA24AF0200070000000AA00M

Danfoss

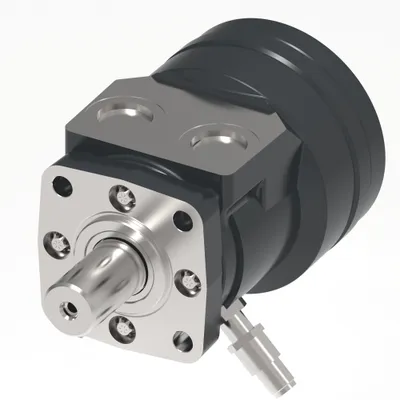

103-3324-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA01AB000000AE000000000M

Danfoss

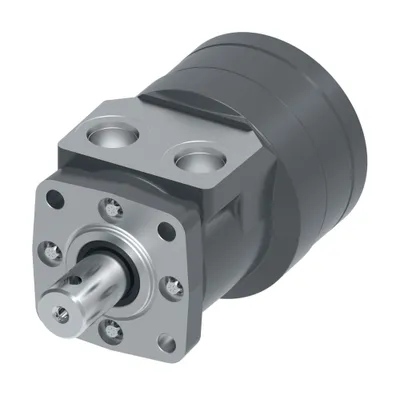

103-3323-012

MOTOR-ORBITAL,S SERIES 185 [11.4], MS0114BA20AA0000000000000AA00M

Danfoss

103-3306-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182AA16AA0000000000000AA00M

Danfoss

103-3305-012

MOTOR-ORBITAL,S SERIES 225 [13.7], MS0137DD16AA0000000000000AA00M

Danfoss

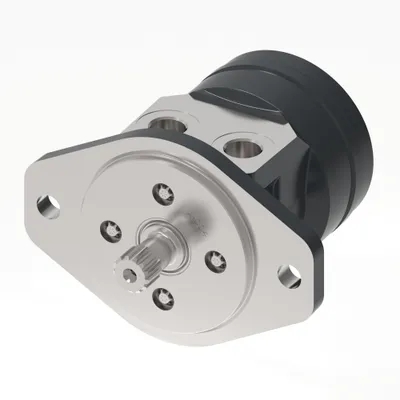

103-3304-012

MOTOR-ORBITAL,S SERIES 300 [18.2], MS0182DD16AA0000000000000AA00M

Danfoss

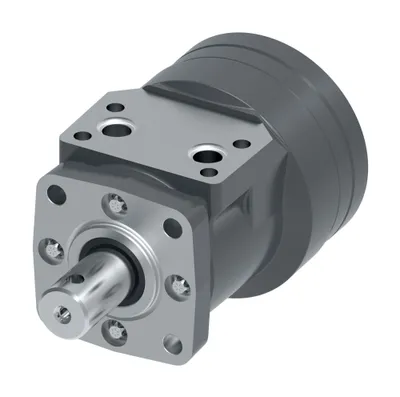

103-3281-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057BA08AC0000000000000AA00M

Danfoss

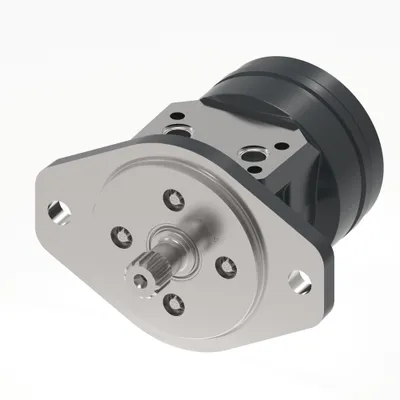

103-3271-012

MOTOR-ORBITAL,S SERIES 95 [5.7], MS0057DD02AC0000000000000AA00M

Danfoss

103-3247-012

MOTOR-ORBITAL,S SERIES 75 [4.6], MS0046AA01AB01000000000000000M

Danfoss

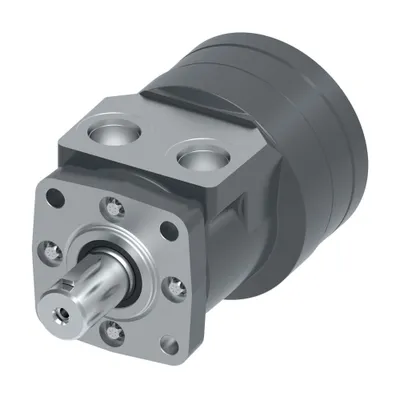

103-3241-012

MOTOR-ORBITAL,S SERIES 145 [8.8], MS0088BA01AA00000000000000000M

Danfoss

103-3239-012

MOTOR-ORBITAL,S SERIES 60 [3.6], MS0036BA01AA00000000000000000M

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port thread type
103-3384-012	MS0227BA01AB0000000000000AY00M	370	371 [22.7]	4 Bolt - Square	NPT / NPTF
103-3383-012	MS0227AA01AB0000000000000AY00M	370	371 [22.7]	2 Bolt - A	NPT / NPTF
103-3382-012	MS0114BA01AB0000000000000AY00M	185	186 [11.4]	4 Bolt - Square	NPT / NPTF
103-3381-012	MS0101BA01AB0000000000000AY00M	165	165 [10.1]	4 Bolt - Square	NPT / NPTF
103-3380-012	MS0046BA01AB0000000000000AY00M	75	76 [4.6 ]	4 Bolt - Square	NPT / NPTF
103-3379-012	MS0057BA01AB0000000000000AY00M	95	93 [5.7 ]	4 Bolt - Square	NPT / NPTF
103-3374-012	MS0088AA01AA0100000000000AA00M	145	144 [8.8]	2 Bolt - A	UN / UNF
103-3373-012	MS0182AA02AA0000000000AB0AA00M	300	299 [18.2]	2 Bolt - A	UN / UNF
103-3364-012	MS0114AA16AF0200070000000AA00M	185	186 [11.4]	2 Bolt - A	BSP
103-3354-012	MS0227AA01AA0100000000002AA00M	370	371 [22.7]	2 Bolt - A	UN / UNF
103-3349-012	MS0137AA16AB0000000000000AA00M	225	224 [13.7]	2 Bolt - A	NPT / NPTF
103-3348-012	MS0057AA01AA000000AA00000AA00M	95	93 [5.7 ]	2 Bolt - A	UN / UNF
103-3344-012	MS0227EA02AA01000400000000000M	370	371 [22.7]	4 Bolt - Magneto	UN / UNF
103-3336-012	MS0036AA24AF0200070000000AA00M	60	58 [3.6 ]	2 Bolt - A	BSP
103-3324-012	MS0057BA01AB000000AE000000000M	95	93 [5.7 ]	4 Bolt - Square	NPT / NPTF
103-3323-012	MS0114BA20AA0000000000000AA00M	185	186 [11.4]	4 Bolt - Square	UN / UNF
103-3306-012	MS0182AA16AA0000000000000AA00M	300	299 [18.2]	2 Bolt - A	UN / UNF
103-3305-012	MS0137DD16AA0000000000000AA00M	225	224 [13.7]	2 Bolt - B	UN / UNF
103-3304-012	MS0182DD16AA0000000000000AA00M	300	299 [18.2]	2 Bolt - B	UN / UNF
103-3281-012	MS0057BA08AC0000000000000AA00M	95	93 [5.7 ]	4 Bolt - Square	Manifold
103-3271-012	MS0057DD02AC0000000000000AA00M	95	93 [5.7 ]	2 Bolt - B	Manifold
103-3247-012	MS0046AA01AB01000000000000000M	75	76 [4.6 ]	2 Bolt - A	NPT / NPTF
103-3241-012	MS0088BA01AA00000000000000000M	145	144 [8.8]	4 Bolt - Square	UN / UNF
103-3239-012	MS0036BA01AA00000000000000000M	60	58 [3.6 ]	4 Bolt - Square	UN / UNF

Common to all listed parts

Motor Series	S Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Dust seal	Standard
Front bearing type	Journal bearing
