Danfoss orbital motor quick selector Parts

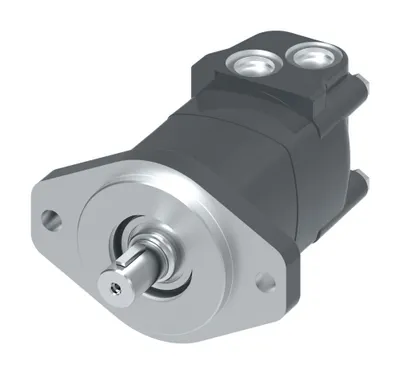

Danfoss

104-1737-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF01AA0100010000000ABAAF

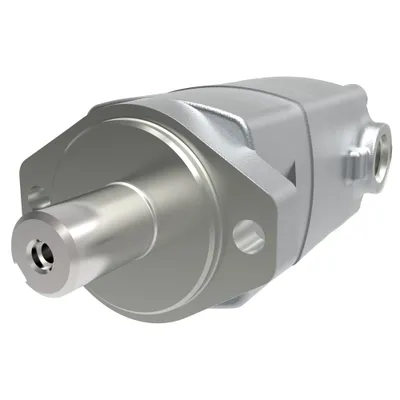

Danfoss

104-1730-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC02AF0100010AA0000AAAAF

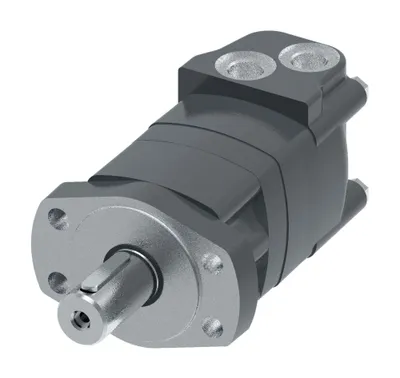

Danfoss

104-1729-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ16AG0200010000000ABAAF

Danfoss

104-1728-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC01AA01000100000AAAAAAF

Danfoss

104-1726-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AC04AE0200010000000AAAAF

Danfoss

104-1720-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH02AG0200010000000AAAAF

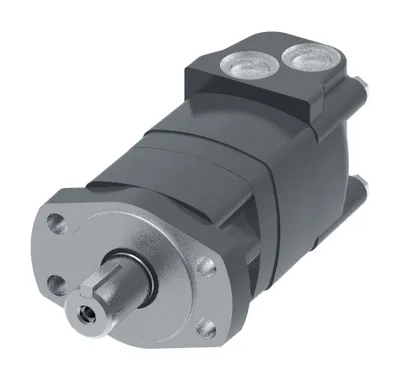

Danfoss

104-1717-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AJ02AA0100010AA0000AAAAF

Danfoss

104-1716-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC04AG0200010000000AAAAF

Danfoss

104-1702-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AH02AG0200030000000AAAAF

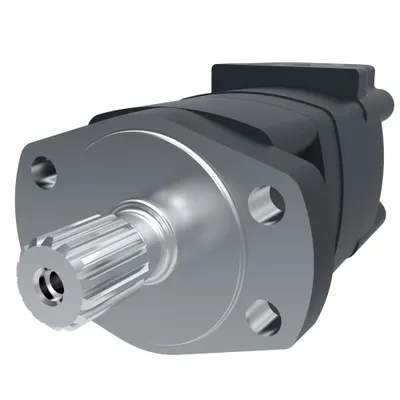

Danfoss

104-1701-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AJ04AA0100010000000ABAAF

Danfoss

104-1700-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AJ04AA0100010000000ABAAF

Danfoss

104-1690-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AJ02AG0200010000000AAAAF

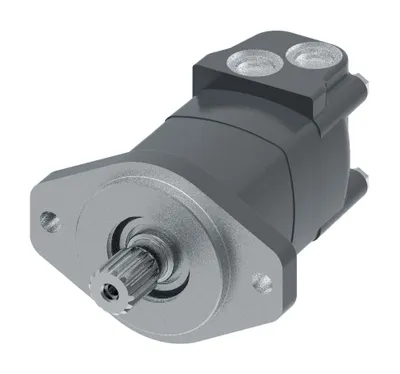

Danfoss

104-1682-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AF04AA0400010000000AAAAF

Danfoss

104-1675-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AC01AA01000100000AAAAAAF

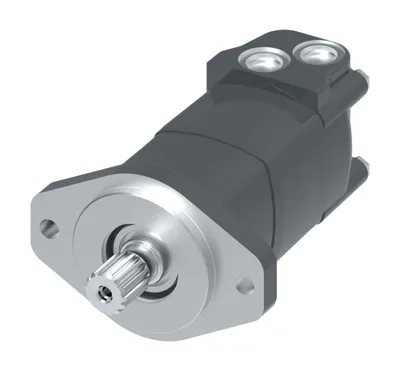

Danfoss

104-1674-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF04AA01000100000AAAAAAF

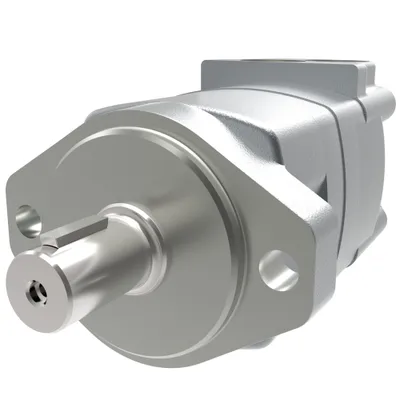

Danfoss

104-1671-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC01AA0100010000000ABAAF

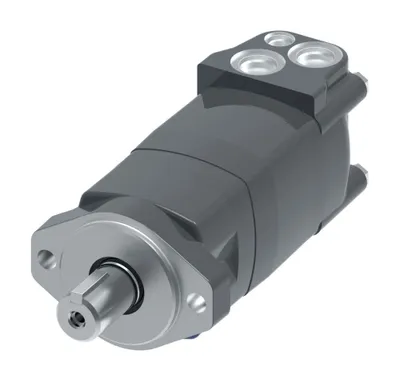

Danfoss

104-1666-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AC02AA0400010000000AAAAF

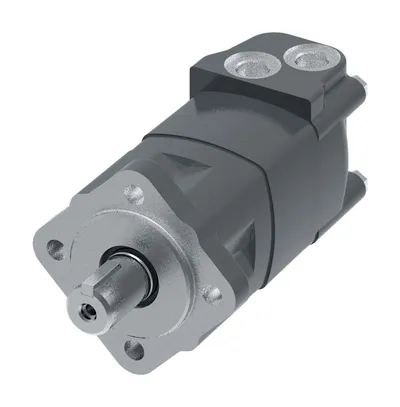

Danfoss

104-1662-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH02AG0200010000000AAAAF

Danfoss

104-1660-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AH04AG0200010000000ABAAF

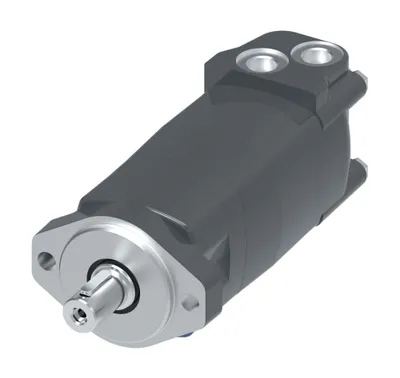

Danfoss

104-1655-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AC19AG0200010000000ABAAF

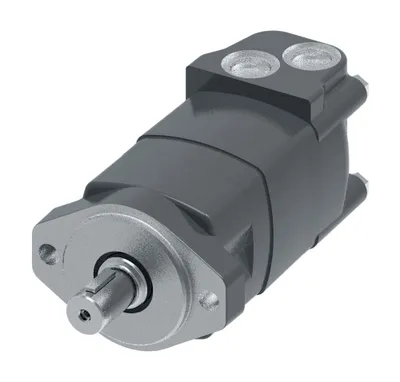

Danfoss

104-1654-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC01AA0100010AA0000AAAAF

Danfoss

104-1651-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC01AA0100010AA0000AAAAF

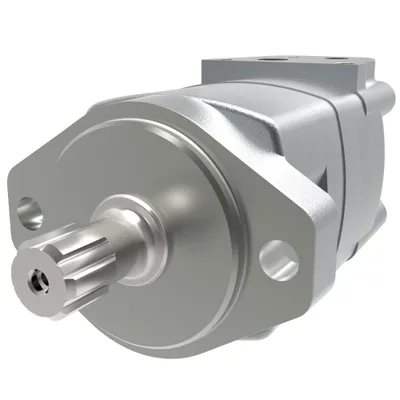

Danfoss

104-1649-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC05AB0100010000000AAAAF

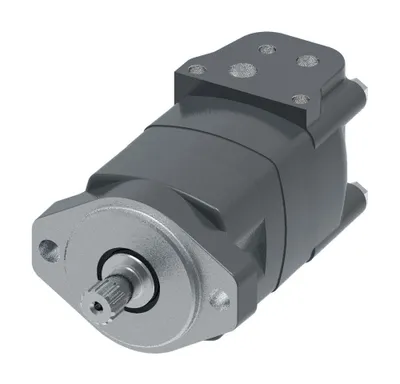

Danfoss

104-1646-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AC07AB0100010000000AAAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
104-1737-006	M02049AF01AA0100010000000ABAAF	80	80.6 [4.92]	2 Bolt - B	Woodruff key, 1/4 x 1 inch
104-1730-006	M02096AC02AF0100010AA0000AAAAF	160	158.1 [9.65]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1729-006	M02062AJ16AG0200010000000ABAAF	100	101.6 [6.20]	4 Bolt - Magneto	Rectangular key, 10 x 8 x 45 mm
104-1728-006	M02119AC01AA01000100000AAAAAAF	195	194.8 [11.89]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1726-006	M02096AC04AE0200010000000AAAAF	160	158.1 [9.65]	2 Bolt - A	n/a
104-1720-006	M02187AH02AG0200010000000AAAAF	305	306.6 [18.71]	4 Bolt - Square	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1717-006	M02096AJ02AA0100010AA0000AAAAF	160	158.1 [9.65]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1716-006	M02187AC04AG0200010000000AAAAF	305	306.6 [18.71]	2 Bolt - A	n/a
104-1702-006	M02187AH02AG0200030000000AAAAF	305	306.6 [18.71]	4 Bolt - Square	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1701-006	M02096AJ04AA0100010000000ABAAF	160	158.1 [9.65]	4 Bolt - Magneto	n/a
104-1700-006	M02049AJ04AA0100010000000ABAAF	80	80.6 [4.92]	4 Bolt - Magneto	n/a
104-1690-006	M02240AJ02AG0200010000000AAAAF	395	393.8 [24.03]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1682-006	M02062AF04AA0400010000000AAAAF	100	101.6 [6.20]	2 Bolt - B	n/a
104-1675-006	M02149AC01AA01000100000AAAAAAF	245	244.3 [14.91]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1674-006	M02149AF04AA01000100000AAAAAAF	245	244.3 [14.91]	2 Bolt - B	n/a
104-1671-006	M02062AC01AA0100010000000ABAAF	100	101.6 [6.20]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1666-006	M02187AC02AA0400010000000AAAAF	305	306.6 [18.71]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1662-006	M02119AH02AG0200010000000AAAAF	195	194.8 [11.89]	4 Bolt - Square	Square key, 5/16 x 5/16 x 1 1/4 inch
104-1660-006	M02298AH04AG0200010000000ABAAF	490	489.0 [29.84]	4 Bolt - Square	n/a
104-1655-006	M02240AC19AG0200010000000ABAAF	395	393.8 [24.03]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
104-1654-006	M02119AC01AA0100010AA0000AAAAF	195	194.8 [11.89]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1651-006	M02062AC01AA0100010AA0000AAAAF	100	101.6 [6.20]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-1649-006	M02062AC05AB0100010000000AAAAF	100	101.6 [6.20]	2 Bolt - A	n/a
104-1646-006	M02062AC07AB0100010000000AAAAF	100	101.6 [6.20]	2 Bolt - A	n/a

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Dust seal	Standard
Shaft Seal	NBR - Standard
