Danfoss orbital motor quick selector Parts

Showing 193–216 of 11,614 parts

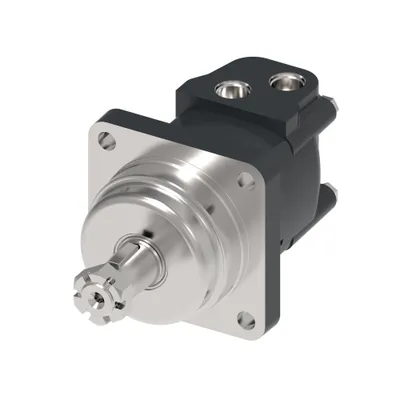

Danfoss 630AG00010A – MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AB03AA0100010000000ABAAB
Danfoss
630AG00010A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AB03AA0100010000000ABAAB

Danfoss 630AG00009A – MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AB03ZC9200010000000ABAAB
Danfoss
630AG00009A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AB03ZC9200010000000ABAAB

Danfoss 630AG00007A – MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AB03ZC9200010000000ABAAB
Danfoss
630AG00007A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AB03ZC9200010000000ABAAB

Danfoss 630AG00006A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AB03ZC9200010000000ABAAB
Danfoss
630AG00006A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AB03ZC9200010000000ABAAB

Danfoss 630AG00005A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AB03ZC9200010000000ABAAB
Danfoss
630AG00005A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AB03ZC9200010000000ABAAB

Danfoss 630AG00004A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AB03ZC9200010000000ABAAB
Danfoss
630AG00004A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AB03ZC9200010000000ABAAB

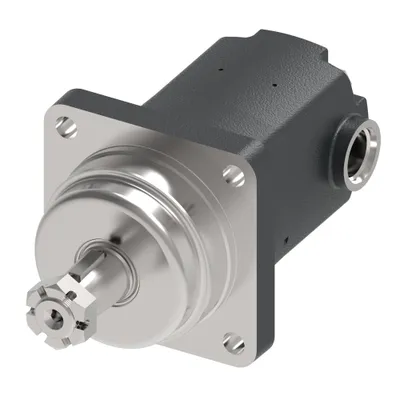

Danfoss 630AG00003A – MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AB03ZC9200010000000ABAAB
Danfoss
630AG00003A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AB03ZC9200010000000ABAAB

Danfoss 630AG00002A – MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AB03ZC9200010000000ABAAB
Danfoss
630AG00002A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AB03ZC9200010000000ABAAB

Danfoss 630AG00001A – MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AB03ZC9200010000000ABAAB
Danfoss
630AG00001A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AB03ZC9200010000000ABAAB

Danfoss 629AG00750A – MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC16AS02000100052ABABAAB​
Danfoss
629AG00750A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC16AS02000100052ABABAAB​

Danfoss 629AG00749A – MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC16AS02000100052ABABAAB​
Danfoss
629AG00749A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC16AS02000100052ABABAAB​

Danfoss 629AG00748A – MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC16AS02000100052ABABAAB​
Danfoss
629AG00748A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC16AS02000100052ABABAAB​

Danfoss 629AG00747A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC16AS02000100052ABABAAB​
Danfoss
629AG00747A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC16AS02000100052ABABAAB​

Danfoss 629AG00746A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC16AS02000100052ABABAAB​
Danfoss
629AG00746A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC16AS02000100052ABABAAB​

Danfoss 629AG00745A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC16AS02000100052ABABAAB​
Danfoss
629AG00745A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC16AS02000100052ABABAAB​

Danfoss 629AG00744A – MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC16AS02000100052ABABAAB​
Danfoss
629AG00744A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC16AS02000100052ABABAAB​

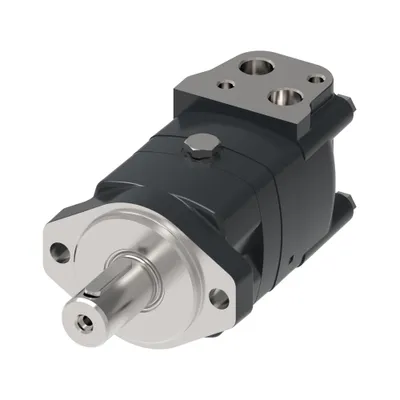

Danfoss 629AG00743A – MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC16AS02000100052ABABAAB​
Danfoss
629AG00743A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC16AS02000100052ABABAAB​

Danfoss 629AG00742A – MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC16AS02000100052ABABAAB​
Danfoss
629AG00742A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC16AS02000100052ABABAAB​

Danfoss 629AG00741A – MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AH99AS02000100052ABABAAB​
Danfoss
629AG00741A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AH99AS02000100052ABABAAB​

Danfoss 629AG00740A – MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AH99AS02000100052ABABAAB​
Danfoss
629AG00740A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AH99AS02000100052ABABAAB​

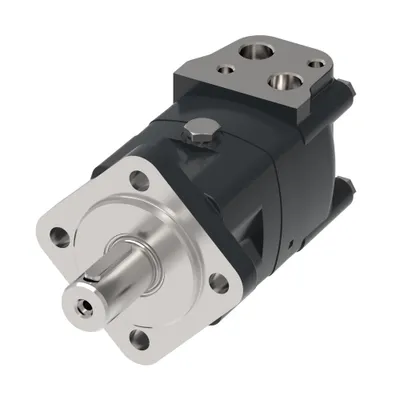

Danfoss 629AG00739A – MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH99AS02000100052ABABAAB​
Danfoss
629AG00739A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH99AS02000100052ABABAAB​

Danfoss 629AG00738A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH99AS02000100052ABABAAB​
Danfoss
629AG00738A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH99AS02000100052ABABAAB​

Danfoss 629AG00737A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH99AS02000100052ABABAAB​
Danfoss
629AG00737A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH99AS02000100052ABABAAB​

Danfoss 629AG00736A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH99AS02000100052ABABAAB​
Danfoss
629AG00736A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH99AS02000100052ABABAAB​

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Mounting flange typeShaft Key
630AG00010AMC2080AB03AA0100010000000ABAAB8080.1 [4.89]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00009AMC2490AB03ZC9200010000000ABAAB490487.8 [29.77]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00007AMC2305AB03ZC9200010000000ABAAB305305.7 [18.65]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00006AMC2245AB03ZC9200010000000ABAAB245243.9 [14.88]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00005AMC2195AB03ZC9200010000000ABAAB195194.5 [11.87]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00004AMC2160AB03ZC9200010000000ABAAB160157.7 [9.62]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00003AMC2130AB03ZC9200010000000ABAAB130130.5 [7.96]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00002AMC2100AB03ZC9200010000000ABAAB100101.3 [6.18]4 Bolt - WheelSquare key, 5/16 x 1 inch
630AG00001AMC2080AB03ZC9200010000000ABAAB8080.1 [4.89]4 Bolt - WheelSquare key, 5/16 x 1 inch
629AG00750AMC2490AC16AS02000100052ABABAAB​490487.8 [29.77]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00749AMC2395AC16AS02000100052ABABAAB​395393.0 [23.98]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00748AMC2305AC16AS02000100052ABABAAB​305305.7 [18.65]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00747AMC2245AC16AS02000100052ABABAAB​245243.9 [14.88]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00746AMC2195AC16AS02000100052ABABAAB​195194.5 [11.87]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00745AMC2160AC16AS02000100052ABABAAB​160157.7 [9.62]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00744AMC2130AC16AS02000100052ABABAAB​130130.5 [7.96]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00743AMC2100AC16AS02000100052ABABAAB​100101.3 [6.18]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00742AMC2080AC16AS02000100052ABABAAB​8080.1 [4.89]2 Bolt - ARectangular key, 10 x 8 x 45 mm
629AG00741AMC2490AH99AS02000100052ABABAAB​490487.8 [29.77]4 Bolt - Squaren/a
629AG00740AMC2395AH99AS02000100052ABABAAB​395393.0 [23.98]4 Bolt - Squaren/a
629AG00739AMC2305AH99AS02000100052ABABAAB​305305.7 [18.65]4 Bolt - Squaren/a
629AG00738AMC2245AH99AS02000100052ABABAAB​245243.9 [14.88]4 Bolt - Squaren/a
629AG00737AMC2195AH99AS02000100052ABABAAB​195194.5 [11.87]4 Bolt - Squaren/a
629AG00736AMC2160AH99AS02000100052ABABAAB​160157.7 [9.62]4 Bolt - Squaren/a

Common to all listed parts

Motor SeriesXL2 Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor functionStandard
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPainted, Black
Dust sealStandard
