SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — without load current share typical | Net Weight | control supply voltage at DC rated value | depth |
|---|---|---|---|---|---|

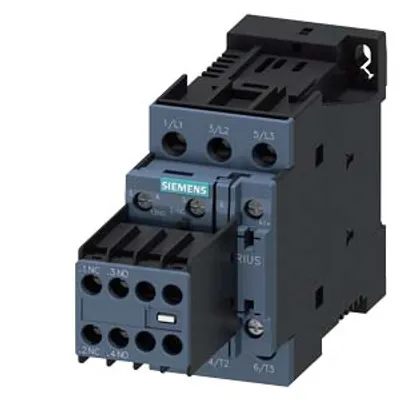

| 3RT2026-1BW44 | 5.7 W | 5.9 W | 626 g | 48 V | 151 mm |
| 3RT2026-1BW40 | 5.7 W | 5.9 W | 579.6 g | 48 V | 107 mm |
| 3RT2026-1BP40 | 5.7 W | 5.9 W | 572.68 g | 230 V | 107 mm |
| 3RT2026-1BM40 | 5.7 W | 5.9 W | 0.559 kg | 220 V | 107 mm |

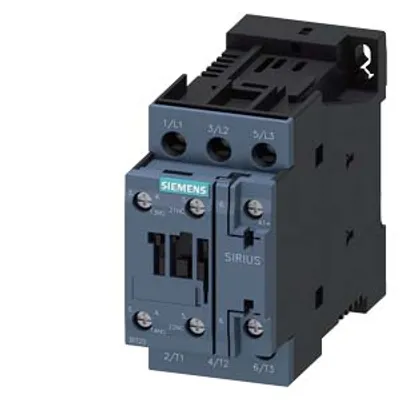

| 3RT2026-1BB40 | 5.7 W | 5.9 W | 583.68 g | 24 V | 107 mm |
| 3RT2026-1BA40 | 5.7 W | 5.9 W | 0.584 kg | 12 V | 107 mm |
| 3RT2016-2EP01-1AA0 | 0.9 W | 1.1 W | 0.241 kg | — | 117 mm |
| 3RT2016-2BF41 | 0.9 W | 4 W | 303.47 g | 110 V | 73 mm |
| 3RT2016-2BE42 | 0.9 W | 4 W | 0.302 kg | 60 V | 73 mm |
| 3RT2016-2BE41 | 0.9 W | 4 W | 0.299 kg | 60 V | 73 mm |
| 3RT2027-1AP60 | — | — | 411.5 g | — | 97 mm |
| 3RT2027-1AM20-1AA0 | — | — | 0.417 kg | — | 97 mm |
| 3RT2028-1AG20 | — | — | 0.403 kg | — | 97 mm |

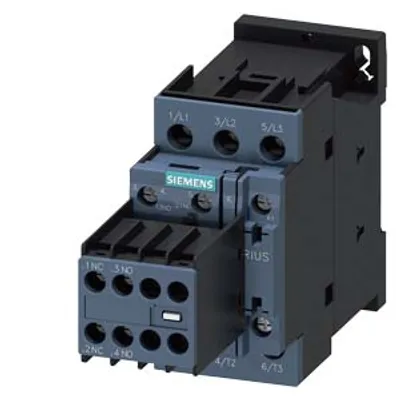

| 3RT2028-1AF04 | 9.6 W | 2.5 W | 0.474 kg | — | 141 mm |
| 3RT2027-2NP30 | 6.3 W | 1.9 W | 574.06 g | 200 ... 280 V | 107 mm |

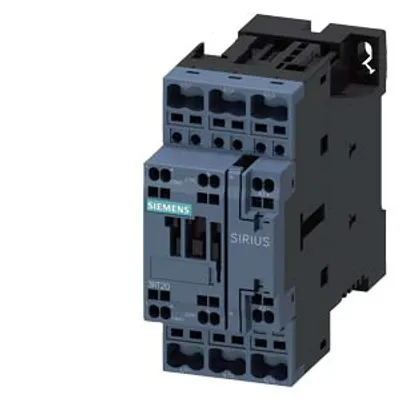

| 3RT2027-2NF30 | 6.3 W | 1.3 W | 0.566 kg | 95 ... 130 V | 107 mm |
| 3RT2027-2NB30 | 6.3 W | 1.4 W | 617.3 g | 21 ... 28 V | 107 mm |
| 3RT2026-2NP30 | 5.7 W | 1.9 W | 0.563 kg | 200 ... 280 V | 107 mm |
| 3RT2026-2NF30 | 5.7 W | 1.3 W | 570.33 g | 95 ... 130 V | 107 mm |
| 3RT2026-2BB40 | 5.7 W | 5.9 W | 617.98 g | 24 V | 107 mm |

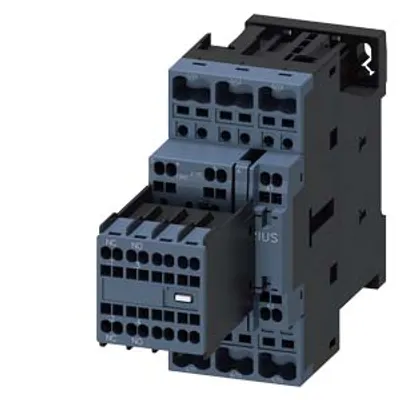

| 3RT2026-2AV04 | 5.7 W | 2.5 W | 0.47 kg | — | 144 mm |
| 3RT2025-1FB48-0ME2 | 1.8 W | 5.9 W | 0.652 kg | 24 V | 151 mm |
| 3RT2025-1FB48-0ME1 | 1.8 W | 5.9 W | 0.647 kg | 24 V | 151 mm |
| 3RT2025-1FB44-3MA0 | 1.8 W | 5.9 W | 644 g | 24 V | 151 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
