PSENmag for electronic/electromechanic relays Parts

Pilz

524128

PSEN 1.1a-22 /8mm/5m/ix1/1switch

Pilz

525122

PSEN 1.2p-22/8mm/ix1/ 1 switch

Pilz

524129

PSEN 1.1b-22/8mm /10m/ix1/1switch

Pilz

526121

PSEN ma1.3a-22/1switch

Pilz

524120

PSEN 1.1p-20/8mm/ 1 switch

Pilz

526120

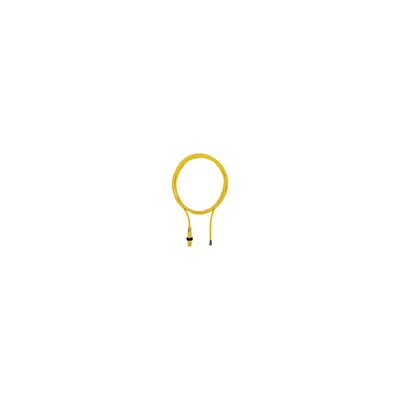

PSEN ma1.3a-20/1switch

Pilz

524127

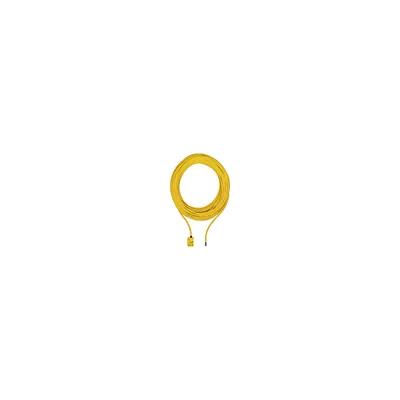

PSEN 1.1b-20 /8mm/10m/1switch

Pilz

516130

PSEN ma1.3-12/1actuator

Pilz

524126

PSEN 1.1a-20 /8mm/5m/1switch

Pilz

506231

PSEN ma1.3a-22/PSEN ma1.3-12/12mm/ix1/1u

Pilz

506230

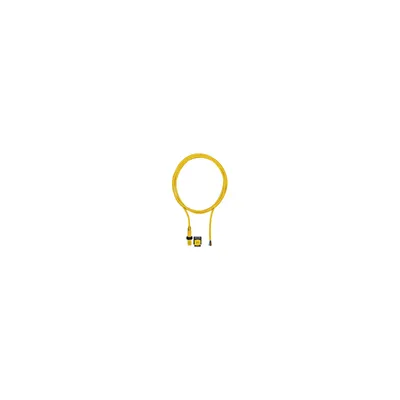

PSEN ma1.3a-20/PSEN ma1.3-12/12mm/1unit

Pilz

506233

PSEN ma1.3b-22/PSEN ma1.3-12/12mm/ix1/1u

Pilz

506232

PSEN ma1.3b-20/PSEN ma1.3-12/12mm/1unit

Pilz

506236

PSEN ma1.3p-20/PSEN ma1.3-12/12mm/1unit

Pilz

515120

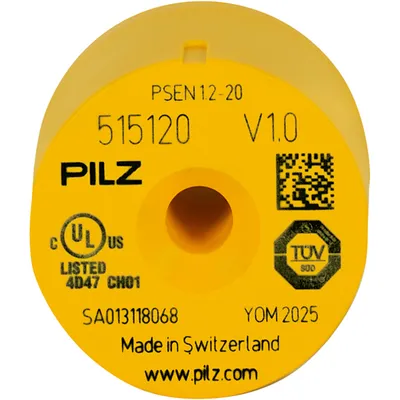

PSEN 1.2-20 / 1 actuator

Pilz

506227

PSEN ma1.3p-22/PSEN ma1.3-08/8mm/ix1/1un

Pilz

514120

PSEN 1.1-20 / 1 actuator

Pilz

506237

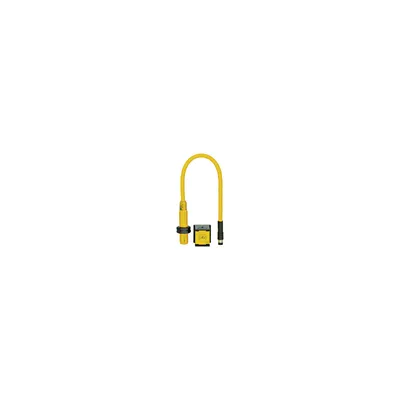

PSEN ma1.3p-22/PSEN ma1.3-12/12mm/ix1/1u

Pilz

516120

PSEN ma1.3-08/1actuator

Pilz

504227

PSEN 1.1b-20/PSEN 1.1-20/8mm/10m/1unit

Pilz

504228

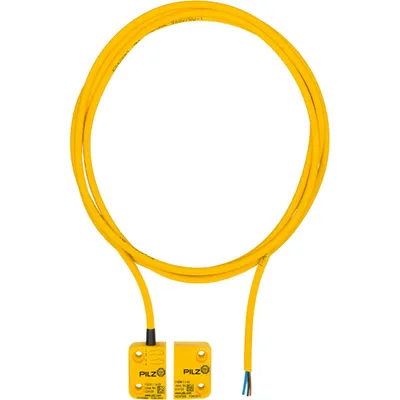

PSEN 1.1a-22/PSEN 1.1-20 /8mm/5m/ix1/1un

Pilz

504225

PSEN 1.1p-25/PSEN 1.1-20/8mm/ATEX/ix1

Pilz

506222

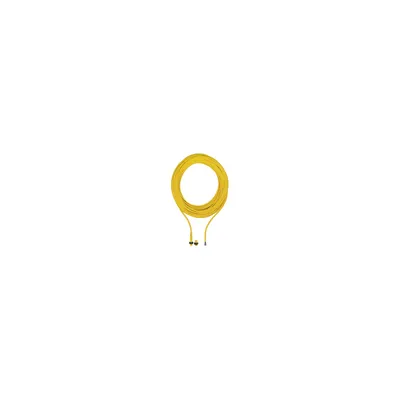

PSEN ma1.3b-20/PSEN ma1.3-08/8mm/1unit

Pilz

504226

PSEN 1.1a-20/PSEN 1.1-20 /8mm/5m/1unit

Compare PSENmag for electronic/electromechanic relays

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product ID (Pilz order number)	Depth dimension	Net weight	Gross weight	GTIN
524128	524128	13 mm	175 g	195 g	4046548026672
525122	525122	36 mm	19 g	27 g	4046548003178
524129	524129	13 mm	340 g	360 g	4046548026696
526121	526121	59.1 mm	185 g	195 g	4046548049800
524120	524120	13 mm	14 g	25 g	4046548003222
526120	526120	59.1 mm	185 g	195 g	4046548049794
524127	524127	13 mm	320 g	341 g	4046548026658
516130	516130	20 mm	26 g	27 g	4046548049961
524126	524126	13 mm	150 g	188 g	4046548026641
506231	506231	59.1 mm	211 g	220 g	4046548049886
506230	506230	59.1 mm	211 g	220 g	4046548049879
506233	506233	59.1 mm	386 g	395 g	4046548049909
506232	506232	59.1 mm	386 g	395 g	4046548049893
506236	506236	59.1 mm	30 g	60 g	4046548049930
515120	515120	16 mm	20 g	21 g	4046548003376
506227	506227	59.1 mm	30 g	48 g	4046548067279
514120	514120	13 mm	12 g	18 g	4046548003383
506237	506237	59.1 mm	30 g	65 g	4046548049947
516120	516120	25 mm	10 g	11 g	4046548049954
504227	504227	13 mm	337 g	363 g	4046548046915
504228	504228	13 mm	192 g	210 g	4046548026665
504225	504225	13 mm	36 g	44 g	4046548003512
506222	506222	59.1 mm	371 g	380 g	4046548049817
504226	504226	13 mm	167 g	207 g	4046548026627

Common to all listed parts

Lifecycle	Active (current Pilz product)
Vibration to standard ...	EN 60947-5-2
Acc. shock to standard1	30g
Pollution degree clear.&creep.	3
RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	no
REACh compliance	Contains no SVHC substances
