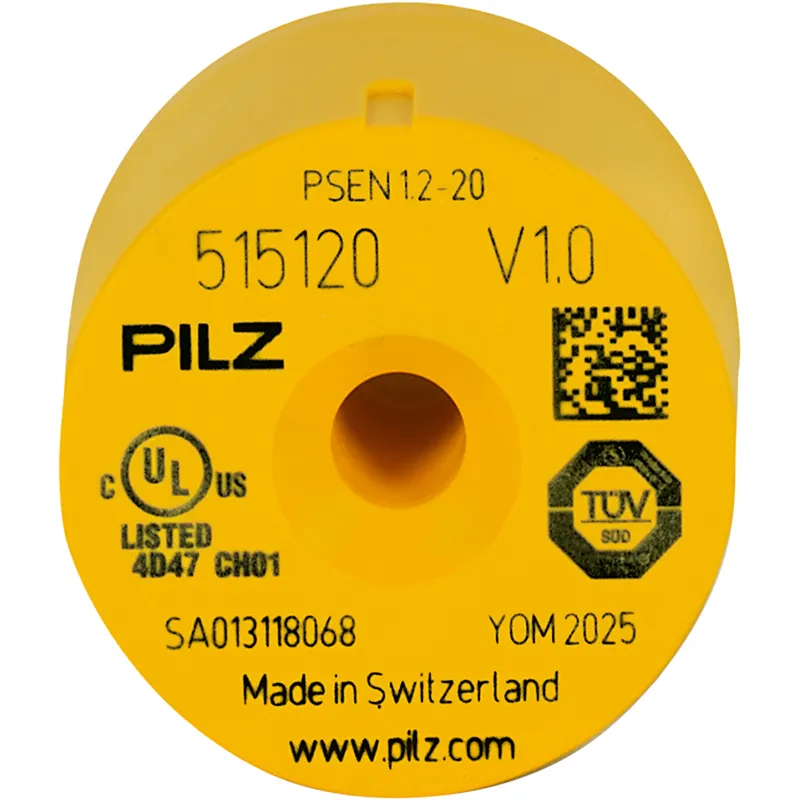

Pilz 515120
PSEN 1.2-20 / 1 actuator
- MPN
- 515120
- EAN
- 4046548003376
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 515120?
Actuator for magnetic safety switch, cylindrical design M30, IP67, operating distance depending on the actuator 8/12 mm, heightdesign 13 mm, PU = 1 actuator.
Specifications
General data
| Product ID (Pilz order number) | 515120 |
| Approval | CE, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| unit type | Actuator |
| Lifecycle | Active (current Pilz product) |
Environmental data
| ATEX category | II 3GD EEx nC IIC T6 |
| Ambient temperature | -25 °C |
| Max. ambient temp. at 2000 m | +70 °C |
| Perm. operating height ASL | 4000 m |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP65, IP67 |
Mechanical data
| Housing material upper part | PBT |
| Depth dimension | 16 mm |
| Net weight | 20 g |
| Gross weight | 21 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274002 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001487 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548003376 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (8)
- Type examination certificate (TÜV) M6A-020132-0223-R02
- Type examination certificate (KOSHA) 2013-241-(01-16)
- Certificate (UL) NRNT.E153882
- Certificate (UL) E153882
- Attestation (ECOLAB) Food Industry (PSENma1.x+2.x)
- Certificate (EAC) RU-C-DE-HB-B-03003-23
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
515120: frequently asked questions
When can 515120 be shipped?
515120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 515120 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 515120 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 515120, subject to availability and destination.
