Home / Pilz / PSENmag for electronic/electromechanic relays / Pilz 516130
Pilz

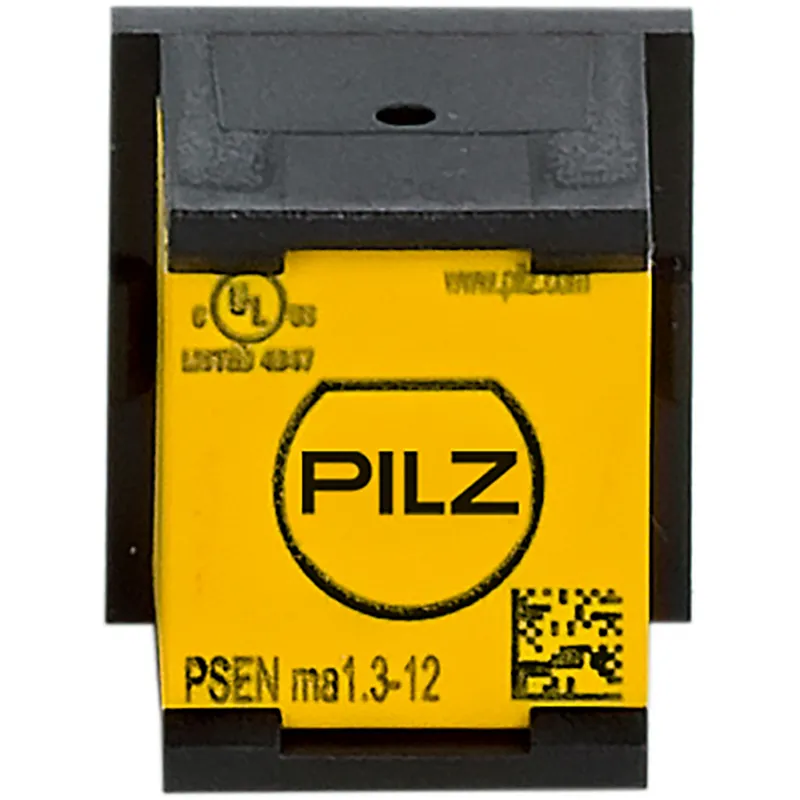

Pilz 516130

PSEN ma1.3-12/1actuator

MPN
516130
EAN
4046548049961
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 516130?

Actuator for magnetic safety switch, cuboid design, IP6K9K, operating distance 12 mm, height design 20 mm, PU = 1 actuator.

Specifications

General data

Product ID (Pilz order number)516130
ApprovalCE, UL/cUL, UKCA, cULus Listed, ECOLAB, EAC (Eurasian), TÜV
unit typeActuator
LifecycleActive (current Pilz product)

Environmental data

ATEX categoryII 3GD EEx nC IIC T6
Ambient temperature-25 °C
Max. ambient temp. at 2000 m+70 °C
Perm. operating height ASL4000 m
EMC to standard ...EN 60947-5-3
Vibration to standard ...EN 60947-5-2
Acc. shock to standard130g
Pollution degree clear.&creep.3
Protection type, housingIP65

Mechanical data

Housing material upper partPBT
Height dimension20 mm
Width dimension20 mm
Depth dimension20 mm
Net weight26 g
Gross weight27 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
REACh complianceContains no SVHC substances
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27274002
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC001487
UNSPSC 2539122205
GTIN4046548049961
Volume0 dm3
Harmonized System Code85389099
Quantity per packaging unit1

516130: frequently asked questions

When can 516130 be shipped?

516130 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 516130 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 516130 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 516130, subject to availability and destination.
