PSENmag for electronic/electromechanic relays Parts
Compare PSENmag for electronic/electromechanic relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Connection type | Net weight | Gross weight | GTIN |
|---|---|---|---|---|---|
| 506332 | 506332 | M8, 4-pin male | 51 g | 67 g | 4046548060478 |
| 506334 | 506334 | M8, 4-pin male | 53 g | 68 g | 4046548060492 |

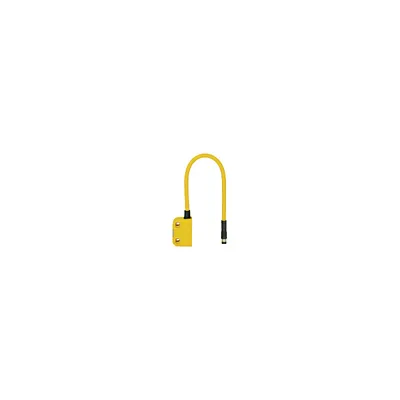

| 506310 | 506310 | M8, 8-pin male | 35 g | 47 g | 4046548060317 |
| 506302 | 506302 | 5 m cable | 180 g | 200 g | 4046548060232 |

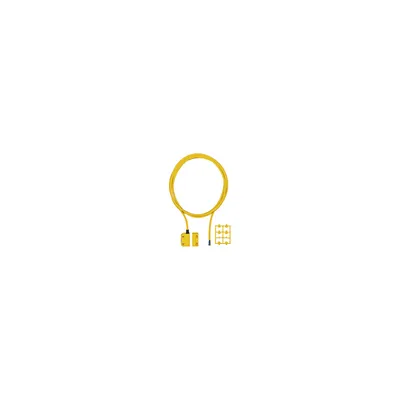

| 506323 | 506323 | 5 m cable | 198 g | 203 g | 4046548060386 |

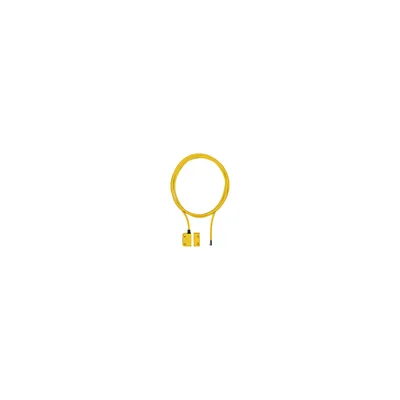

| 506321 | 506321 | 5 m cable | 196 g | 218 g | 4046548060362 |
| 506335 | 506335 | M8, 4-pin male | 53 g | 69 g | 4046548060508 |

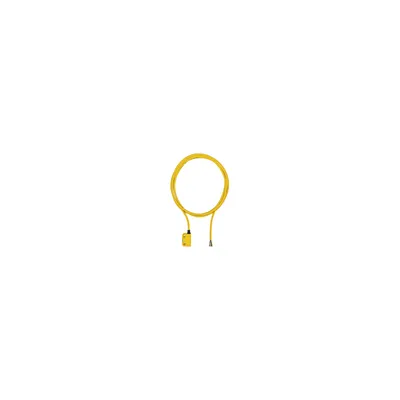

| 506305 | 506305 | 5 m cable | 220 g | 245 g | 4046548060263 |
| 506327 | 506327 | 5 m cable | 238 g | 259 g | 4046548060423 |

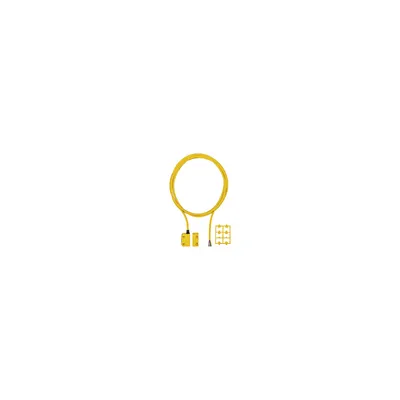

| 506324 | 506324 | 5 m cable | 236 g | 258 g | 4046548060393 |

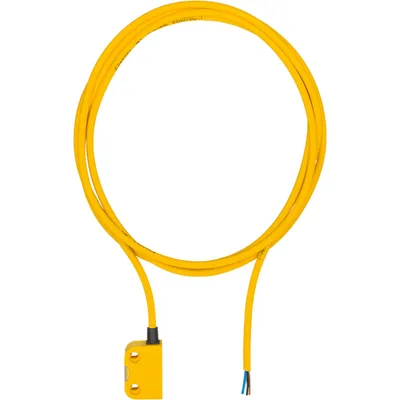

| 506304 | 506304 | 5 m cable | 220 g | 240 g | 4046548060256 |

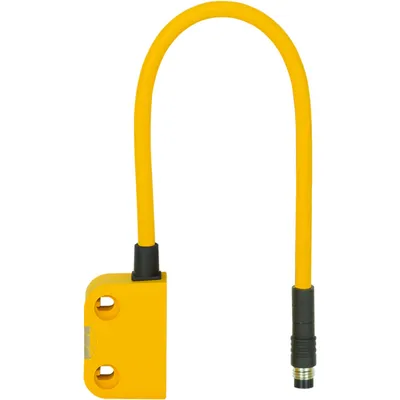

| 506308 | 506308 | M8, 4-pin male | 35 g | 48 g | 4046548060294 |

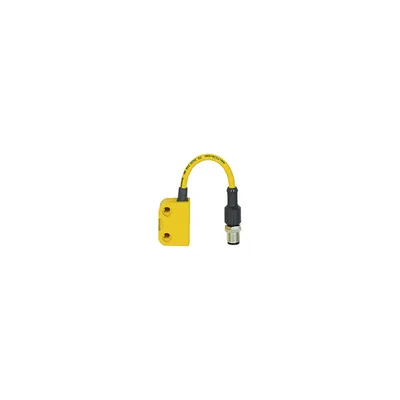

| 506313 | 506313 | M12, 5-pin male | 35 g | 60 g | 4046548060348 |

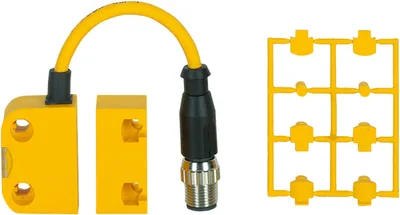

| 506340 | 506340 | M12, 5-pin male | 51 g | 82 g | 4046548060553 |

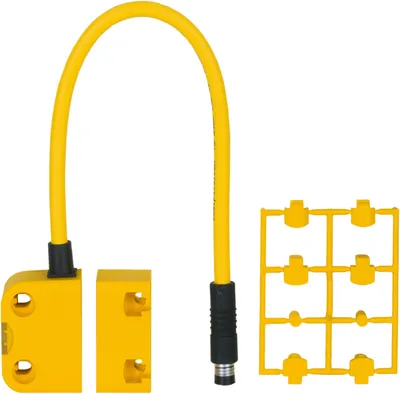

| 506338 | 506338 | M8, 8-pin male | 53 g | 69 g | 4046548060539 |
| 506341 | 506341 | M12, 5-pin male | 51 g | 88 g | 4046548060560 |

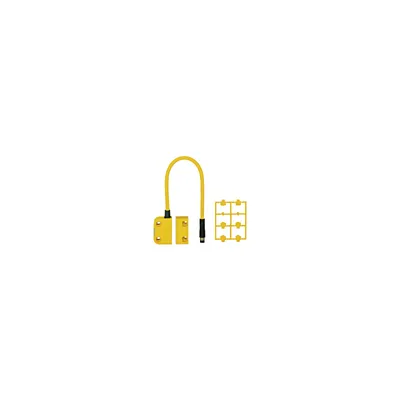

| 506336 | 506336 | M8, 8-pin male | 51 g | 66 g | 4046548060515 |
| 506333 | 506333 | M8, 4-pin male | 51 g | 66 g | 4046548060485 |

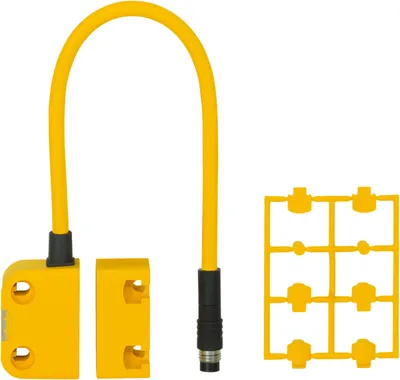

| 506339 | 506339 | M8, 8-pin male | 53 g | 68 g | 4046548060546 |
| 526127 | 526127 | M8, 8-pin male | 20 g | 38 g | 4046548049763 |
| 526126 | 526126 | M8, 8-pin male | 20 g | 35 g | 4046548049756 |
| 526123 | 526123 | 10 m cable | 360 g | 370 g | 4046548049848 |
| 526122 | 526122 | 10 m cable | 360 g | 370 g | 4046548049831 |

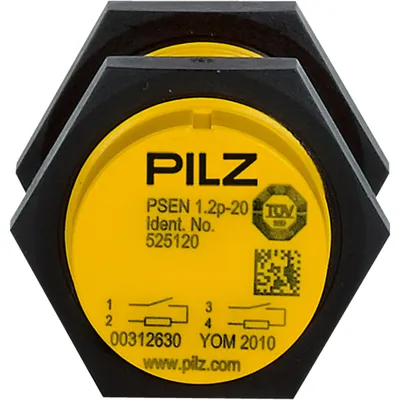

| 525120 | 525120 | M8, 4-pin male | 15 g | 43 g | 4046548003185 |
Common to all listed parts
| Sensor principle | magnetic |
| Coding level to ISO 14119 | Low |
| Classification to EN 60947-5-3 | PDDB |
| Lifecycle | Active (current Pilz product) |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Switching voltage | 24 |
| EMC to standard ... | EN 60947-5-3 |
