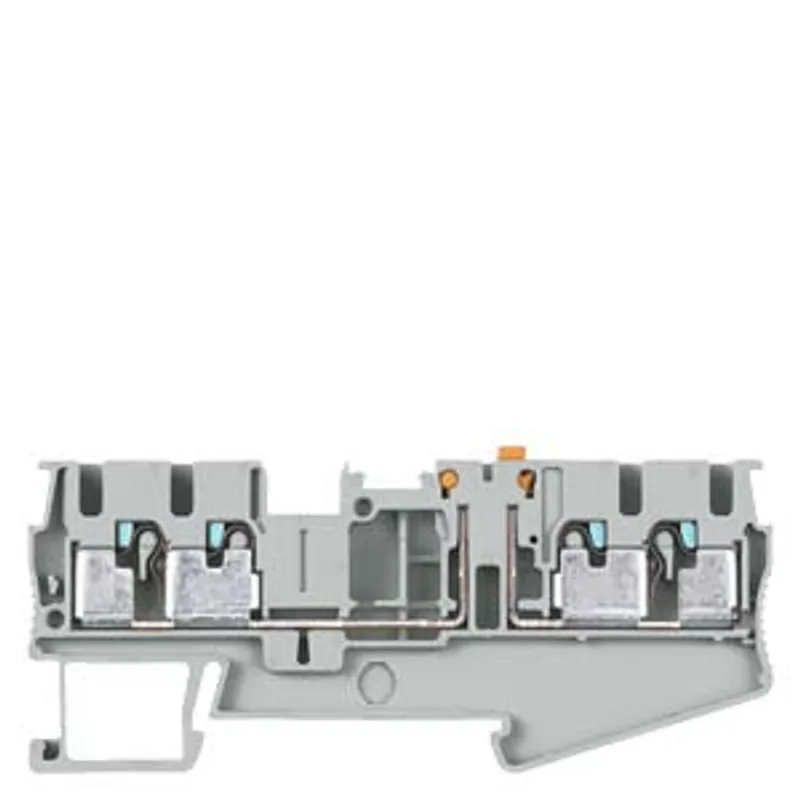

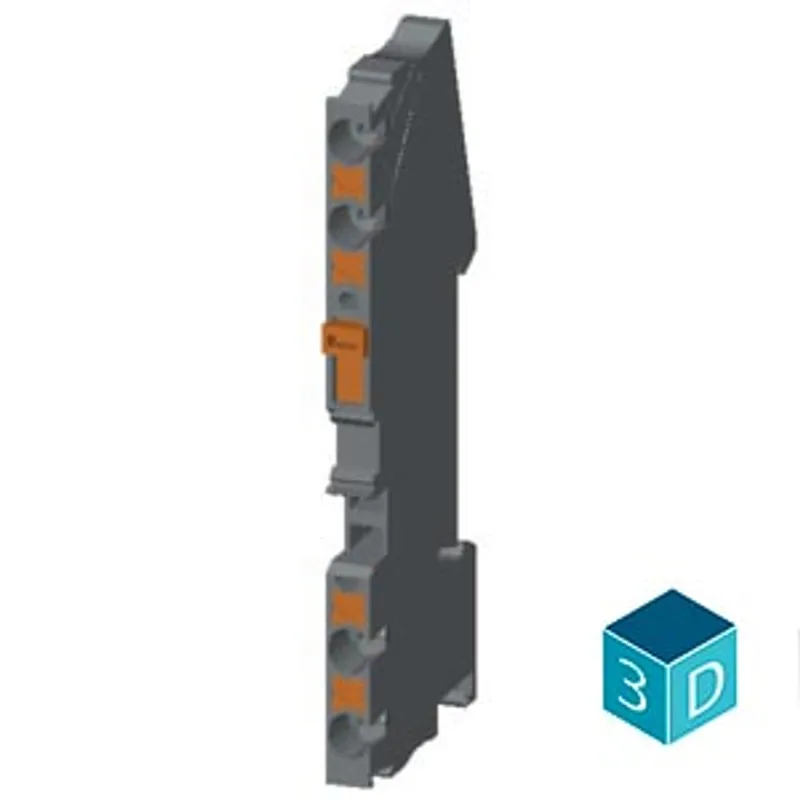

Siemens 8WH6004-6AF00
Terminal, iPo plug-in terminal, isolating terminal, 2.5 mm², gray
- MPN
- 8WH6004-6AF00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH6004-6AF00?
Terminal, iPo plug-in terminal, isolating terminal, 2.5 mm², gray
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | iPo isolating blade terminal |
| type of longitudinal separation | swivel-mounted |
| type of lateral separation | without |
General technical data
| insulation material | thermoplastic |
| terminal contact spacing | 5.2 mm |
| operating voltage rated value | 400 V |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 20 A |
Appearance
| color | grey |
Product details
| product component — test socket | Yes |
Number
| number of terminal levels | 1 |
| number of terminal points per terminal level | 4 |
Connections
| connectable conductor cross-section solid — minimum | 0.14 mm² |
| connectable conductor cross-section solid — maximum | 4 mm² |
| connectable conductor cross-section stranded — minimum | 1.5 mm² |
| connectable conductor cross-section stranded — maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.14 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.14 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 4 mm² |
| type of connection 1 | plug-in terminal connection |
| type of connection 2 | plug-in terminal connection |
| position of the terminal | top |

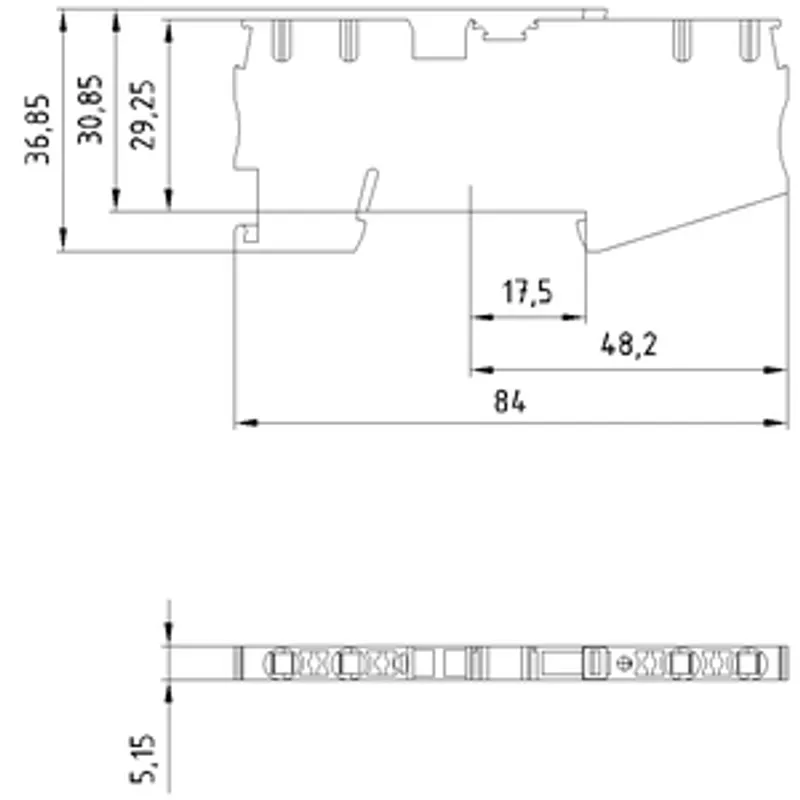

Mechanical Design
| height with lowest-profile installation | 84.03 mm |
| depth | 36.5 mm |
| length | 84 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 11 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | -60 °C |
| ambient temperature during operation — maximum | -105 °C |
