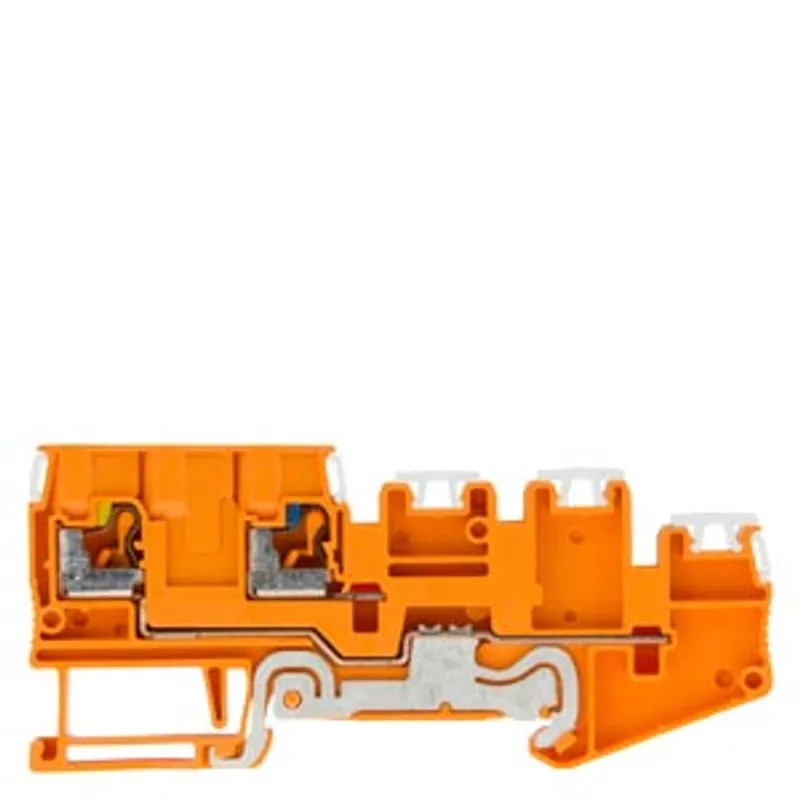

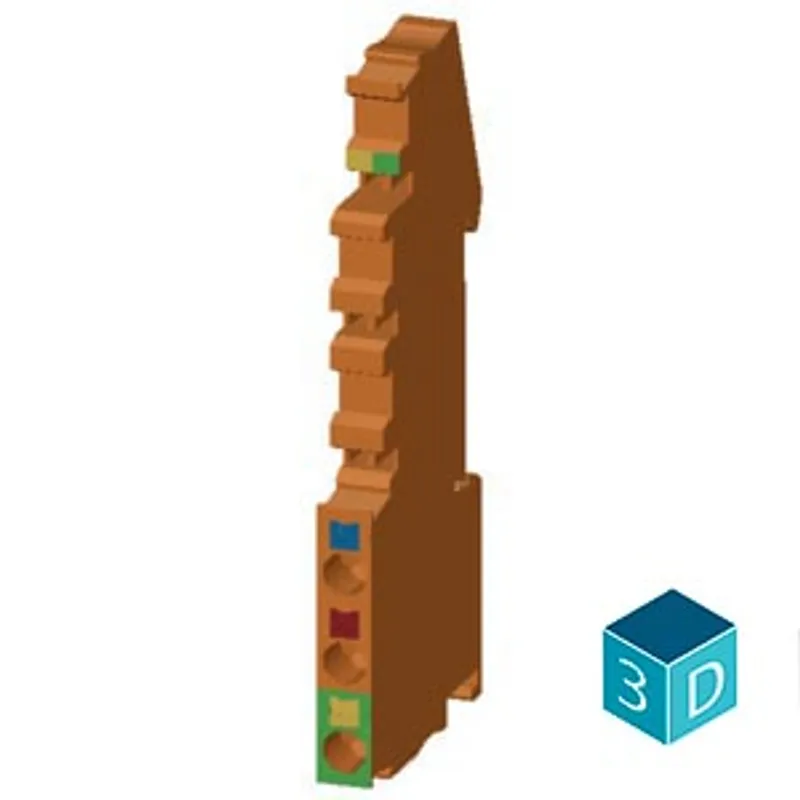

Siemens 8WH6004-0HE04
Terminal, iPo plug-in terminal, 5 clamping points, initiator terminal with PE, 1.5 mm², orange
- MPN
- 8WH6004-0HE04
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH6004-0HE04?
Terminal, iPo plug-in terminal, 5 clamping points, initiator terminal with PE, 1.5 mm², orange
Specifications
Model
| product brand name | SENTRON |
| product designation | Infeed terminal |
| design of the product | For 4-wire orange, including PE |
| design of LED initiator/actuator terminal | No |
| design of terminal terminal levels internally linked | No |
General technical data
| insulation material | thermoplastic |
| terminal contact spacing | 7 mm |
| operating voltage rated value | 250 V |
Protection class
| combustibility class according to UL 94 | V2 |
Main circuit
| operational current rated value | 20 A |
Appearance
| color | Orange |
| color — of the light source | Orange |
Product details
| product function infeed function | Yes |
| product component — required end cover plate | No |
| product component — PE connection | Yes |
| product component — shield connection | Yes |
| product component — disconnector | No |
| product feature cross-connectable | Yes |
Number
| number of terminal levels | 4 |
| number of terminal points per terminal level | 2 |
Connections
| connectable conductor cross-section solid — minimum | 0.2 mm² |
| connectable conductor cross-section solid — maximum | 4 mm² |
| connectable conductor cross-section stranded — minimum | 0.2 mm² |
| connectable conductor cross-section stranded — maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.2 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 2.5 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.2 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 2.5 mm² |
| type of connection 1 | plug-in terminal connection |
| type of connection 2 | plug-in terminal connection |
| position of the terminal | top |

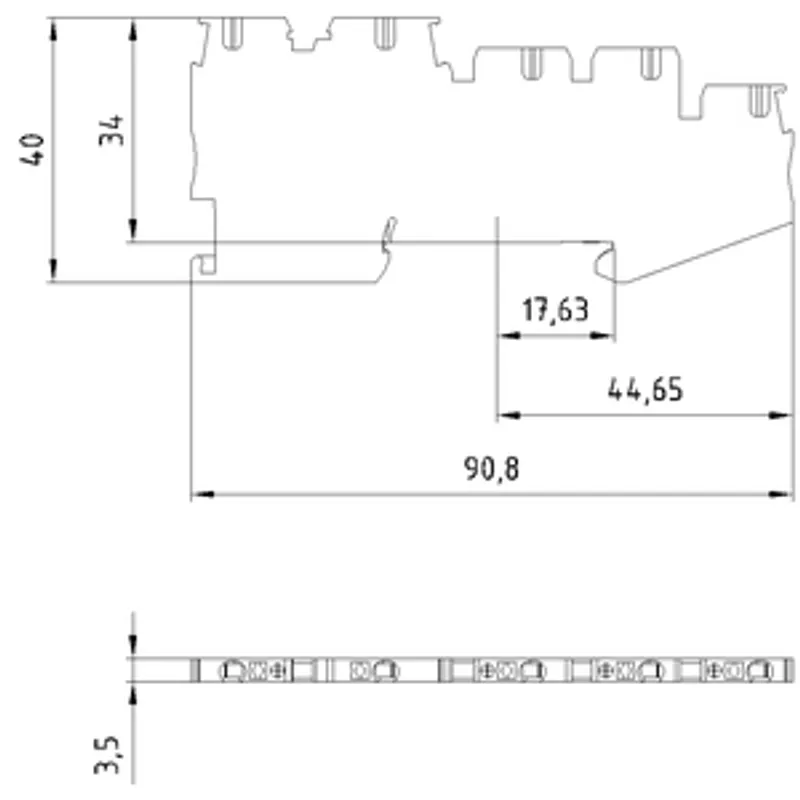

Mechanical Design
| height | 41.5 mm |
| height with lowest-profile installation | 41.5 mm |
| length | 90.8 mm |
| fastening method | other |
| Net Weight | 18 g |
| material of the insulating body | Thermoplast |
