SENTRON 8WH6 iPo Installation Terminals Parts
Compare SENTRON 8WH6 iPo Installation Terminals
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | terminal contact spacing | connectable conductor cross-section stranded — maximum | height | height with lowest-profile installation | Net Weight |
|---|---|---|---|---|---|

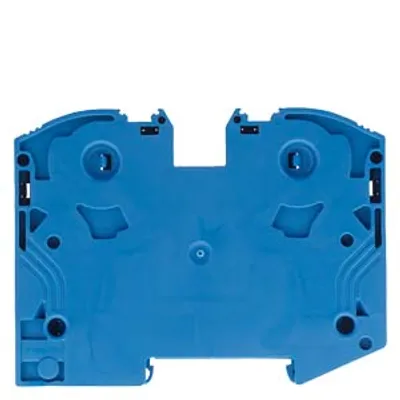

| 8WH6000-0AM01 | 35 mm | 35 mm² | 91.6 mm | 62.3 mm | 0.089 kg |
| 8WH6000-0AM00 | 35 mm | 35 mm² | 91.6 mm | 62.3 mm | 95 g |
| 8WH6000-0AK01 | 16 mm | 25 mm² | 75.4 mm | 60.1 mm | 31 g |

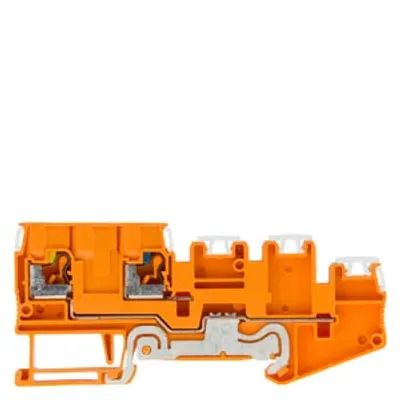

| 8WH6004-0HE04 | 7 mm | 2.5 mm² | 41.5 mm | 41.5 mm | 18 g |

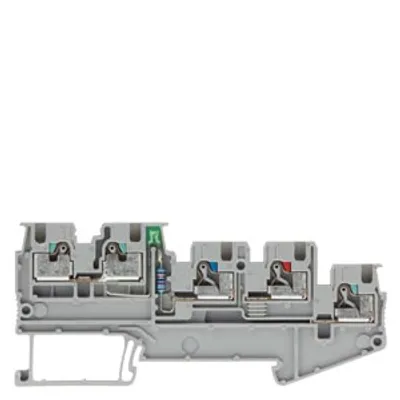

| 8WH6004-0HE00 | 3.5 mm | 1.5 mm² | 41.5 mm | 41.5 mm | 11 g |
| 8WH6004-0FE00 | 3.5 mm | 1.5 mm² | 41.5 mm | 41.5 mm | 8 g |

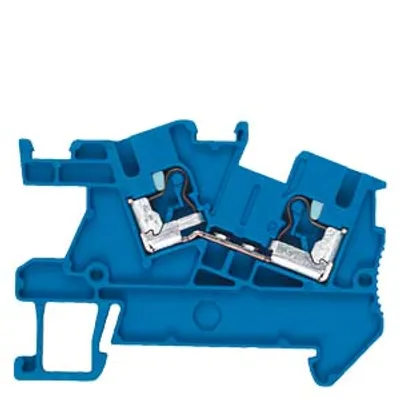

| 8WH6001-0AF01 | 5 mm | 1.5 mm² | 42.5 mm | 59.5 mm | 7 g |

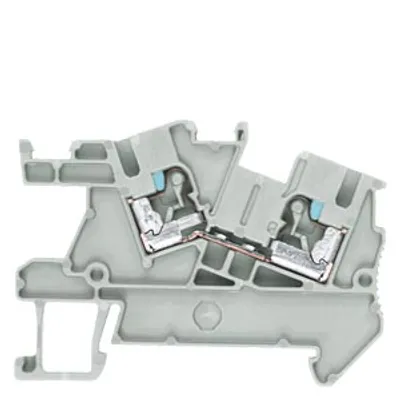

| 8WH6001-0AF00 | 5 mm | 1.5 mm² | 42.5 mm | 59.5 mm | 7 g |

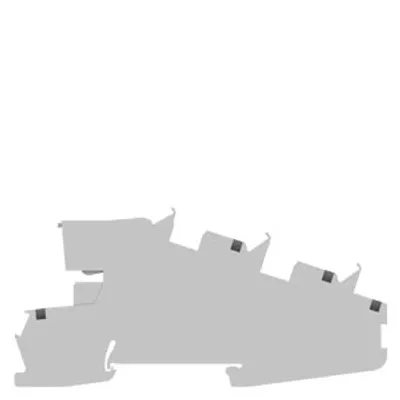

| 8WH6001-4FF00 | 5.2 mm | 0.14 mm² | — | 100.9 mm | 18 g |
| 8WH6001-4EF00 | 5.2 mm | 0.14 mm² | — | 100.9 mm | 18 g |
| 8WH6001-4DF00 | 5.2 mm | 0.14 mm² | — | 100.9 mm | 14.5 g |

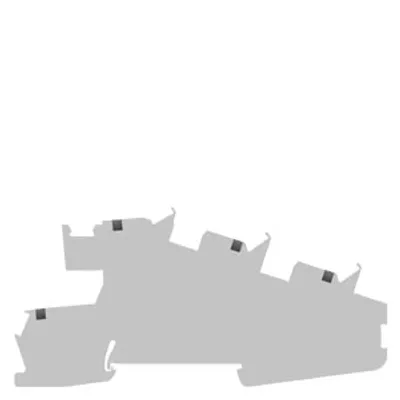

| 8WH6001-4CF00 | 5.2 mm | 0.14 mm² | — | 100.9 mm | 16 g |

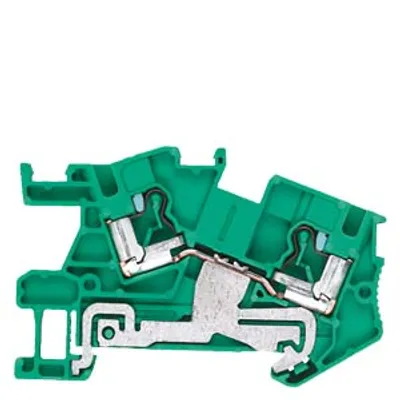

| 8WH6001-0CH07 | 8.2 mm | 0.5 mm² | 66.01 mm | 50 mm | 22 g |
| 8WH6001-0CG07 | 6.2 mm | 0.2 mm² | 65.95 mm | 46.3 mm | 14 g |
| 8WH6001-0CF07 | 5.2 mm | 0.14 mm² | 59.5 mm | 43 mm | 11 g |
| 8WH6000-0AK00 | 16 mm | 25 mm² | 75.4 mm | 60.1 mm | 31 g |
| 8WH6001-0BH01 | 8.2 mm | 0.5 mm² | — | — | 17 g |

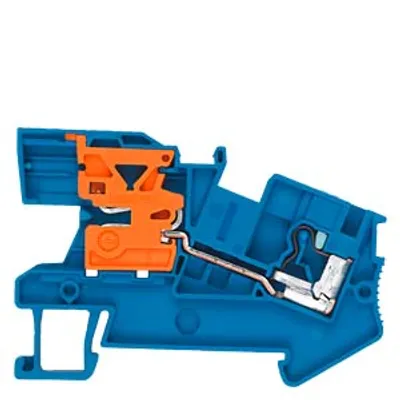

| 8WH6001-0BG01 | 6.2 mm | — | — | — | 11 g |
| 8WH6001-0BF01 | 5.2 mm | 0.14 mm² | — | — | 8 g |

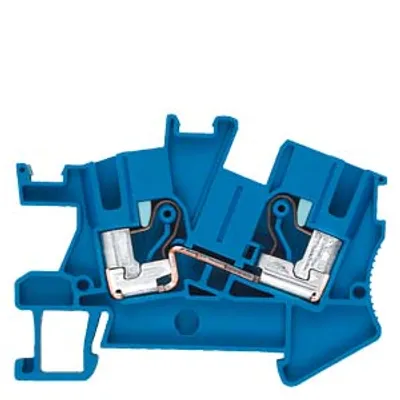

| 8WH6001-0AH01 | 8 mm | 10 mm² | 48.5 mm | 66 mm | 16 g |

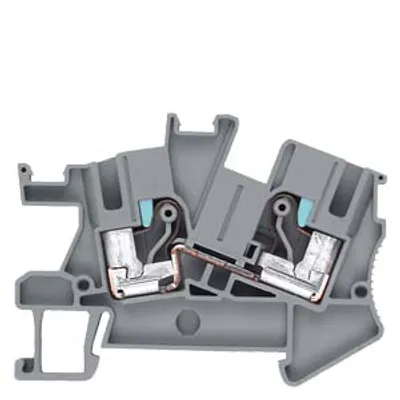

| 8WH6001-0AH00 | 8 mm | 10 mm² | 48.5 mm | 66 mm | 16 g |

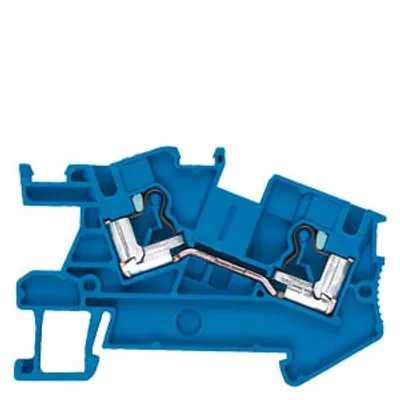

| 8WH6001-0AG01 | 6 mm | 6 mm² | 42.5 mm | 66 mm | 10 g |

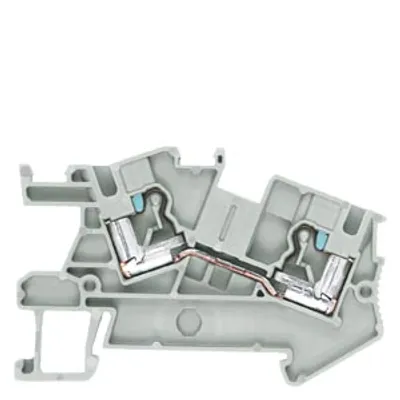

| 8WH6001-0AG00 | 6 mm | 6 mm² | 42.5 mm | 66 mm | 10 g |
