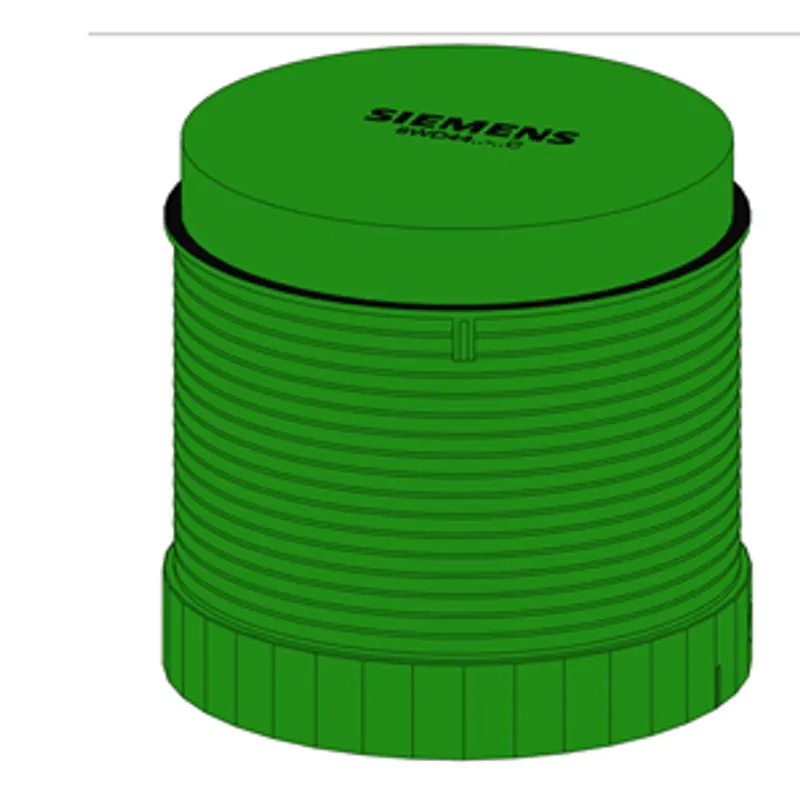

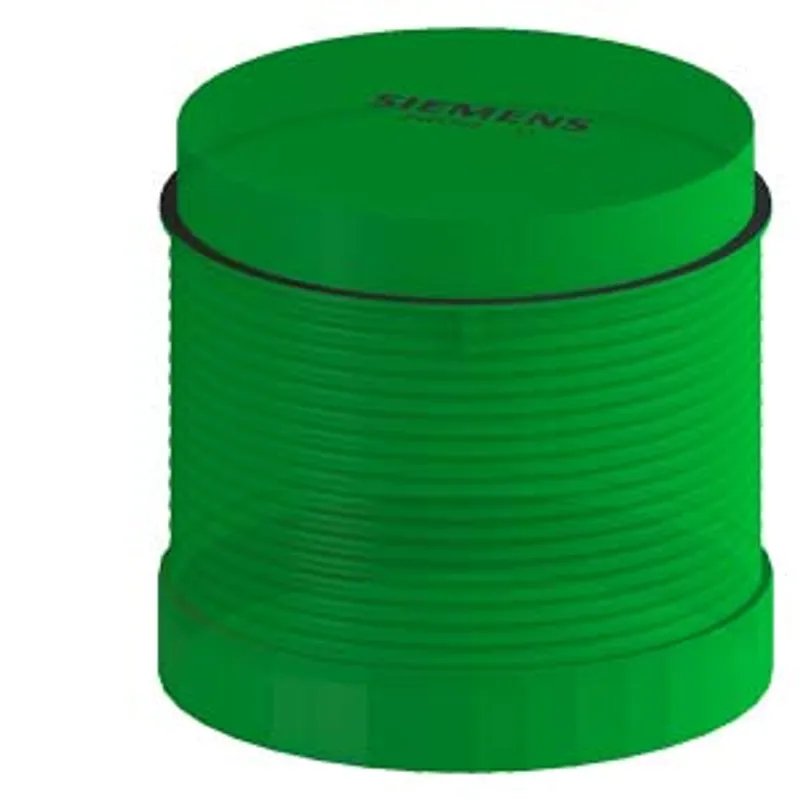

Siemens 8WD4440-5BC
Flashlight element, with integrated LED, green, 115 V AC, Diameter 70 mm
- MPN
- 8WD4440-5BC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4440-5BC?
Flashlight element, with integrated LED, green, 115 V AC, Diameter 70 mm
Specifications
General
| product brand name | SIRIUS |
| product designation | Repeated-flash light element |
| design of the product | including light sources |
General technical data
| type of voltage of the operating voltage | AC |
| operating voltage — 1 at AC at 50 Hz rated value | 115 V |
| operating voltage — 1 at AC at 60 Hz rated value | 115 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |
| consumed current maximum | 25 mA |
| reference code according to EN 61346-2 | P |
Lamp
| type of light source | LED |
| light intensity | 0.7 cd |
| light intensity | 0.48 ... 1.07 cd |
| design of the reflection body | Drum lens |
| flashing frequency | 1 Hz |
| product component light source | Yes |
| service life of LED | 100 000 h |
| design of the optical signal | blinklight |

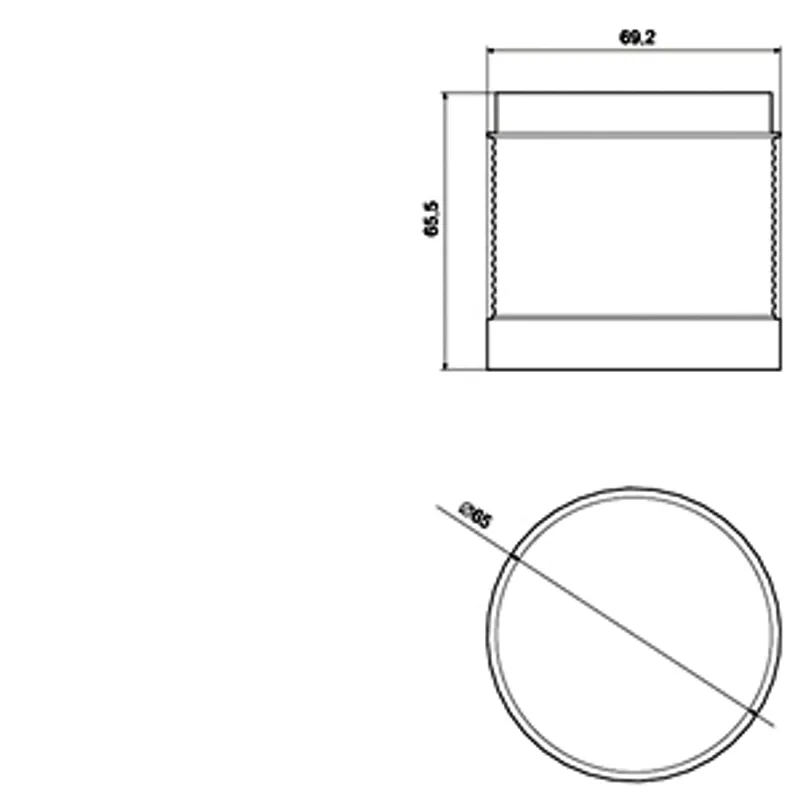

Enclosure
| height | 65.5 mm |
| width | 70 mm |
| outer diameter of the signal column element | 70 mm |
| material | PC |
| color | green |
| fastening method | Bayonet |
| protection class IP | IP65 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8WD4440-5BC: frequently asked questions
When can 8WD4440-5BC be shipped?
8WD4440-5BC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WD4440-5BC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WD4440-5BC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WD4440-5BC, subject to availability and destination.
