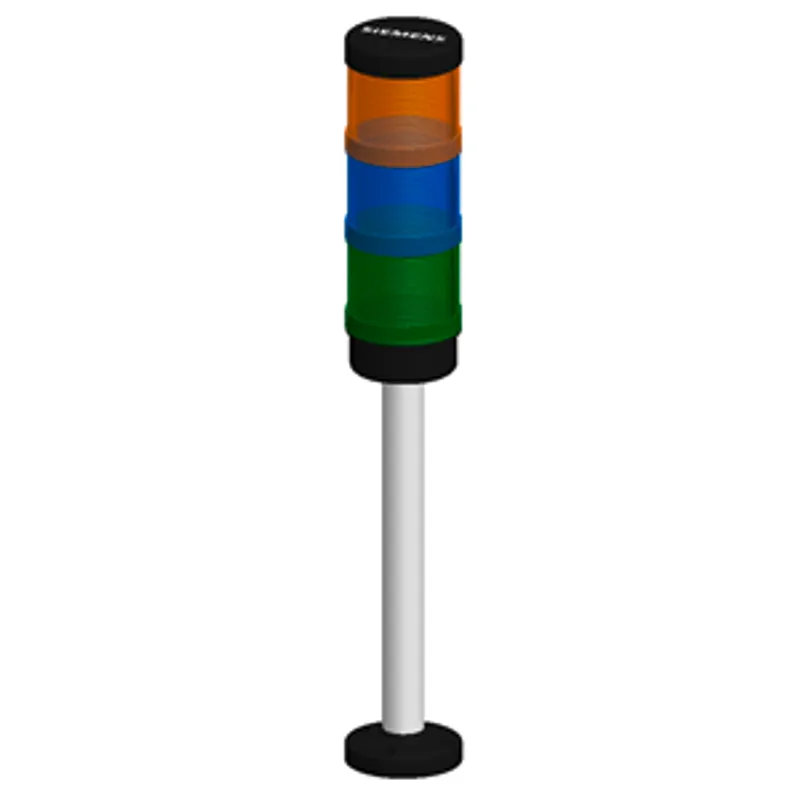

Siemens 8WD4423-5AK05-0AE0
Complete unit signaling column, top: continuous light, yellow, center: continuous light, blue
- MPN
- 8WD4423-5AK05-0AE0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4423-5AK05-0AE0?

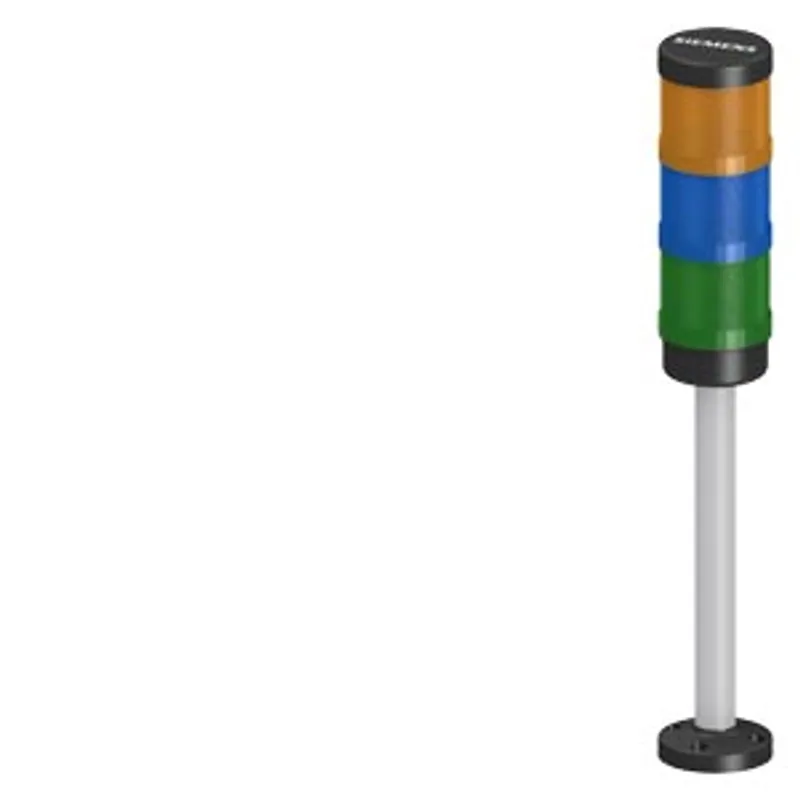

Complete unit signaling column, top: continuous light, yellow, center: continuous light, blue, bottom: continuous light, green, integrated LED 24 V AC/DC, connection element for pipe mounting, pipe, 250 mm, base, plastic
Specifications
General
| product brand name | SIRIUS |
| product designation | Complete unit |
| design of the product | including light sources |
| manufacturer's article number — of supplied connection element | 8WD4408-0AD |
| manufacturer's article number — of supplied mounting tube | 8WD4308-0EA |
| manufacturer's article number — of supplied mounting foot | 8WD4308-0DB |
| manufacturer's article number — of the signal column element — at position 3 | 8WD4420-5AD |
| manufacturer's article number — of the signal column element — at position 2 | 8WD4420-5AF |
| manufacturer's article number — of the signal column element — at position 1 | 8WD4420-5AC |
General technical data
| number of signal column elements | 3 |
| design of the signal column element — at position 3 | continuous light |
| design of the signal column element — at position 2 | continuous light |
| design of the signal column element — at position 1 | continuous light |
| color of the signal column element — at position 3 | yellow |
| color of the signal column element — at position 2 | blue |
| color of the signal column element — at position 1 | green |
| type of voltage of the operating voltage | AC/DC |
| operating voltage — 1 at DC rated value | 24 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |
| consumed current maximum | 95 mA |
| reference code according to EN 61346-2 | P |
Lamp
| type of light source | LED |
| design of the reflection body | Drum lens |
| product component light source | Yes |
| service life of LED | 100 000 h |

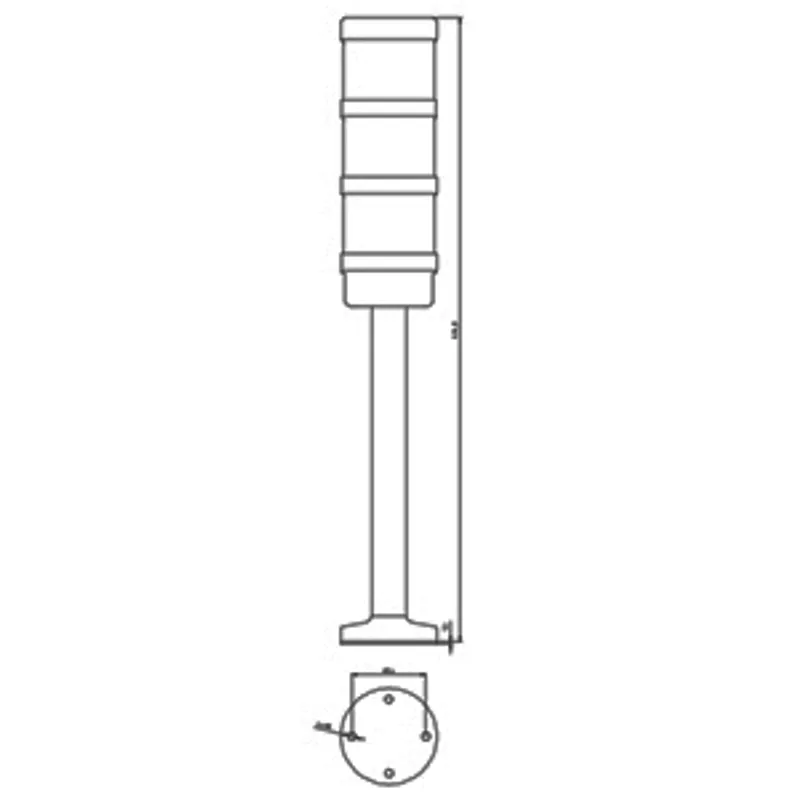

Enclosure
| height | 457 mm |
| width | 70 mm |
| outer diameter of the signal column element | 70 mm |
| material | PC |
| fastening method | floor mounting |
| protection class IP | IP65 |

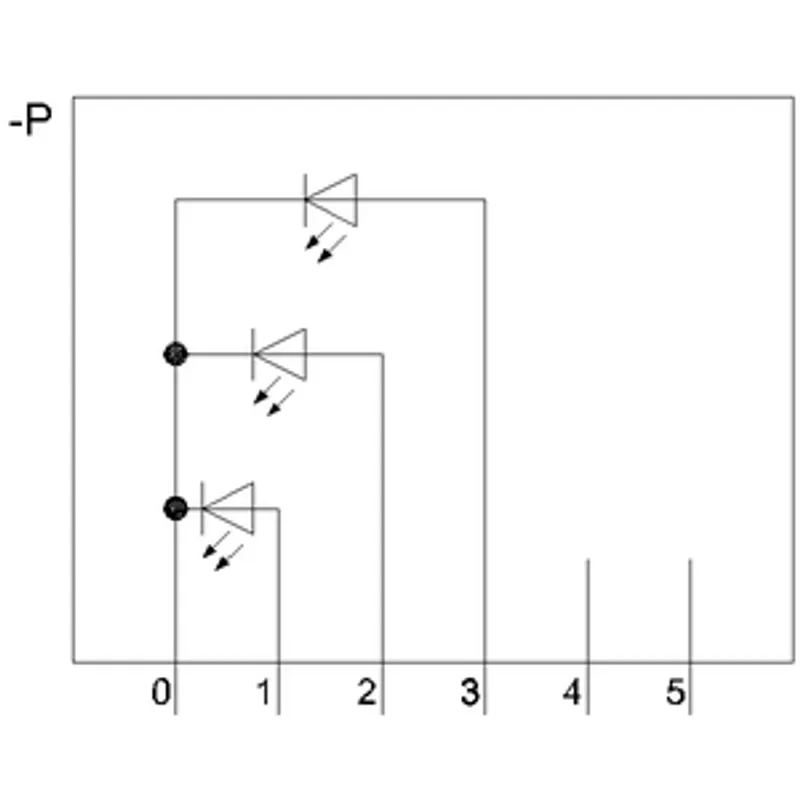

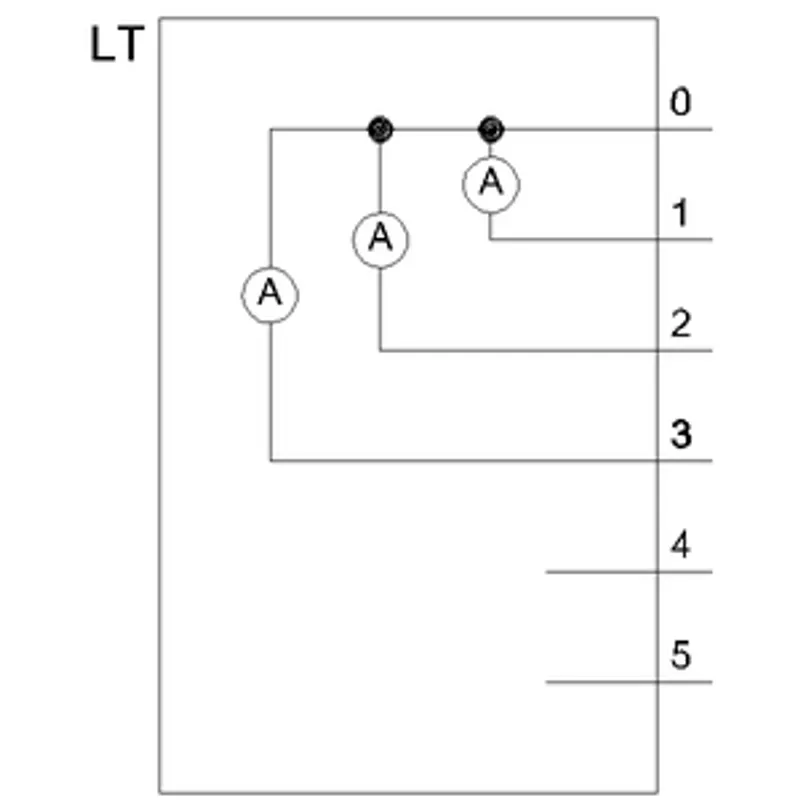

| type of electrical connection | spring-loaded terminals |
| length of the mounting tube | 250 mm |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
