Siemens 8WD4428-0BD
AS-Interface adapter element, black, with/without external auxiliary voltage, can be selected, A/B technology
- MPN
- 8WD4428-0BD
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

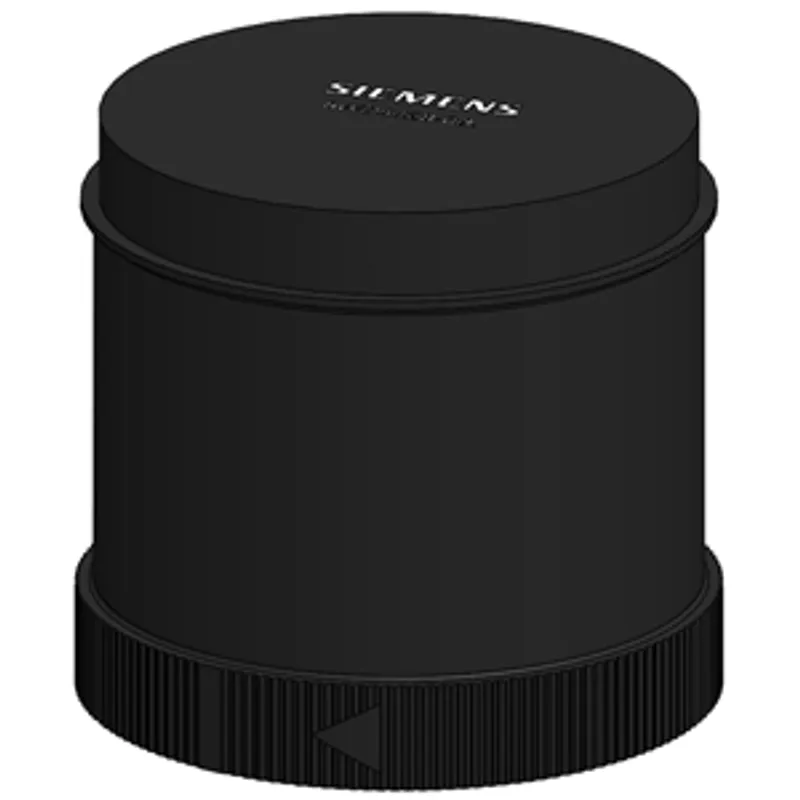

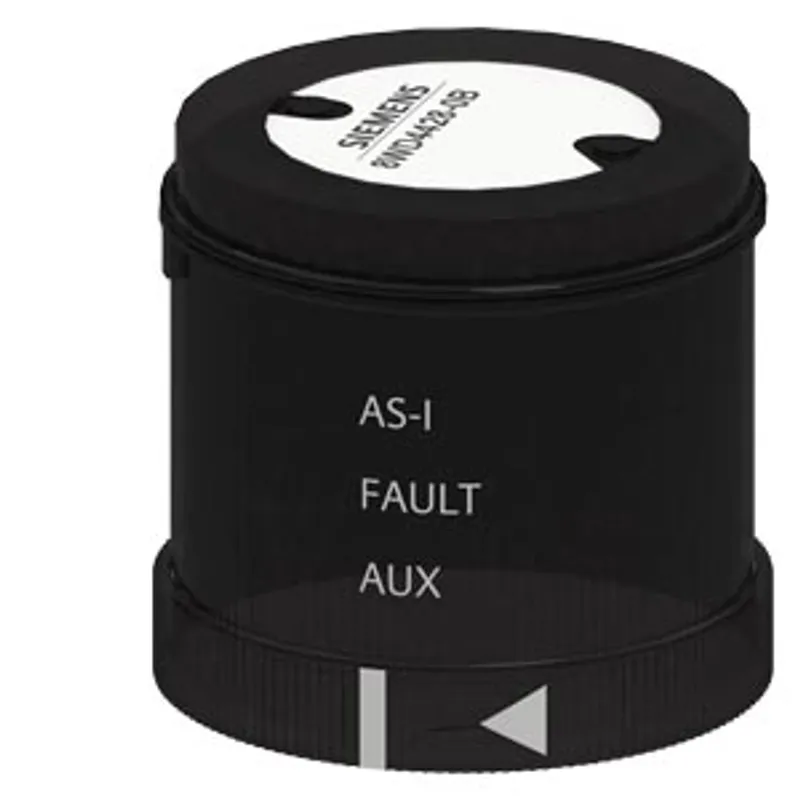

What is the Siemens 8WD4428-0BD?
AS-Interface adapter element, black, with/without external auxiliary voltage, can be selected, A/B technology, for 3 signaling elements, 24 V DC, Diameter 70 mm
Specifications
General
| product brand name | SIRIUS |
| product designation | AS-Interface module |
General technical data
| type of voltage of the operating voltage | DC |
| operating voltage — at DC rated value | 18.5 ... 31.6 V |
| operating voltage — 1 at DC rated value | 24 V |
| consumed current maximum | 210 mA |
| reference code according to EN 61346-2 | B |
Communication
| design of the interface AS-Interface protocol | Yes |
Enclosure

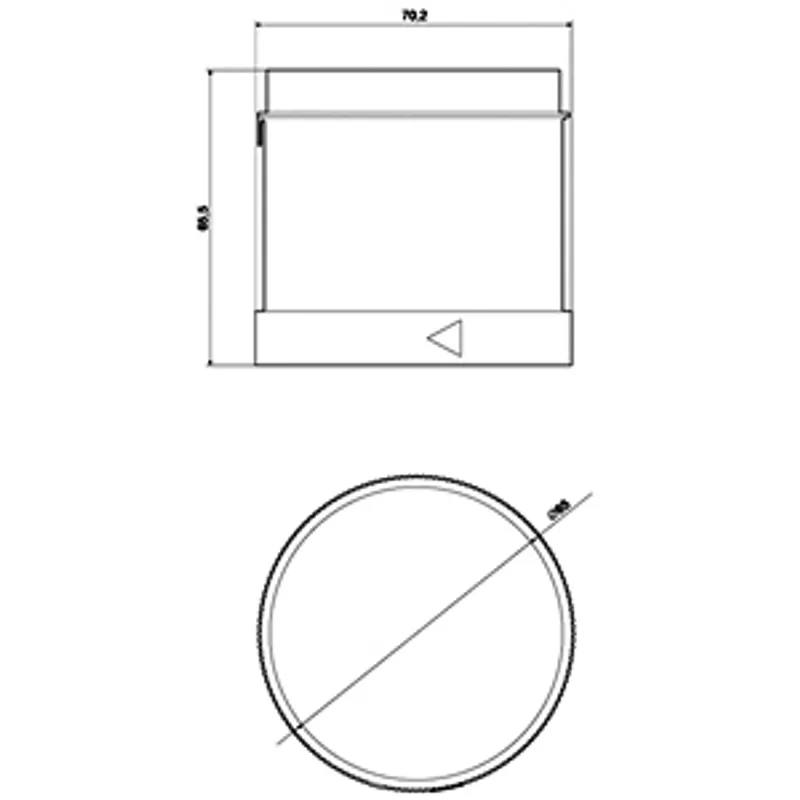

| height | 65.5 mm |
| width | 70 mm |
| outer diameter of the signal column element | 70 mm |
| material | PC |
| color | black |
| fastening method | Bayonet |
| protection class IP | IP65 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
