Siemens

Siemens 8GK2042-4KL21

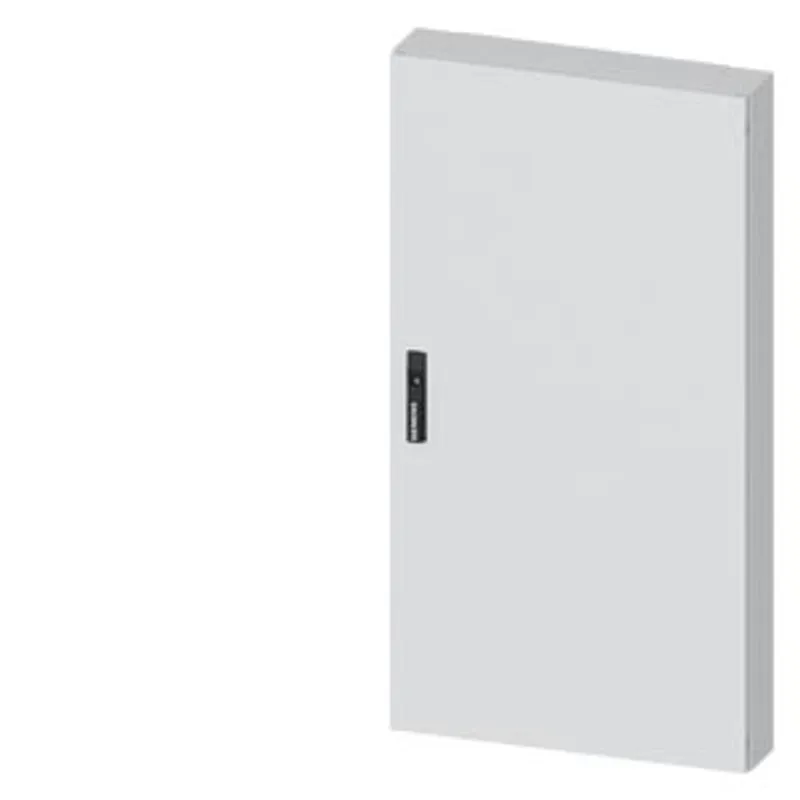

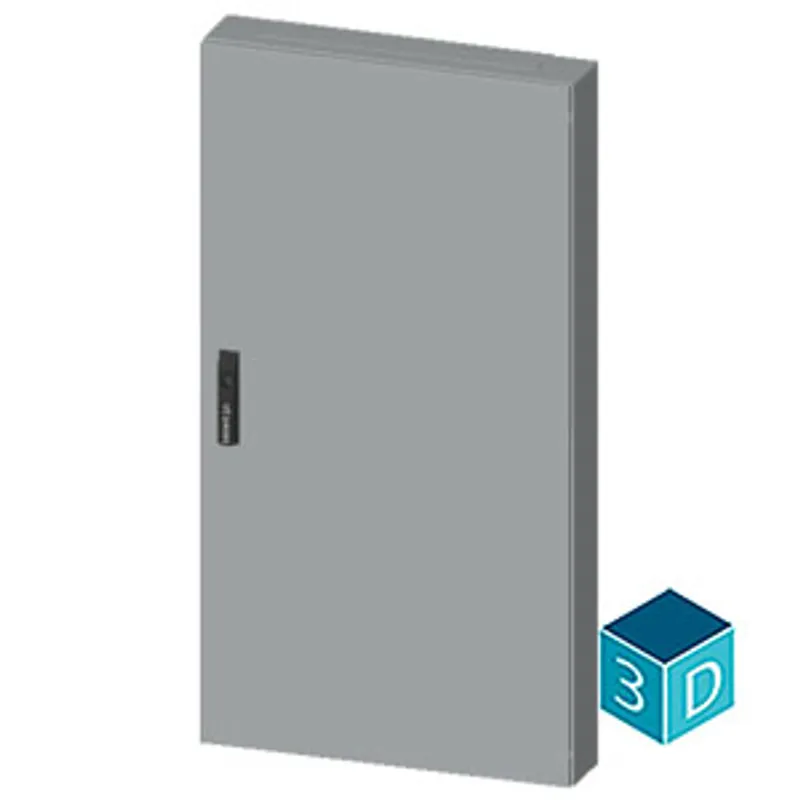

ALPHA 125, wall-mounted cabinet, with distribution board panel, IP43, H: 1200 mm, W: 600 mm, RAL 7035

MPN: 8GK2042-4KL21
Category: Surface-mounting distribution boards

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GK2042-4KL21?

ALPHA 125, wall-mounted cabinet, with distribution board panel, IP43, H: 1200 mm, W: 600 mm, RAL 7035, Protection class 1

Specifications

Model

product brand name	ALPHA
product designation	Wall-mounted cabinet
design of the product	Surface mounting, with distribution board panel
surface processing	powder-coated

Protection class

protection class IP	IP43
operating resource protection class	Safety class 1
IK protection class	IK09
suitability for interaction lightning protection	Yes
suitability for use for outside use	No

Appearance

RAL color number	7 035
product component — cable entry	Yes
product component — mounting plate	No
special product feature	With door
product extension optional side-by-side mounting	Yes
number of DIN mounting bars	6
number of rows	6

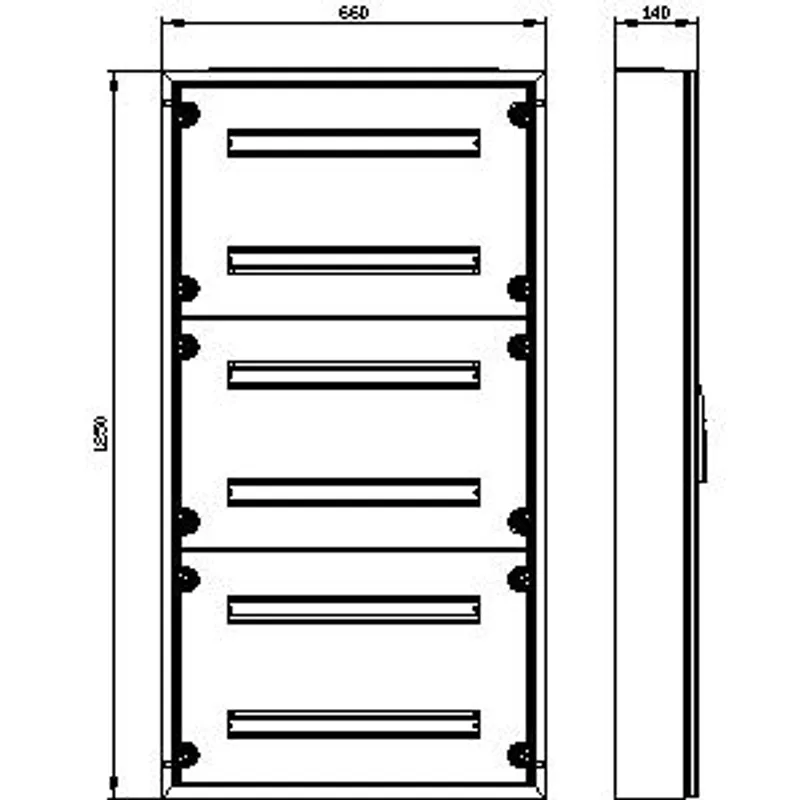

Mechanical Design

height	1 200 mm
width	600 mm
depth	140 mm
installation depth	140 mm
number of modular width units	144
number of modular width units per DIN mounting bar	24
fastening method	surface mounting
Net Weight	34.2 kg
material of the enclosure	Steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GK2042-4KL21PDF
