Surface-mounting distribution boards Parts
Compare Surface-mounting distribution boards
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | special product feature | number of DIN mounting bars | number of rows | height | Net Weight |
|---|---|---|---|---|---|

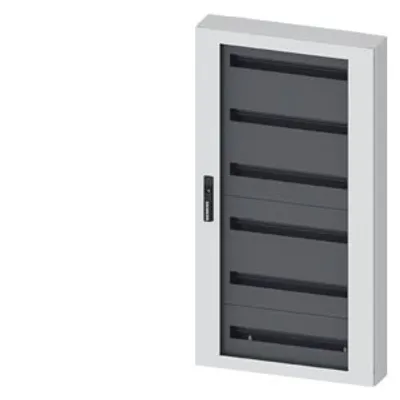

| 8GK2042-4KM21 | With door with inspection window | 6 | 6 | 1 200 mm | 35.2 kg |

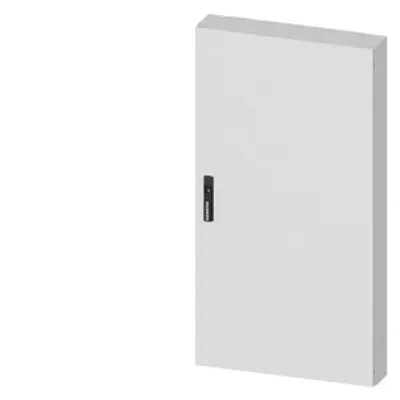

| 8GK2042-4KL21 | With door | 6 | 6 | 1 200 mm | 34.2 kg |

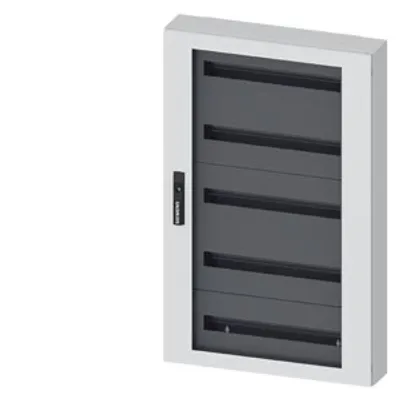

| 8GK2042-3KM21 | With door with inspection window | 5 | 5 | 1 000 mm | 29.7 kg |
Common to all listed parts
| product designation | Wall-mounted cabinet |
| design of the product | Surface mounting, with distribution board panel |
| surface processing | powder-coated |
| protection class IP | IP43 |
| operating resource protection class | Safety class 1 |
| IK protection class | IK09 |
| suitability for interaction lightning protection | Yes |
| suitability for use for outside use | No |
