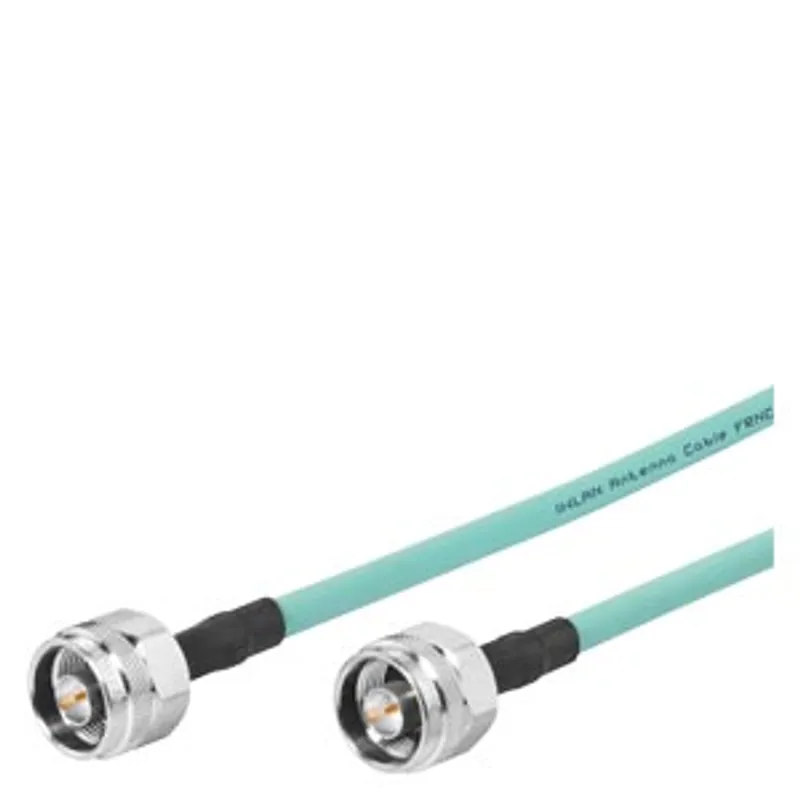

Siemens 6XV1875-5AH50

N-Connect male/male flexible connection cable pre-assembled; length 5 m flexible cable, for example

MPN: 6XV1875-5AH50
Category: IWLAN cabling technology

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6XV1875-5AH50?

N-Connect male/male flexible connection cable pre-assembled; length 5 m flexible cable, for example, for the connection to antennas, suitable for IWLAN and mobile radio.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6XV1875-5AH50
suitability for use	Flexible connecting cable for connecting an antenna or RCoax cable to a SCALANCE M/W
wire length	5 m

electrical data

number of electrical connections	2
type of electrical connection	N-Connect/N-Connect male/male
transmission frequency	0 ... 6000 MHz
attenuation factor per length — at 2.4 GHz / typical	0.53 dB/m
attenuation factor per length — at 5.2 GHz / typical	0.83 dB/m
attenuation factor per length — at 5.85 GHz / typical	0.89 dB/m
return loss — minimum	23 dB
impedance — rated value	50 Ω
capacity per length / at 1 kHz	82 pF/m
relative speed	82 %

mechanical data

design of the shield	Braided shield made of tin-plated copper wires
outer diameter — of inner conductor	1.4 mm
outer diameter — of dielectric	3.8 mm
outer diameter — of cable sheath	6.3 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.2 mm
thickness / of cable sheath	0.76 mm
material — of inner conductor	Cu
material — of dielectric	polyethylene foam
material — of cable sheath	FRNC
color — of cable sheath	pastel turquoise
bending radius — with single bend / minimum permissible	32 mm
bending radius — with multiple bends / minimum permissible	45 mm
tensile load / maximum	80 N
weight per length	75 kg/km

ambient conditions

ambient temperature — during operation	-40 ... +80 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
ambient temperature — during installation	-25 ... +80 °C
chemical resistance — to mineral oil	conditional resistance
radiological resistance / to UV radiation	resistant
protection class IP	IP68; when plugged in

product features, product functions, product components / general

product feature — halogen-free	Yes
product feature — silicon-free	Yes

standards, specifications, approvals

certificate of suitability — EAC approval	Yes
certificate of suitability — RoHS conformity	Yes
certificate of suitability — fire protection in accordance with EN 45545-2	No
standard / for fire behavior / flame resistance	UL 1685 (Vertical tray), UL 1581 Sec. 1090 (H)

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6XV1875-5AH50PDF
