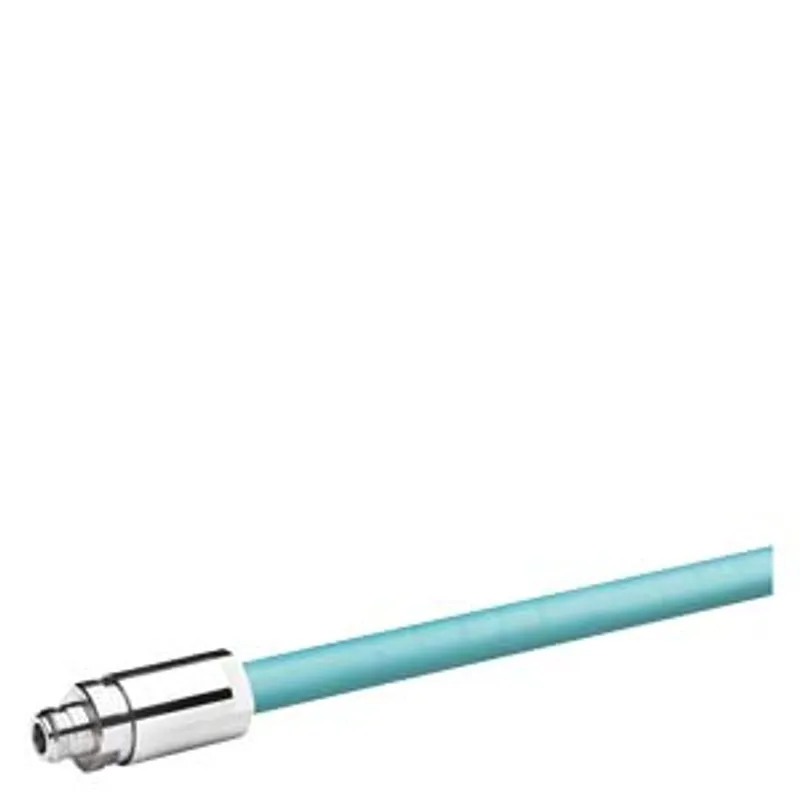

Siemens 6XV1875-2D

IWLAN RCoax cable PE 1/2'' 5 GHz short distance -40 °C/+85 °C ext. temperature range

MPN: 6XV1875-2D
Category: IWLAN RCoax cable

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6XV1875-2D?

IWLAN RCoax cable PE 1/2'' 5 GHz short distance -40 °C/+85 °C ext. temperature range. Sold by the meter minimum order quantity 20 m delivery unit: max. 1000 m.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6XV1875-2D
suitability for operation	For example, suspended monorails, cranes, stacker cranes. Line is water-repellent, resistant to microbes, and extremely resistant to many cleaning agents and disinfectants (such as iodophors, peroxyacetic acids (1% solution), and quaternary ammonium cations). Cleaning with high-pressure cleaner up to 50 kg.

radio frequencies

operating frequency — for WLAN in 5 GHz frequency band 1

5.15 ... 5.85 GHz

electrical data

impedance	50 Ω
attenuation factor per length — at 5.15 GHz / with cable mounted 10 mm above concrete / at 20 °C	0.23 dB/m
attenuation factor per length — at 5.15 GHz / with cable mounted 15 mm above aluminum rail / at 20 °C	0.24 dB/m
attenuation factor per length — at 5.85 GHz / with cable mounted 10 mm above concrete / at 20 °C	0.24 dB/m
attenuation factor per length — at 5.85 GHz / with cable mounted 15 mm above aluminum rail / at 20 °C	0.27 dB/m
coupling attenuation — at 5.15 GHz / at 20 °C	42 dB
coupling attenuation — at 5.85 GHz / at 20 °C	40 dB
coupling attenuation — note	c(50) for distance of 10 cm between antenna and cable
capacity per length	76 pF/m
DC resistance per length — of inner conductor / at 20 °C	1.48 Ω/km
DC resistance per length — of coaxial line conductor / at 20 °C	2.8 Ω/km
relative speed	88 %

mechanical data

outer diameter — of inner conductor	4.8 mm
outer diameter — of dielectric	12.4 mm
outer diameter — of cable sheath	15.5 mm
thickness / of cable sheath	1.3 mm
material — of inner conductor	Copper clad aluminum
material — of dielectric	Polyethylene foam
material — of coaxial line conductor	Overlapping copper foil with the slot groups bonded to cable jacket
material — of cable sheath	Halogen-free polyolefine
color / of cable sheath	pastel turquoise
bending radius — with single bend / minimum permissible	200 mm
number of bending cycles	1
tensile load / maximum	1100 N
weight per length	0.232 kg/m
mounting distance — recommended	0.5 m

ambient conditions

ambient temperature — during operation	-40 ... +85 °C
ambient temperature — during storage	-70 ... +85 °C
ambient temperature — during installation	-25 ... +60 °C
product feature / resistant to UV radiation	Yes

design, dimensions and weights

diameter	15.5 mm
net weight	232 g

standards, specifications, approvals

standard — for fire behavior — corrosive gas emission	IEC 60754-2
standard — for fire behavior — smoke emission	IEC 60332-1 and IEC 60332-3 Cat. C
standard — for fire behavior — flame resistance	IEC 61034
certificate of suitability — UL approval	Yes
wireless approval	Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: WLAN country approval	https://www.siemens.com/wireless-approvals
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6XV1875-2DPDF
