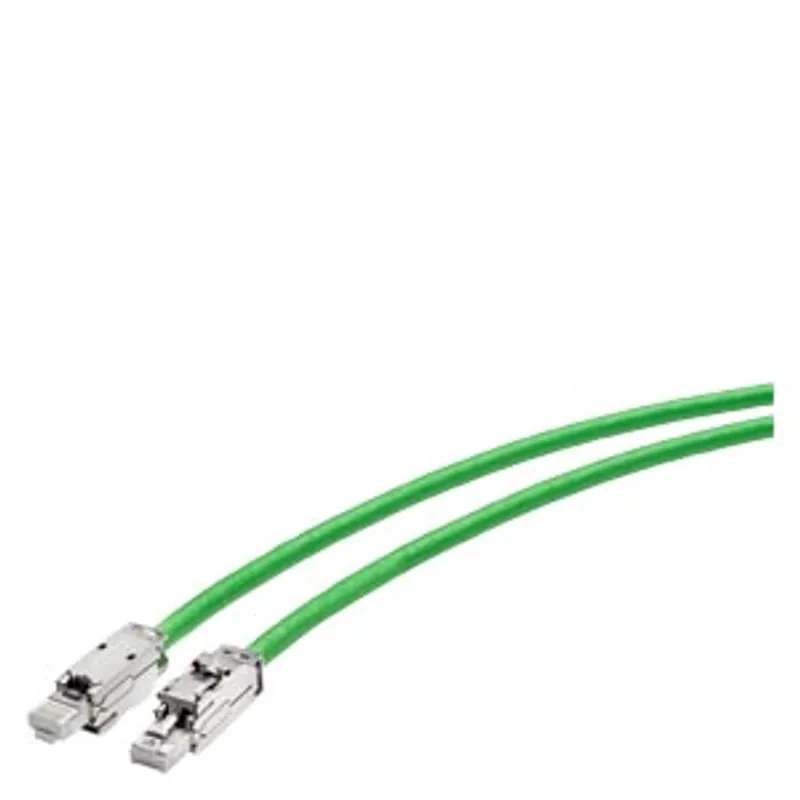

Siemens 6XV1878-5BN30

IE connecting cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180

MPN: 6XV1878-5BN30
Category: Pre-assembled IE connecting cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6XV1878-5BN30?

IE connecting cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180; IE FC flexible GP 4x2 cable Pre-assembled with 2x IE FC RJ45 plug 180 4 x 2; Length 30 m.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6XV1878-5BN30
suitability for use	For connecting Industrial Ethernet stations with an RJ45 interface (10/100/1000/10000Mbps)
cable designation	SF/UTP
wire length	30 m

electrical data

number of electrical connections	2
attenuation factor per length — at 10 MHz / maximum	0.089 dB/m
attenuation factor per length — at 100 MHz / maximum	0.287 dB/m
attenuation factor per length — at 250 MHz / maximum	0.466 dB/m
attenuation factor per length — at 300 MHz / maximum	0.514 dB/m
attenuation factor per length — at 500 MHz / maximum	0.679 dB/m
impedance — at 1 MHz ... 100 MHz	100 Ω
near-end crosstalk per length — at 1 MHz ... 100 MHz	0.453 dB/m
near-end crosstalk per length — at 1 MHz … 250 MHz	0.393 dB/m
near-end crosstalk per length — at 1 MHz ... 300 MHz	0.381 dB/m
near-end crosstalk per length — at 1 MHz ... 500 MHz	0.348 dB/m
transfer impedance per length / at 10 MHz	20 mΩ/m
loop resistance per length / maximum	180 mΩ/m
insulation resistance coefficient	5000 GΩ·m
operating voltage — RMS value	80 V
NVP value in percent	68 %

mechanical data

number of electrical cores	8
design of the shield	SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
type of electrical connection / FastConnect	Yes
core diameter — of AWG24 insulated conductor	0.51 mm
outer diameter — of inner conductor	0.6 mm
outer diameter — of the wire insulation	1.05 mm
outer diameter — of the inner sheath of the cable	6.4 mm
outer diameter — of cable sheath	8 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.2 mm
material — of the wire insulation	polyethylene (PE)
material — of the inner sheath of the cable	FRNC
material — of cable sheath	PVC
color — of the insulation of data wires	white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
color — of cable sheath	green
bending radius — with single bend / minimum permissible	24 mm
bending radius — with multiple bends / minimum permissible	40 mm
tensile load / maximum	100 N
weight per length	86 kg/km

plug

design of plug-in connection

RJ45-180

ambient conditions

ambient temperature — during operation	-40 ... +80 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
ambient temperature — during installation	-40 ... +80 °C
fire behavior	flame resistant according to IEC 60332-3-24 (Category C)
chemical resistance — to mineral oil	oil resistant according to IEC 60811-2-1 (4 h / 70°C)
chemical resistance — to grease	Conditional resistance
chemical resistance — to water	conditional resistance
radiological resistance / to UV radiation	resistant

product features, product functions, product components / general

product feature — halogen-free	No
product feature — PoE capability	Yes
product feature — PoE+ capability	Yes
product feature — PoE++ capability	Yes
product feature — silicon-free	Yes
wire length / for Industrial Ethernet — with 100BaseTX	80 m
wire length / for Industrial Ethernet — with 1000BaseT	80 m
wire length / for Industrial Ethernet — for 10GBase T	70 m
test voltage — at AC / core-to-core	500 V
test voltage — at AC / core shield	1500 V

standards, specifications, approvals

UL/ETL listing / 300 V Rating	Yes; c(ETL)us, CMG, wiring harness
UL/ETL style / 600 V Rating	No
certificate of suitability — EAC approval	Yes
certificate of suitability — CE marking	Yes
certificate of suitability — RoHS conformity	Yes
product conformity — ANSI/TIA-EIA 568 A	Yes
product conformity — IEC 61784-5-2-CP 2/2 (Ethernet/IP)	Yes
standard for structured cabling	Cat6A, Class EA
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Germanische Lloyd (GL)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No
Marine classification association — Nippon Kaiji Kyokai (NK)	No
Marine classification association — Polski Rejestr Statkow (PRS)	No

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
