Siemens 6XV1840-2AT50

IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E bus cable 4-wire, shielded

MPN: 6XV1840-2AT50
Category: IE FC TP cable 2 x 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6XV1840-2AT50?

IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E bus cable 4-wire, shielded, special configuration for quick assembly to IE FC RJ45 plug 2x2, 500 m.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6XV1840-2AT50
suitability for use	Standard cable with rigid cores for fast installation
cable designation	SF/UTP, 2YY (ST) CY 2x2x0,64/1,5-100 GN
wire length	500 m

electrical data

attenuation factor per length — at 10 MHz / maximum	0.052 dB/m
attenuation factor per length — at 100 MHz / maximum	0.195 dB/m
impedance — at 1 MHz ... 100 MHz	100 Ω
relative symmetrical tolerance — of the characteristic impedance at 1 MHz … 100 MHz	15 %
near-end crosstalk per length — at 1 MHz ... 100 MHz	0.5 dB/m
transfer impedance per length / at 10 MHz	10 mΩ/m
loop resistance per length / maximum	115 mΩ/m
operating voltage — RMS value	80 V
NVP value in percent	69 %

mechanical data

number of electrical cores	4

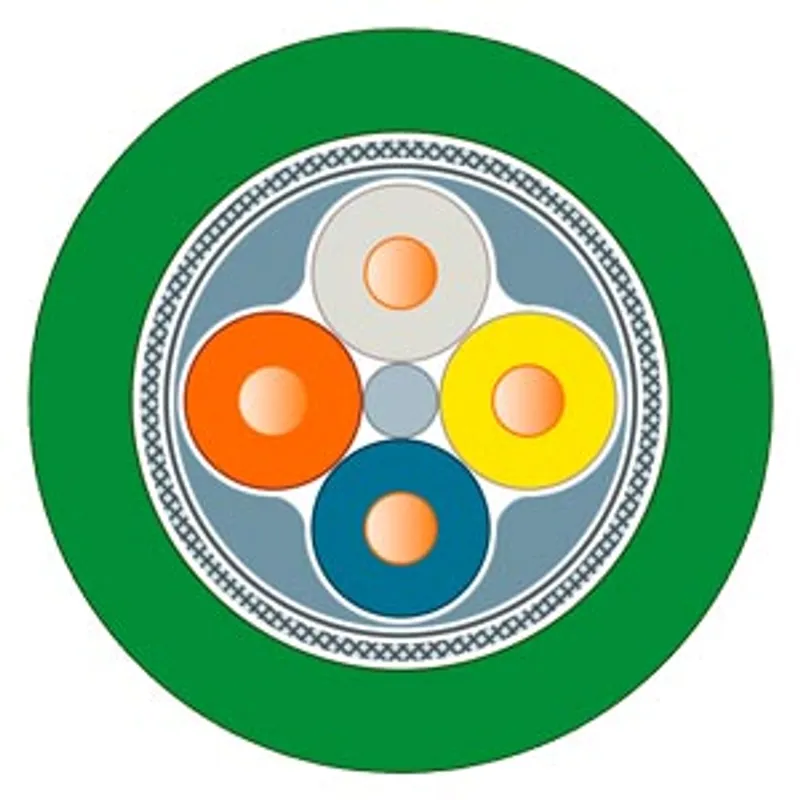

design of the shield	SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
type of electrical connection / FastConnect	Yes
core diameter — of AWG22 insulated conductor	0.64 mm
outer diameter — of inner conductor	0.64 mm
outer diameter — of the wire insulation	1.5 mm
outer diameter — of the inner sheath of the cable	3.9 mm
outer diameter — of cable sheath	6.5 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.2 mm
material — of the wire insulation	polyethylene (PE)
material — of the inner sheath of the cable	PVC
material — of cable sheath	PVC
color — of the insulation of data wires	white/yellow/blue/orange
color — of cable sheath	green
bending radius — with single bend / minimum permissible	19.5 mm
bending radius — with multiple bends / minimum permissible	49 mm
tensile load / maximum	150 N
weight per length	61 kg/km

ambient conditions

ambient temperature — during operation	-40 ... +75 °C
ambient temperature — during storage	-40 ... +75 °C
ambient temperature — during transport	-40 ... +75 °C
ambient temperature — during installation	-40 ... +60 °C
ambient temperature — note	electrical properties measured at 20 °C
fire behavior	flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4)
class of burning behaviour / according to EN 13501-6	Eca
chemical resistance — to mineral oil	oil resistant according to IEC 60811-2-1 (4 h / 70°C)
chemical resistance — to grease	Conditional resistance
chemical resistance — to water	conditional resistance
radiological resistance / to UV radiation	resistant

product features, product functions, product components / general

product feature — halogen-free	No
product feature — PoE capability	Yes
product feature — PoE+ capability	Yes
product feature — silicon-free	Yes
wire length / for Industrial Ethernet — with 100BaseTX	100 m
test voltage — at AC / core-to-core	2000 V
test voltage — at AC / core shield	2000 V

standards, specifications, approvals

UL/ETL listing / 300 V Rating	Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res
UL/ETL style / 600 V Rating	Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2
certificate of suitability — EAC approval	Yes
certificate of suitability — CE marking	Yes
certificate of suitability — RoHS conformity	Yes
standard for structured cabling	Cat5e
resistance to air pollution / conformity according to ANSI/ISA-71.04	Yes; G3
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Germanische Lloyd (GL)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No
Marine classification association — Nippon Kaiji Kyokai (NK)	No
Marine classification association — Polski Rejestr Statkow (PRS)	No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	0.9 kg
global warming potential [CO2 eq] — during manufacturing	0.81 kg
global warming potential [CO2 eq] — during operation	0.02 kg
global warming potential [CO2 eq] — after end of life	0.07 kg

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6XV1840-2AT50PDF
