Siemens 6XV1840-2AU10
Industrial Ethernet FC TP standard cable GP, TP installation cable for connection to IE FC RJ45 2x2
- MPN
- 6XV1840-2AU10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1840-2AU10?
Industrial Ethernet FC TP standard cable GP, TP installation cable for connection to IE FC RJ45 2x2, for universal use, shielded Cat5e, 1000 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1840-2AU10 |
| suitability for use | Standard cable with rigid cores for fast installation |
| cable designation | SF/UTP, 2YY (ST) CY 2x2x0,64/1,5-100 GN |
| wire length | 1000 m; sold by the meter |
electrical data
| attenuation factor per length — at 10 MHz / maximum | 0.052 dB/m |
| attenuation factor per length — at 100 MHz / maximum | 0.195 dB/m |
| impedance — at 1 MHz ... 100 MHz | 100 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 1 MHz … 100 MHz | 15 % |
| transfer impedance per length / at 10 MHz | 10 mΩ/m |
| loop resistance per length / maximum | 115 mΩ/m |
| operating voltage — RMS value | 80 V |
| NVP value in percent | 69 % |
mechanical data
| number of electrical cores | 4 |

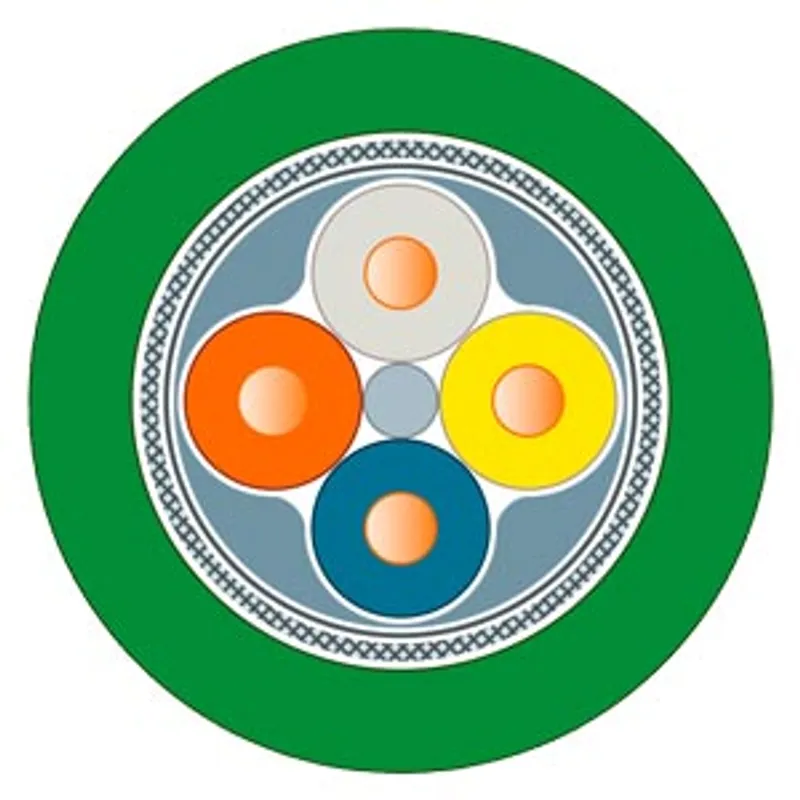

| design of the shield | SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect | Yes |
| core diameter — of AWG22 insulated conductor | 0.64 mm |
| outer diameter — of inner conductor | 0.64 mm |
| outer diameter — of the wire insulation | 1.5 mm |
| outer diameter — of the inner sheath of the cable | 3.9 mm |
| outer diameter — of cable sheath | 6.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of the inner sheath of the cable | PVC |
| material — of cable sheath | PVC |
| color — of the insulation of data wires | white/yellow/blue/orange |
| color — of cable sheath | green |
| bending radius — with single bend / minimum permissible | 19.5 mm |
| bending radius — with multiple bends / minimum permissible | 49 mm |
| tensile load / maximum | 150 N |
| weight per length | 61 kg/km |
ambient conditions
| ambient temperature — during operation | -40 ... +75 °C |
| ambient temperature — during storage | -40 ... +75 °C |
| ambient temperature — during transport | -40 ... +75 °C |
| ambient temperature — during installation | -40 ... +60 °C |
| ambient temperature — note | electrical properties measured at 20 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance — to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| chemical resistance — to grease | Conditional resistance |
| chemical resistance — to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — PoE capability | Yes |
| product feature — PoE+ capability | Yes |
| product feature — silicon-free | Yes |
| wire length / for Industrial Ethernet — with 100BaseTX | 100 m |
| test voltage — at AC / core-to-core | 2000 V |
| test voltage — at AC / core shield | 2000 V |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res |
| UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — CE marking | Yes |
| standard for structured cabling | Cat5e |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 0.9 kg |
| global warming potential [CO2 eq] — during manufacturing | 0.81 kg |
| global warming potential [CO2 eq] — during operation | 0.02 kg |
| global warming potential [CO2 eq] — after end of life | 0.07 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
