IE FC TP cable 2 x 2 Parts

Showing 1–9 of 9 parts

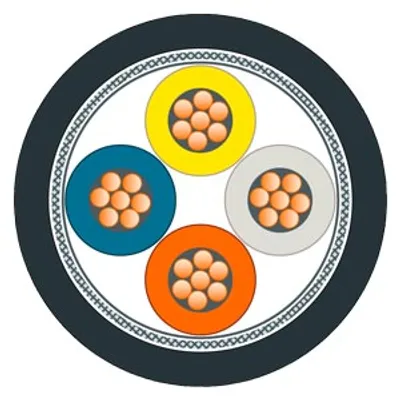

Siemens 6XV1871-2T – IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail applications, for connection to FC RJ45 plug 2x2
Siemens
6XV1871-2T

IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail…

Siemens 6XV1840-2AT50 – IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E bus cable 4-wire, shielded
Siemens
6XV1840-2AT50

IE FC TP Standard Cable GP 2x2 (PROFINET Type A)

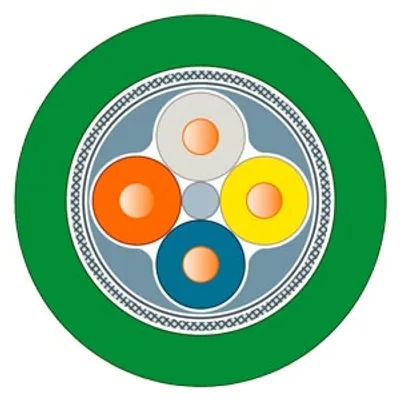

Siemens 6XV1840-2AT20 – IE FC TP Standard Cable 2x2, (PROFINET Type A), CAT5E, bus cable 4-wire, shielded
Siemens
6XV1840-2AT20

IE FC TP Standard Cable 2x2, (PROFINET Type A), CAT5E

Siemens 6XV1840-2AT10 – IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E, bus cable 4-wire, shielded
Siemens
6XV1840-2AT10

IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E

Siemens 6XV1840-2AN50 – IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E, bus cable 4-wire, shielded
Siemens
6XV1840-2AN50

IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E

Siemens 6XV1840-2AN20 – IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E, bus cable 4-wire, shielded
Siemens
6XV1840-2AN20

IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E

Compare IE FC TP cable 2 x 2

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNTechnical Product Detail Pagewire lengthattenuation factor per length — at 10 MHz / maximumattenuation factor per length — at 100 MHz / maximumweight per length

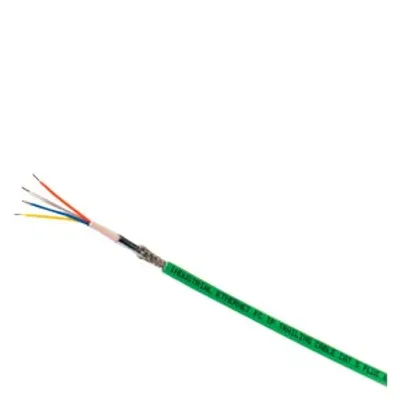

6XV1841-2Bhttps://i.siemens.com/1P6XV1841-2Bsold by the meter0.065 dB/m0.22 dB/m68 kg/km
6XV1841-2Ahttps://i.siemens.com/1P6XV1841-2Asold by the meter0.065 dB/m0.22 dB/m59 kg/km

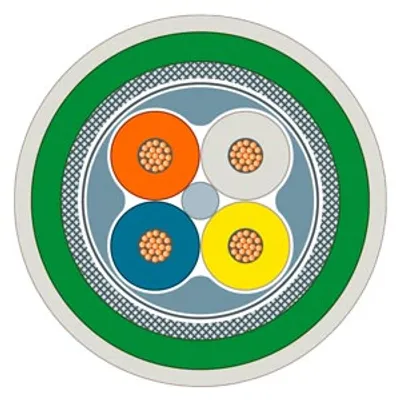

6XV1881-2Ahttps://i.siemens.com/1P6XV1881-2Asold by the meter0.095 dB/m0.32 dB/m72 kg/km
6XV1871-2Thttps://i.siemens.com/1P6XV1871-2Tsold by the meter0.053 dB/m0.188 dB/m71 kg/km
6XV1840-2AT50https://i.siemens.com/1P6XV1840-2AT50500 m0.052 dB/m0.195 dB/m61 kg/km
6XV1840-2AT20https://i.siemens.com/1P6XV1840-2AT20200 m0.052 dB/m0.195 dB/m61 kg/km
6XV1840-2AT10https://i.siemens.com/1P6XV1840-2AT10100 m0.052 dB/m0.195 dB/m61 kg/km
6XV1840-2AN50https://i.siemens.com/1P6XV1840-2AN5050 m0.052 dB/m0.195 dB/m61 kg/km
6XV1840-2AN20https://i.siemens.com/1P6XV1840-2AN2020 m0.052 dB/m0.195 dB/m61 kg/km

Common to all listed parts

impedance — at 1 MHz ... 100 MHz100 Ω
number of electrical cores4
symmetrical tolerance of the outer diameter / of cable sheath0.2 mm
material — of the wire insulationpolyethylene (PE)
color — of the insulation of data wireswhite/yellow/blue/orange
chemical resistance — to greaseConditional resistance
radiological resistance / to UV radiationresistant
product feature — PoE capabilityYes
