Siemens 6GT2821-6AC10
SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm
- MPN
- 6GT2821-6AC10
- Category
- RF260R
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2821-6AC10?

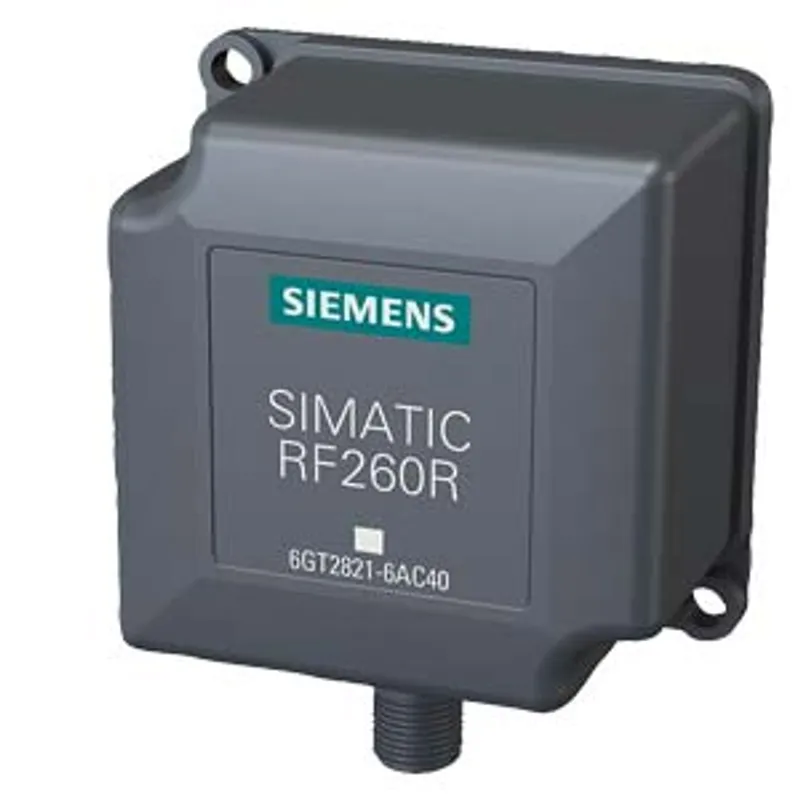

SIMATIC RF200 Reader RF260R; RS422 interface (3964R); IP67, -25 to +70 °C; 75x 75x 40 mm; with integrated antenna.
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2821-6AC10 |
| suitability for operation | ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules |
radio frequencies
| operating frequency / rated value | 13.56 MHz |
| range / maximum | 135 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| protocol / with radio transmission | ISO 15693, ISO 18000-3 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | No |
electrical data
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
| transmission time / for user data — for write access / per byte / typical | 0.6 ms |
| transmission time / for user data — for read access / per byte / typical | 0.6 ms |
interfaces
| standard for interfaces / for communication | RS422 |
| type of electrical connection | M12, 8-pin |
mechanical data
| material | PA6.6 |
| color | anthracite |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
| mounting distance / relating to metal surfaces / recommended / minimum | 0 mm |
supply voltage, current consumption, power loss
| supply voltage / at DC — rated value | 24 V |
| consumed current / at DC — at 24 V / typical | 0.05 A |
ambient conditions
| ambient temperature — during operation | -20 ... +70 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during transport | -25 ... +80 °C |
| protection class IP | IP67 |
| shock resistance | EN 60721-3-7 Class 7 M2 |
| shock acceleration | 500 m/s² |
| vibrational acceleration | 200 m/s² |
design, dimensions and weights

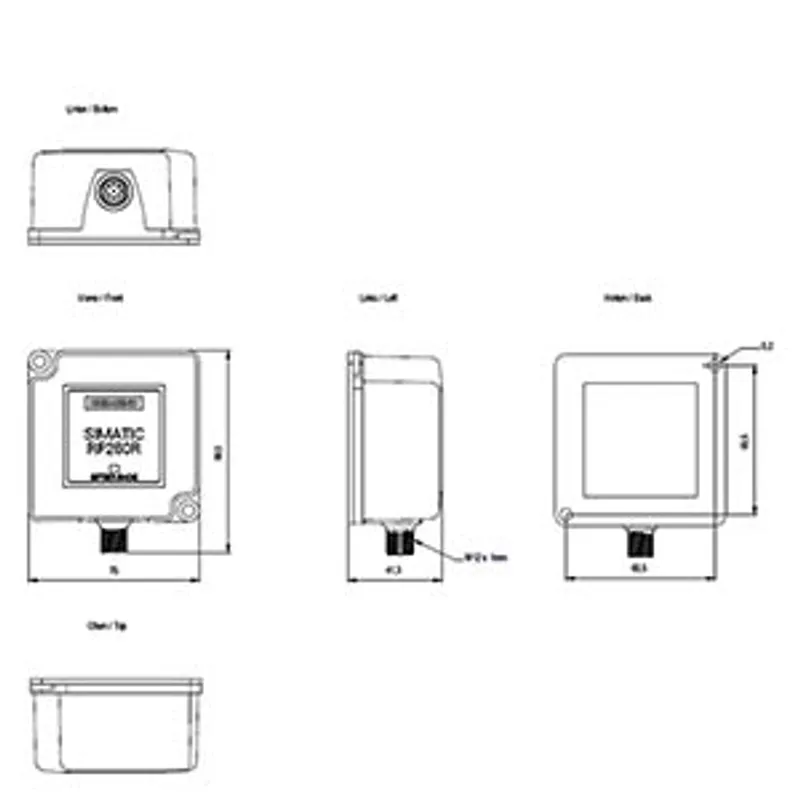

| width | 75 mm |
| height | 41 mm |
| depth | 75 mm |
| net weight | 0.2 kg |
| fastening method | 2 x M5 screws |
| wire length — for RS 422 interface / maximum | 1000 m |
product features, product functions, product components / general
| display version | 3-color LED |
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability | Radio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus |
| certificate of suitability — IECEx | No |
| MTBF | 480 a |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 43.51 kg |
| global warming potential [CO2 eq] — during manufacturing | 10.7 kg |
| global warming potential [CO2 eq] — during operation | 32.51 kg |
| global warming potential [CO2 eq] — after end of life | 0.3 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: RFID country approval | https://www.siemens.com/rfid-approvals |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
