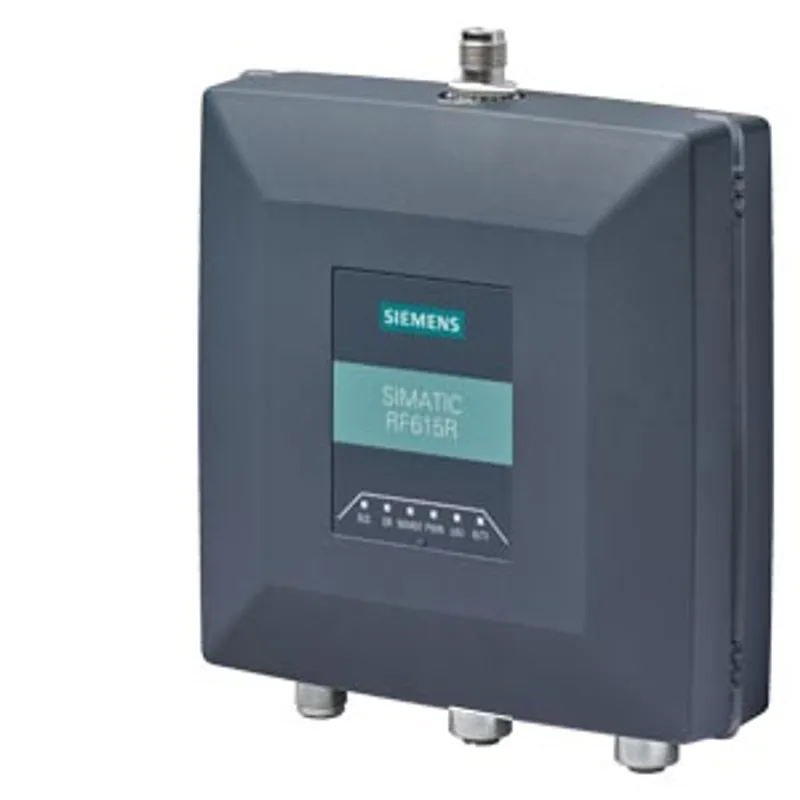

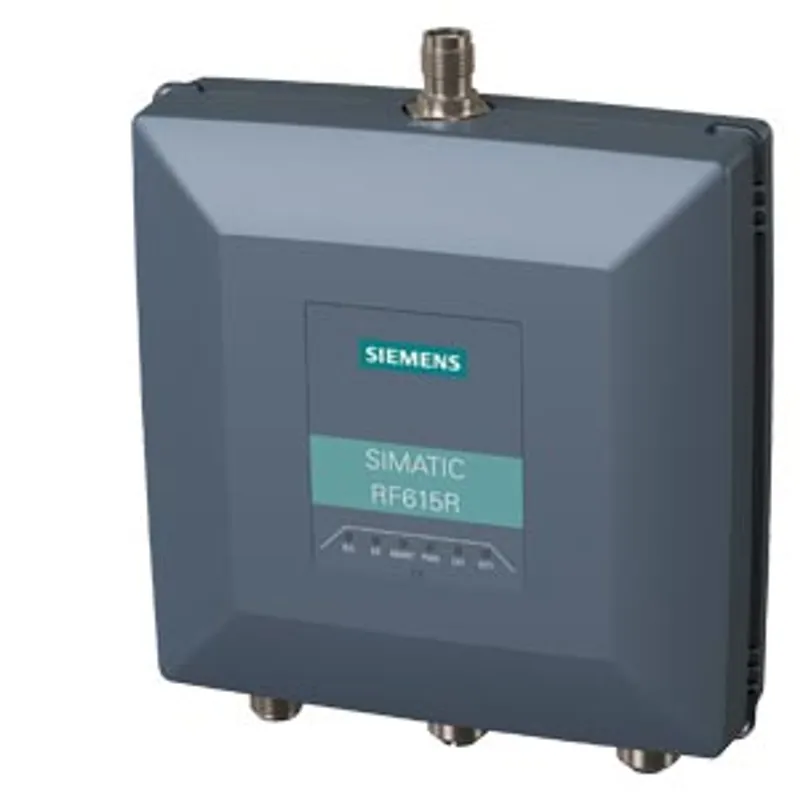

Siemens 6GT2811-6CC10-2AA0

SIMATIC RF600 Reader RF615R CMIIT; Interfaces: 1 Ethernet / PROFINET M12

MPN: 6GT2811-6CC10-2AA0
Category: RF615R

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2811-6CC10-2AA0?

SIMATIC RF600 Reader RF615R CMIIT; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna + 1 ext. antenna port; 1 dig. input, 1 dig. output; 24 V DC; IP67;-25 to +55 °C without accessories.

Specifications

General

product brand name	SIMATIC RF
Technical Product Detail Page	https://i.siemens.com/1P6GT2811-6CC10-2AA0
suitability for operation	RF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP or PROFIBUS via communication module, OPC UA server integrated

radio frequencies

operating frequency	920 ... 925 MHz
transmit power	3 ... 400 mW
effective radiated power — for each external antenna / maximum	1100 mW
effective radiated power — minimum	10 mW
effective radiated power — maximum	200 mW
range / maximum	4 m; With the internal antenna 1.6 m, extended ranges possible, see RF600 System Manual, range table: http://support.automation.siemens.com/WW/view/en/67384964
protocol / with radio transmission	EPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63
transfer rate / with radio transmission / maximum	400 kbit/s
product feature / multitag-capable	Yes
polarization	circular

electrical data

transmission time / for user data — for write access / per byte / typical	2 ms
transmission time / for user data — for read access / per byte / typical	0.15 ms

interfaces

number of external antennas	1
standard for interfaces / for communication	Ethernet, PROFINET, OPC UA, EtherNet/IP, RS422
type of electrical connection — for external antenna(s)	RP-TNC
type of electrical connection — for supply voltage	M12, 8-pin, connector
type of electrical connection — for communications interface	M12, 4-pin, d-coded
type of electrical connection — at the digital inputs/outputs	M12, 5-pin, female connector
number of digital inputs	1
number of digital outputs	1

mechanical data

material	Pocan
color	silver, TI-Grey
mounting distance / relating to metal surfaces / recommended / minimum	0 mm

supply voltage, current consumption, power loss

supply voltage / at DC — rated value	24 V
consumed current / at DC — at 24 V / typical	0.2 A
consumed current / at DC — at 24 V / maximum	0.22 A

ambient conditions

ambient temperature — during operation	-25 ... +55 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
ambient condition / for operation	With operating temperature below -20 °C: Warming-up time at least 10 minutes
protection class IP	IP67
shock resistance	EN 60068-2-27, EN 60068-2-6
shock acceleration	250 m/s²
vibrational acceleration	30 m/s²
resistance to mechanical stress	The maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws

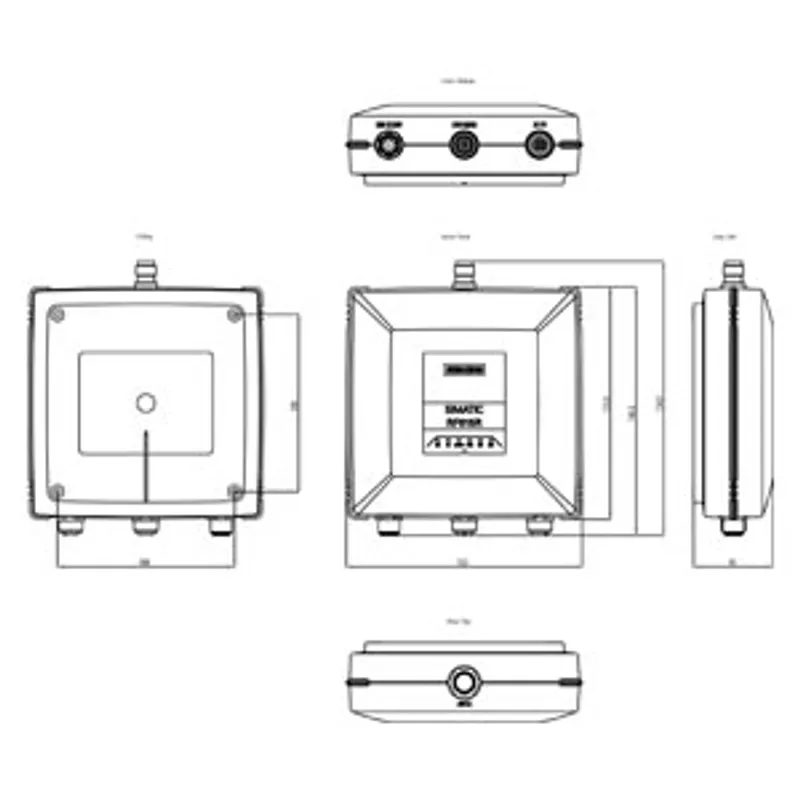

design, dimensions and weights

width	133 mm
height	133 mm
depth	45 mm
net weight	0.37 kg
fastening method	Vesa 100 with 4 x M4 screws
wire length — of antenna cable / minimum	1 m
wire length — of antenna cable / maximum	40 m

product features, product functions, product components / general

display version	LED bars with 6 LED and 1 circulating LED
protocol / is supported / Media Redundancy Protocol (MRP)	Yes
product function / of the PROFINET IO device / is supported / H-Sync forwarding	No
protocol / is supported — LLDP	Yes
protocol / is supported — PROFINET IO protocol	Yes
protocol / is supported — TCP/IP	Yes
protocol / is supported — SNMP v1	Yes
protocol / is supported — SNMP v2	No
protocol / is supported — SNMP v3	Yes
protocol / is supported — DCP	Yes
protocol / is supported — EtherNet/IP protocol	Yes
protocol / is supported — OPC UA	Yes
product feature / silicon-free	Yes

product functions / management, configuration, engineering

type of parameterization	HSP, GSDML, EDS, TO, WBM
type of programming	Ident profile, library with functions, OPC UA, XML
type of computer-switched communication	acyclic communication, TCP/IP

standards, specifications, approvals

certificate of suitability	wireless acc. to CMIIT, OPC UA: embedded UA Server Profile
certificate of suitability — IECEx	No
MTBF	29 a
product function / is supported / identification link	Yes; acc. to IEC 61406-1:2022

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	204.34 kg
global warming potential [CO2 eq] — during manufacturing	71.5 kg
global warming potential [CO2 eq] — during operation	131.97 kg
global warming potential [CO2 eq] — after end of life	0.87 kg

accessories

One external antenna

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: RFID country approval	https://www.siemens.com/rfid-approvals
internet link — to web page: identification and localization systems	https://www.siemens.com/ident
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
