Siemens 6GT2823-0AA00
SIMATIC RF200 handheld reader RF210M, with integr
- MPN
- 6GT2823-0AA00
- Category
- RF210M handheld reader
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

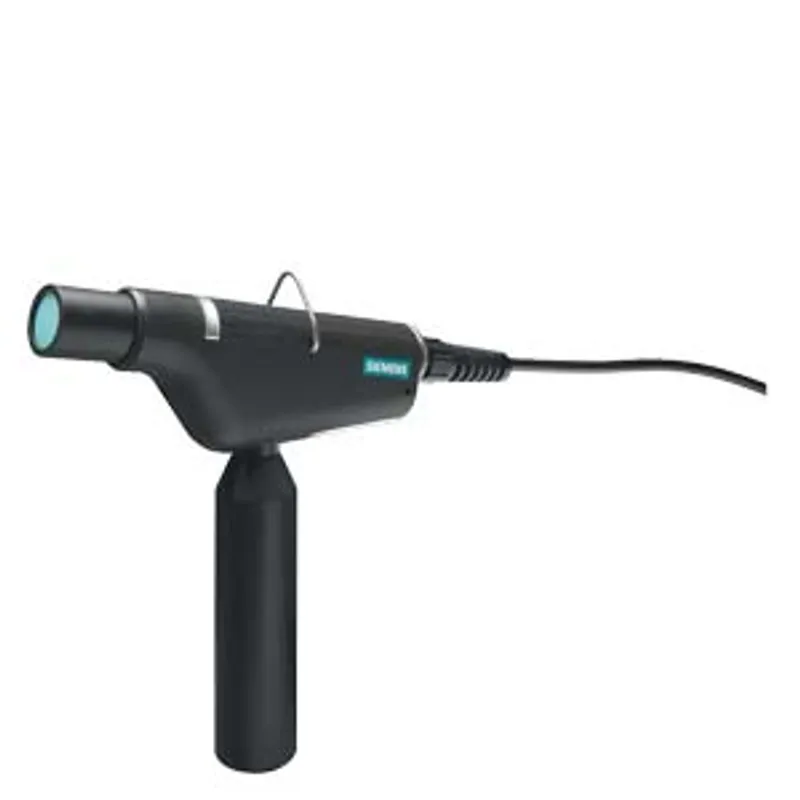

What is the Siemens 6GT2823-0AA00?
SIMATIC RF200 handheld reader RF210M, with integr. RFID write/read unit RF210R, RS422 interface incl. 2 m connection cable.
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2823-0AA00 |
| suitability for operation | RF200/ISO 15693 transponder, to connect to communication modules via spiral cable with usable length of 2 m to 3.5 m |
| range | 0 ... 20 mm |
radio frequencies
| operating frequency / rated value | 13.56 MHz |
electrical data
| protocol / with radio transmission | ISO 15693, ISO 18000-3 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | No |
supply voltage, current consumption, power loss
| type of current supply | 24 V via communication module |
| type of battery | -- |
ambient conditions
| ambient temperature — during operation | -20 ... +50 °C |
| ambient temperature — during storage | -25 ... +60 °C |
| height of fall / maximum | 1.5 m |
| protection class IP | IP54 |

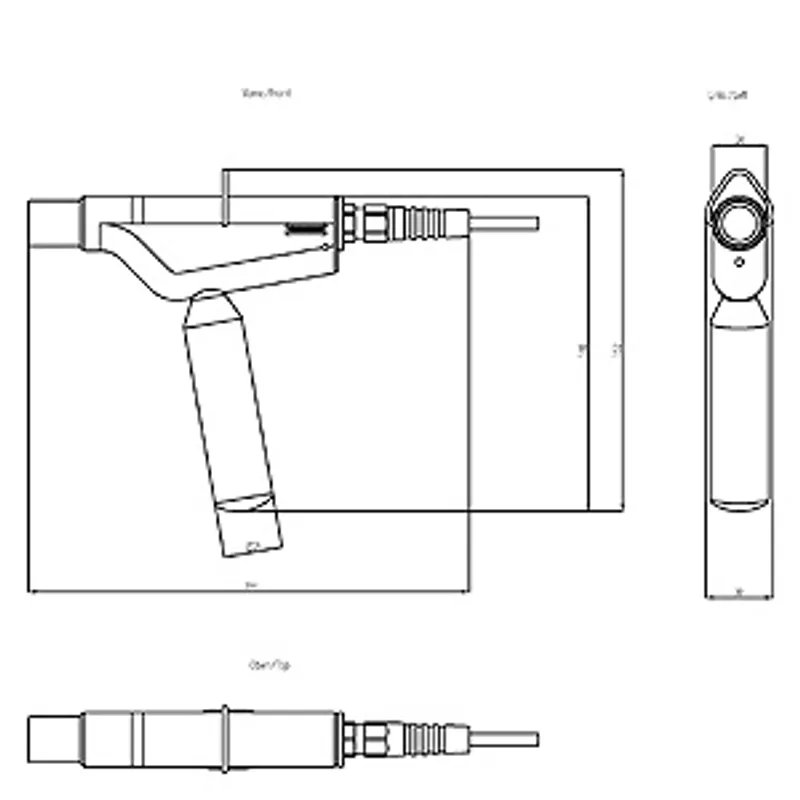

design, dimensions and weights
| width | 195 mm |
| height | 140 mm |
| depth | 26 mm |
| net weight | 0.46 kg |
product features, product functions, product components / general
| design of the display | 3 color LED |
| design of the interface | M12 8-pole with RS422 at spiral cable, which is permanently fixed to the reader |
product functions / management, configuration, engineering
| product function / of the software | Function blocks for execution of ISO15693 transponders |
| type of programming | Function blocks FB 45/55, ident profile |
standards, specifications, approvals
| certificate of suitability | Wireless according to R&TTE guidelines EN300 330 and EN 301489, FCC, UL/CSA |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 50.4 kg |
| global warming potential [CO2 eq] — during manufacturing | 10.7 kg |
| global warming potential [CO2 eq] — during operation | 39.4 kg |
| global warming potential [CO2 eq] — after end of life | 0.3 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: RFID country approval | https://www.siemens.com/rfid-approvals |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2823-0AA00: frequently asked questions
When can 6GT2823-0AA00 be shipped?
6GT2823-0AA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2823-0AA00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2823-0AA00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2823-0AA00, subject to availability and destination.
