Siemens 6GT2700-7DC05

SIMATIC RTLS transponder RTLS4084T, plus, UWB, phase, ETSI, without battery.

MPN: 6GT2700-7DC05
Category: SIMATIC RTLS4084T

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2700-7DC05?

SIMATIC RTLS transponder RTLS4084T, plus, UWB, phase, ETSI, without battery.

Specifications

General

product brand name	SIMATIC RTLS
Technical Product Detail Page	https://i.siemens.com/1P6GT2700-7DC05

radio frequencies

operating frequency / 1	3100 ... 7000 MHz; depending on the country approvals
range / 1 / maximum	30 m; Range information for open air applications; always follow the manual
accuracy of localization / 1 — typical	0.1 m
protocol / 1 / with radio transmission	IEEE 802.15.4-2011 UWB
transfer rate / 1 / with radio transmission / maximum	850 kbit/s
operating frequency / 2	2400 ... 2480 MHz; depending on the country approvals
range / 2 / maximum	50 m; Range information for open air applications; always follow the manual
accuracy of localization / 2 — typical	3 m
protocol / 2 / with radio transmission	IEEE 802.15.4
transfer rate / 2 / with radio transmission / maximum	1000 kbit/s

electrical data

type of voltage supply	Battery pack
product component / backup battery	No
product feature / replaceable battery	Yes
battery life / typical	8 a; Standby mode: 8 years, UWB localization in 1 second cycle: 18 months, display update in 10 second cycle: 5 months

memory

type of memory	FLASH
type of memory organization	memory for 5 background images, 20 fonts and 20 text fields for 58 characters each
number of write cycles / at ambient temperature < 40 °C / maximum	100000
data retention time / at ambient temperature < 40 °C / not less than	20 a
property of memory	Configuration memory

mechanical data

material	PC
color	Ti gray

ambient conditions

ambient temperature — during read/write access	-20 ... +50 °C
ambient temperature — outside the read/write area	-20 ... +50 °C
ambient temperature — during storage	-20 ... +50 °C
ambient condition / for operation	Temperature for display operation > 0 °C
protection class IP	IP54

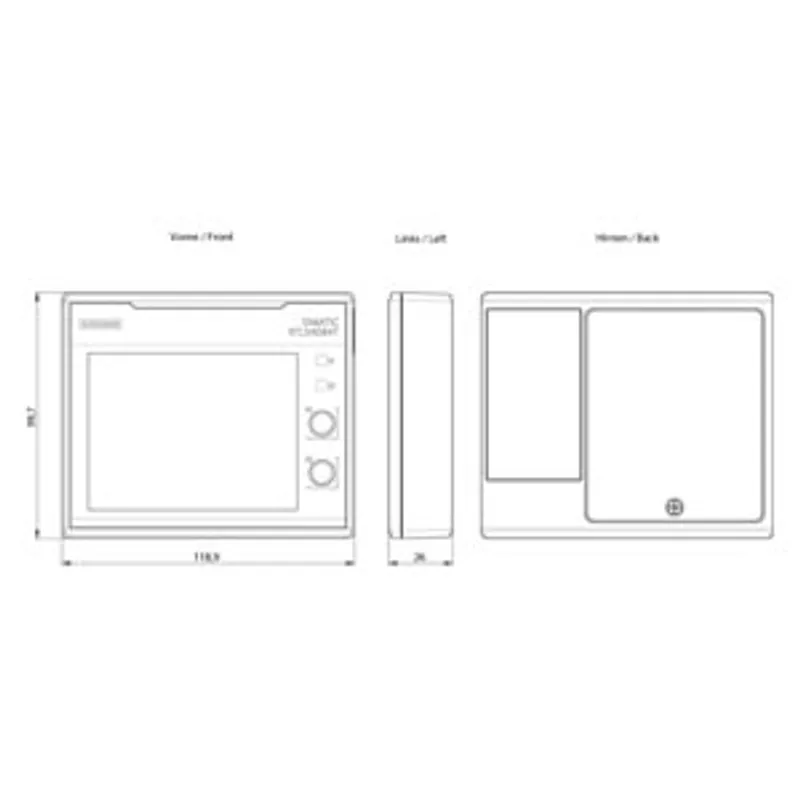

design, dimensions and weights

width	118.6 mm
height	26 mm
depth	99.4 mm
net weight	183 g
fastening method	Customer-specific, mounting bag, double-sided tape

product features, product functions, product components / general

display version	2 two-color LED, 4.3'' ePaper display with 400 x 300 pixels
operator element version	2 function keys
product feature — silicon-free	Yes

standards, specifications, approvals

certificate of suitability	EU conformity according to RED, RoHS
product function / is supported / identification link	Yes; acc. to IEC 61406-1:2022

accessories

SIMATIC RTLS battery pack 4 x SAFT LS14500

further information / internet links

internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: identification and localization systems	https://www.siemens.com/ident
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2700-7DC05PDF

6GT2700-7DC05: frequently asked questions

When can 6GT2700-7DC05 be shipped?

6GT2700-7DC05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GT2700-7DC05 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GT2700-7DC05 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2700-7DC05, subject to availability and destination.
