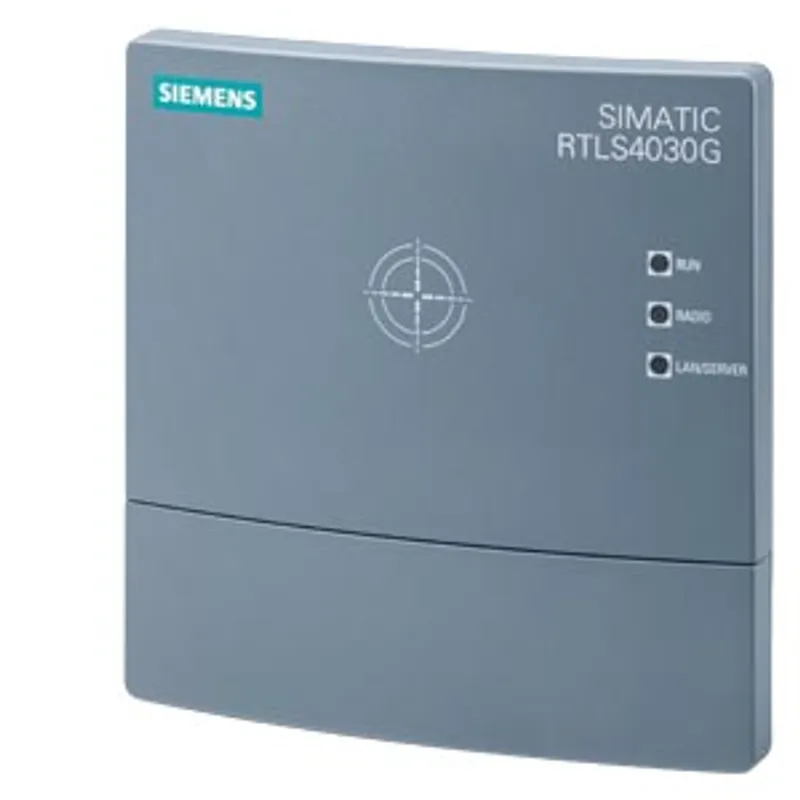

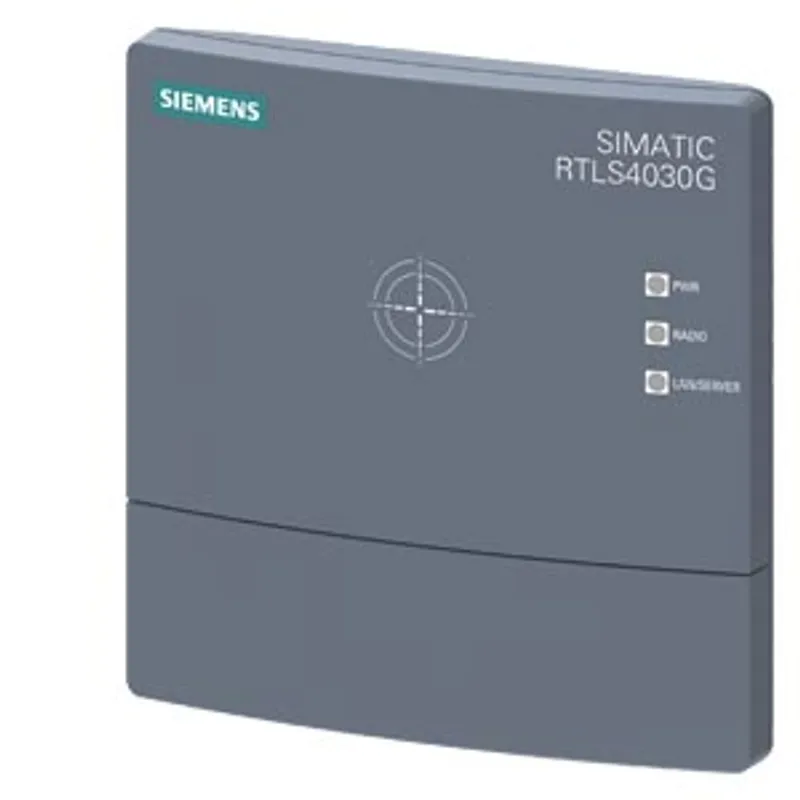

Siemens 6GT2701-5DB13
SIMATIC RTLS Gateway RTLS4030G, UWB, phase, FCC.
- MPN
- 6GT2701-5DB13
- Category
- SIMATIC RTLS4030G
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2701-5DB13?
SIMATIC RTLS Gateway RTLS4030G, UWB, phase, FCC.
Specifications
General
| product brand name | SIMATIC RTLS |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2701-5DB13 |
| suitability for operation | RTLS4000 with UWB, phase technology |
radio frequencies
| operating frequency / 1 | 3100 ... 7000 MHz; depending on the country approvals |
| equivalent isotropically radiated power / 1 | 0.001 ... 0.037 mW |
| range / 1 / maximum | 30 m; Range information for open air applications; always follow the manual |
| accuracy of localization / 1 / typical | 0.1 m |
| protocol / 1 / with radio transmission | IEEE 802.15.4-2015 UWB HRP PHY |
| transfer rate / 1 / with radio transmission / maximum | 850 kbit/s |
| operating frequency / 2 | 2400 ... 2480 MHz; depending on the country approvals |
| equivalent isotropically radiated power / 2 | 0.022 ... 100 mW |
| range / 2 / maximum | 500 m; Range information for open air applications; always follow the manual |
| accuracy of localization / 2 / typical | 3 m |
| protocol / 2 / with radio transmission | IEEE 802.15.4 |
| transfer rate / 2 / with radio transmission / maximum | 1000 kbit/s |
interfaces
| standard for interfaces / for communication | Ethernet, MESH Network |
| type of electrical connection — for supply voltage | Bulgin PX0412/03P, 3-pin connector, PoE over RJ45 acc. to IEEE 802.3af |
| type of electrical connection — for communications interface | RJ45, Amphenol LTW RCP-5SPFFHTCU7001 |
| type of electrical connection — at the digital inputs/outputs | Bulgin PX0412/03P, 3-pin connector |
| number of digital inputs | 0 |
| number of digital outputs | 1 |
mechanical data
| material | ASA+PC |
| color | titanium gray |
supply voltage, current consumption, power loss
| supply voltage / at DC — rated value | 24 V |
| consumed current / at DC — at 24 V / maximum | 0.38 A |
ambient conditions
| ambient temperature — during operation | -15 ... +50 °C |
| ambient temperature — during storage | -15 ... +50 °C |
| ambient temperature — during transport | -15 ... +50 °C |
| protection class IP | IP65 |

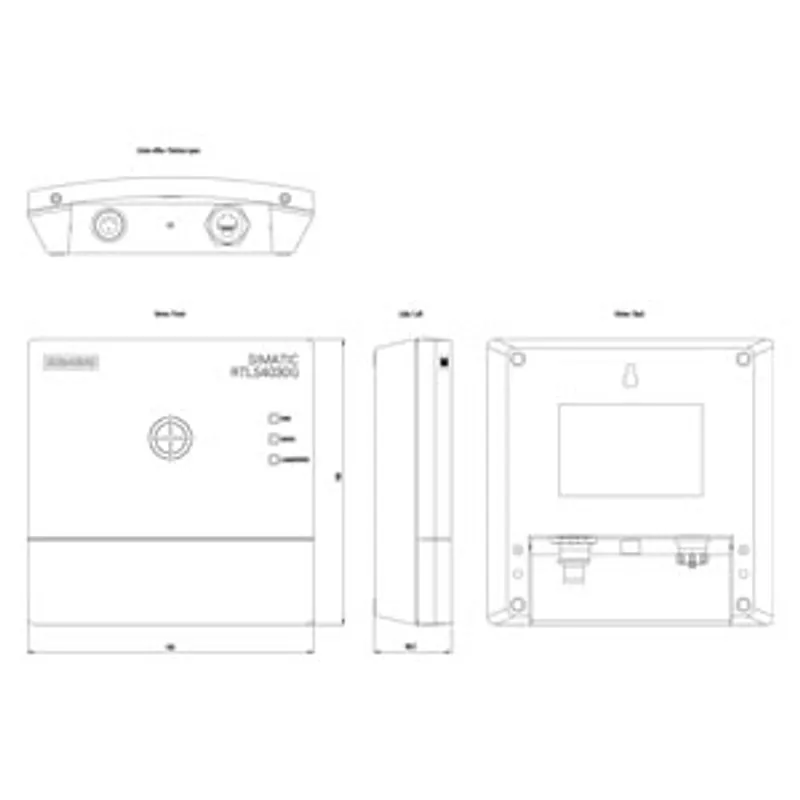

design, dimensions and weights
| width | 180 mm |
| height | 48 mm |
| depth | 180 mm |
| net weight | 0.65 kg |
| fastening method | 3 M4 screws |
product features, product functions, product components / general
| display version | 3 LEDs |
| protocol / is supported / Media Redundancy Protocol (MRP) | No |
| protocol / is supported — LLDP | No |
| protocol / is supported — PROFINET IO protocol | No |
| protocol / is supported — TCP/IP | Yes |
| protocol / is supported — SNMP v1 | No |
| protocol / is supported — SNMP v2 | No |
| protocol / is supported — SNMP v3 | No |
| protocol / is supported — DCP | No |
| protocol / is supported — EtherNet/IP protocol | No |
| protocol / is supported — OPC UA | No |
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability | EU conformity according to RED, RoHS, FCC |
| certificate of suitability — IECEx | No |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 144.37 kg |
| global warming potential [CO2 eq] — during manufacturing | 12.12 kg |
| global warming potential [CO2 eq] — during operation | 131.41 kg |
| global warming potential [CO2 eq] — after end of life | 0.84 kg |
accessories
| accessories | Corner mount bracket, mounting plate for ceiling suspension |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: RTLS country approval | https://www.siemens.com/rtls-approvals |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
