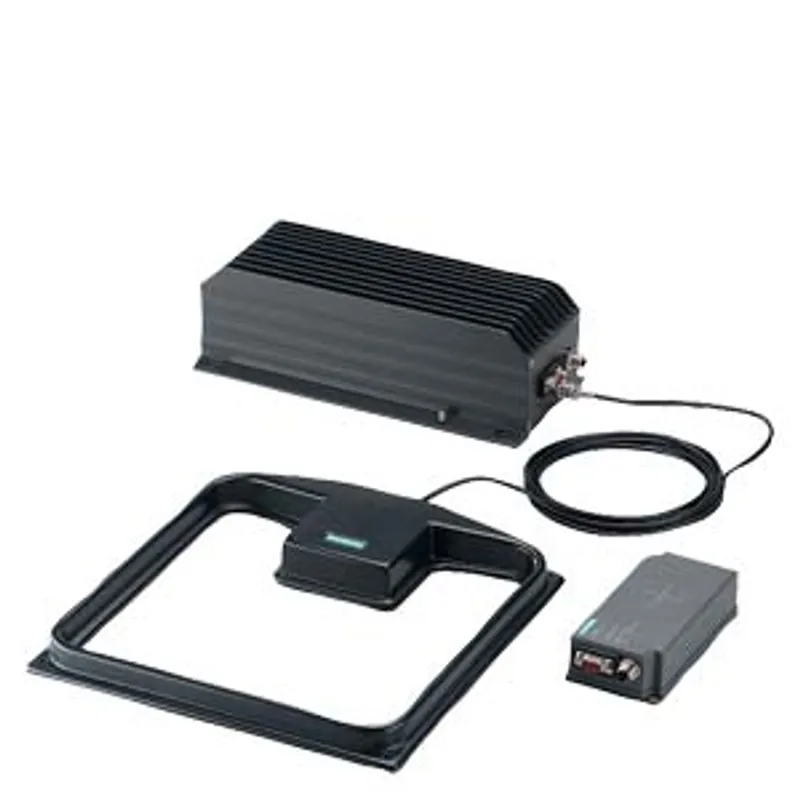

Siemens 6GT2691-0CH33

MOBY D Antenna connection cable for ANT D5

MPN: 6GT2691-0CH33

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2691-0CH33?

MOBY D Antenna connection cable for ANT D5, ANT D6 and ANT D10 between antenna and SLG D10/SLG D10S or RF290 Antenna switch, IP65, PVC, length 3.3 m.

Specifications

General

product brand name	SIMATIC RF
Technical Product Detail Page	https://i.siemens.com/1P6GT2691-0CH33
suitability for use	Plug-in cable for connecting a long-range HF antenna to a reader via TNC connector
cable designation	RG58 C/U
wire length	3.3 m

electrical data

number of electrical connections	2
type of electrical connection	TNC (male, straight) / TNC (male, straight)
impedance — rated value	50 Ω
loop resistance per length / maximum	53 mΩ/m
operating voltage — maximum	1400 V

mechanical data

design of the shield	CuG tin-plated
outer diameter — of cable sheath	4.85 mm
material — of dielectric	PE
material — of cable sheath	PVC
color — of cable sheath	Black
bending radius — with single bend / minimum permissible	25 mm
weight per length	36 kg/km

ambient conditions

ambient temperature — during operation	-35 ... +80 °C
ambient temperature — during storage	-35 ... +80 °C
ambient temperature — during transport	-35 ... +80 °C
ambient temperature — during installation	-35 ... +80 °C

standards, specifications, approvals

UL/ETL listing / 300 V Rating

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
