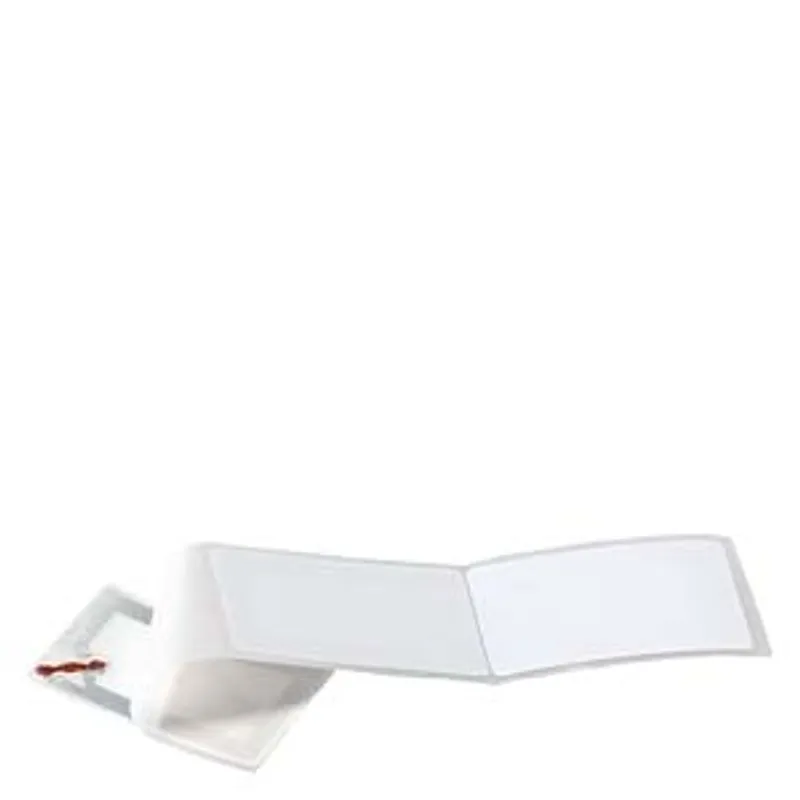

Siemens 6GT2600-1AA01-0AX0
HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K
- MPN
- 6GT2600-1AA01-0AX0
- Category
- MDS D165/D261
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 6GT2600-1AA01-0AX0?
HF label MDS D261 for RF200/RF300 ISO/MOBY D, PET label, adhesive, ISO 15693, chip type STM LRI2K, user memory 316 bytes/2528 bits; 55x 55x 0.3 mm (LxWxH); minimum order quantity 1000 units.
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2600-1AA01-0AX0 |
radio frequencies
| operating frequency / rated value | 13.56 MHz |
| range / maximum | 450 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
electrical data
| product component / backup battery | No |
memory
| type of memory | EEPROM |
| storage capacity / of the user memory | 316 byte |
| type of memory organization | UID (permanently coded) 8 bytes, user memory 316 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI-x2 |
mechanical data
| material | Top side + inlay: PET, antenna aluminum |
| color | white |
| mounting distance / relating to metal surfaces / recommended / minimum | 25 mm |
ambient conditions
| ambient temperature — during read/write access | -25 ... +85 °C |
| ambient temperature — outside the read/write area | -25 ... +85 °C |
| ambient temperature — during storage | 20 ... 30 °C |
| protection class IP | IP65 |
| resistance to mechanical stress | Maximum storage period: 2 years (determined by durability of the adhesive) |
design, dimensions and weights
| width | 55 mm |
| height | 0.3 mm |
| depth | 55 mm |
| net weight | 1 g |
| fastening method | one-side adhesible |
product features, product functions, product components / general
| product feature — printable | Yes |
| printing process | Thermal transfer process |
standards, specifications, approvals
| certificate of suitability — IECEx | No |
further information / internet links
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
