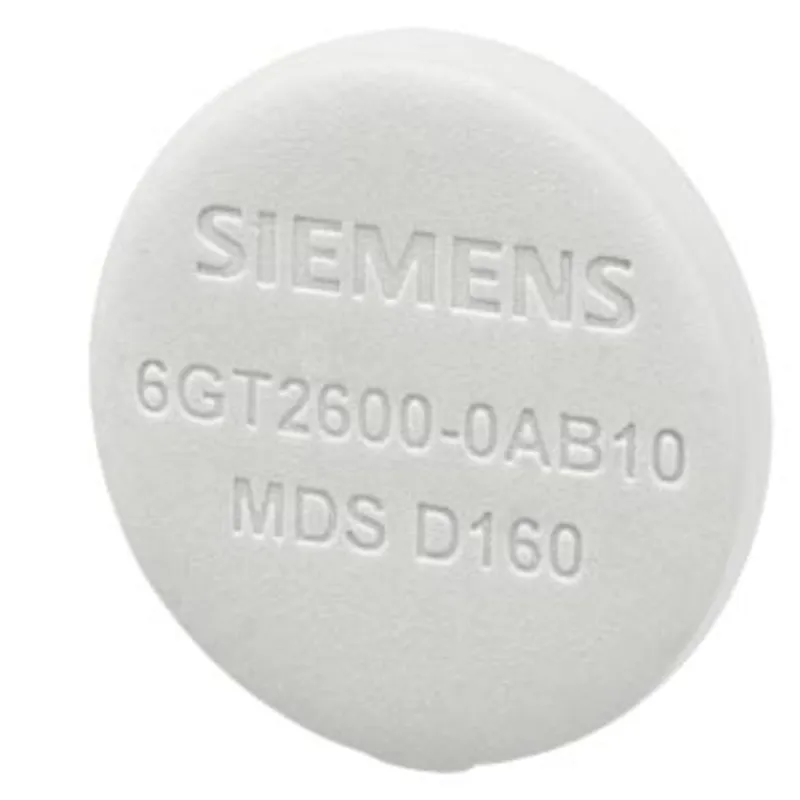

Siemens 6GT2600-0AB10
Transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type
- MPN
- 6GT2600-0AB10
- Category
- MDS D160
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2600-0AB10?
transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2600-0AB10 |
radio frequencies
| operating frequency / rated value | 13.56 MHz |
| range / maximum | 180 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| protocol / with radio transmission | ISO 15693 |
| transfer rate / with radio transmission / maximum | 26.5 kbit/s |
| product feature / multitag-capable | Yes |
electrical data
| product component / backup battery | No |
memory
| type of memory | EEPROM |
| storage capacity / of the user memory | 112 byte |
| type of memory organization | UID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
| type of transponder chip used | NXP I-Code SLI |
mechanical data
| material | PPS |
| color | beige |
| mounting distance / relating to metal surfaces / recommended / minimum | 10 mm |
ambient conditions
| ambient temperature — during read/write access | -25 ... +85 °C |
| ambient temperature — outside the read/write area | -40 ... +175 °C |
| ambient temperature — during storage | -25 ... +100 °C |
| ambient condition / for operation | Operating temperature permanent up to 100 °C, up to 175 °C min. 100 washing cycles, one time up to 220 °C for 30 s |
| protection class IP | IP68/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 400 m/s² |
| vibrational acceleration | 100 m/s² |
design, dimensions and weights

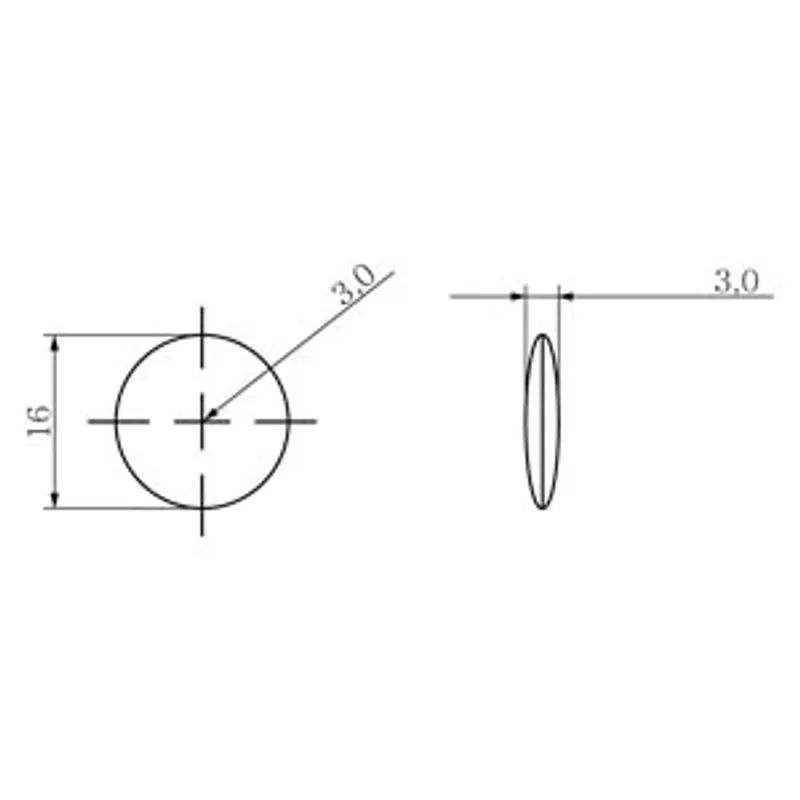

| height | 3 mm |
| diameter | 16 mm |
| net weight | 1.2 g |
| fastening method | patch, sewing, gluing |
product features, product functions, product components / general
| product feature — printable | No |
standards, specifications, approvals
| certificate of suitability — IECEx | No |
| MTBF | 228 a |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 0.93 kg |
| global warming potential [CO2 eq] — during manufacturing | 0.88 kg |
| global warming potential [CO2 eq] — during operation | 0.00041 kg |
| global warming potential [CO2 eq] — after end of life | 0.05 kg |
accessories
| accessories | Mounting support and spacer |
further information / internet links
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2600-0AB10: frequently asked questions
When can 6GT2600-0AB10 be shipped?
6GT2600-0AB10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2600-0AB10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2600-0AB10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2600-0AB10, subject to availability and destination.
