Siemens 6GT2002-1HD01

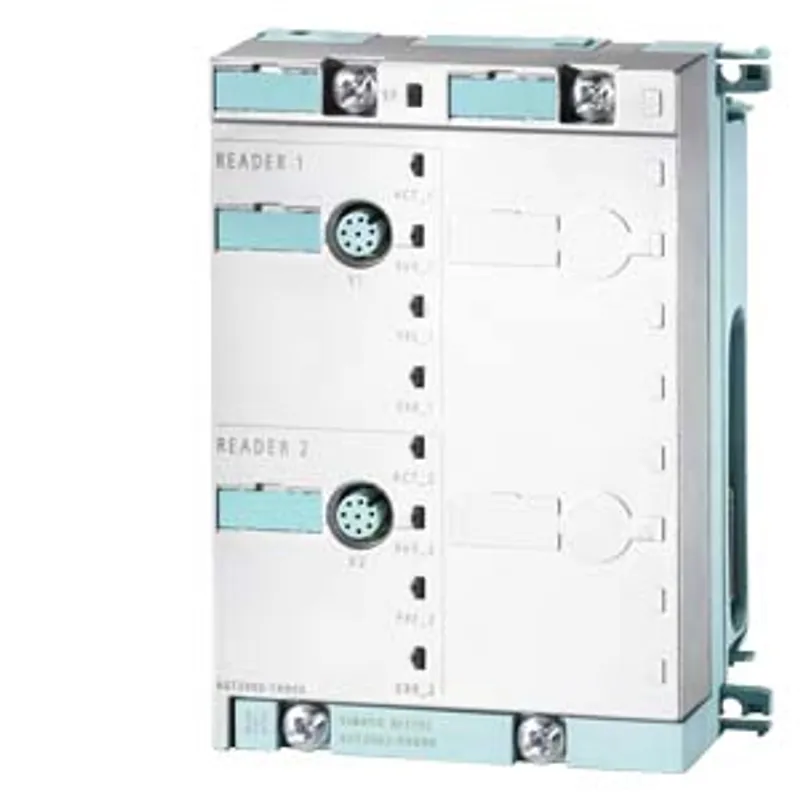

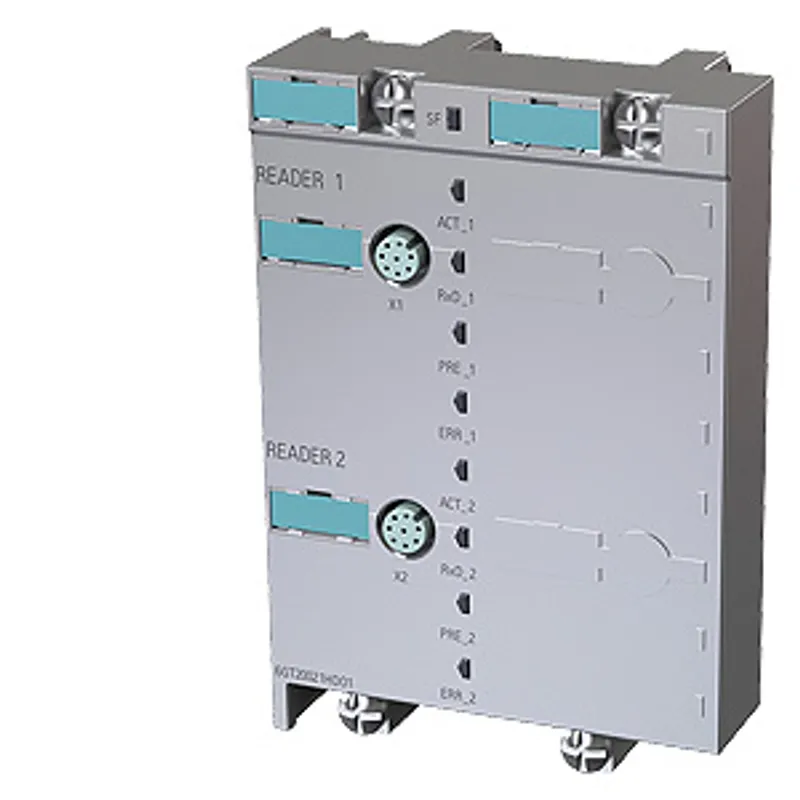

RFID connection block for RF170C for connection of 2 readers via M12 plug-in connector RS-422 or RS232.

MPN: 6GT2002-1HD01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2002-1HD01?

RFID connection block for RF170C for connection of 2 readers via M12 plug-in connector RS-422 or RS232.

Specifications

General

product brand name	SIMATIC RF
Technical Product Detail Page	https://i.siemens.com/1P6GT2002-1HD01
suitability for operation	Connection block for RF170C, to connect readers and RS232 devices

interfaces

design of the interface / for point-to-point connection	RS422/RS232
number of readers / connectable	2
design of the interface / to the reader / for communication	M12, 8-pin

mechanical data

material	Die-cast zinc
color	silver
tightening torque / of the screw for securing the equipment / maximum	1.5 N·m

supply voltage, current consumption, power loss

supply voltage / at DC — rated value

24 V

ambient conditions

ambient temperature — during operation	-25 ... +55 °C
ambient temperature — during storage	-40 ... +70 °C
ambient temperature — during transport	-40 ... +70 °C
protection class IP	IP67
shock resistance	According to IEC 61131-2
shock acceleration	300 m/s²
vibrational acceleration	100 m/s²

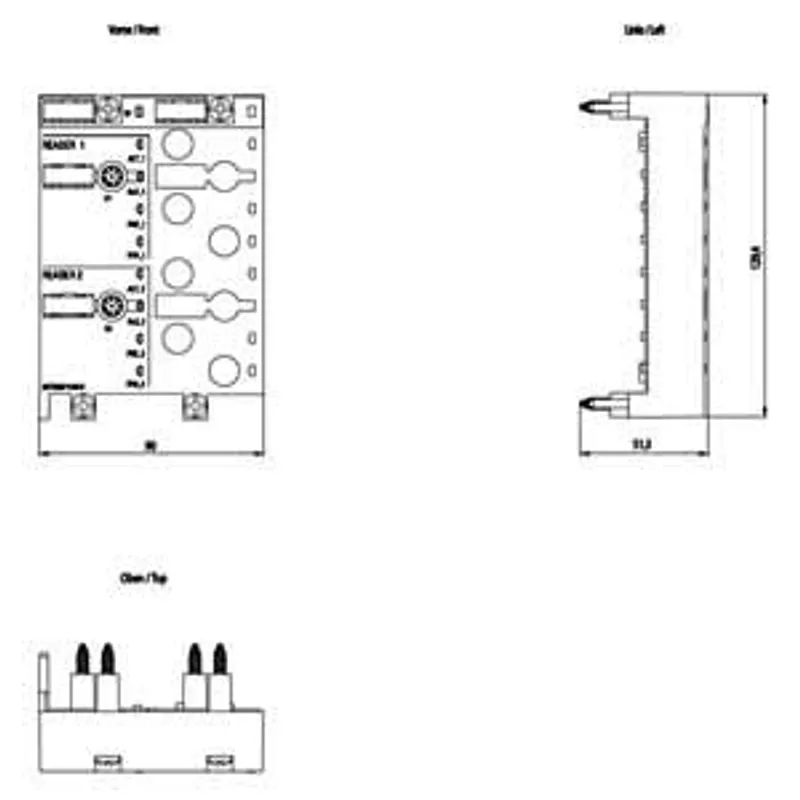

design, dimensions and weights

width	90 mm
height	130 mm
depth	25 mm
net weight	0.5 kg
fastening method	4 screws included

product features, product functions, product components / general

display version

4 LEDs per reader connection, 1 LEDs for device status

standards, specifications, approvals

certificate of suitability	CE, FCC, cULus
MTBF	1100 a
product function / is supported / identification link	No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	101.43 kg
global warming potential [CO2 eq] — during manufacturing	16 kg
global warming potential [CO2 eq] — during operation	85.3 kg
global warming potential [CO2 eq] — after end of life	0.13 kg

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: identification and localization systems	https://www.siemens.com/ident
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2002-1HD01PDF
