Siemens 6GT2002-0HD01
RFID communication module RF170C for Installation in ET 200pro; Basic module for connection of 2 readers
- MPN
- 6GT2002-0HD01
- Category
- RF170C
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2002-0HD01?
RFID communication module RF170C for Installation in ET 200pro; Basic module for connection of 2 readers; with RS422 or RS232 without connection block.
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2002-0HD01 |
| suitability for operation | ET 200pro distributed I/O together with RF200/300/1000, MV300/400/500, MOBY D/E/I/U and RS-232 devices |
transfer rate
| transfer rate / at the point-to-point connection / serial / maximum | 115.2 kbit/s |
interfaces
| design of the interface / for point-to-point connection | RS422/RS232 via connection block |
| number of readers / connectable | 2 |
| type of electrical connection — of the backplane bus | ET 200pro backplane bus |
| type of electrical connection — of the PROFIBUS interface | (according to the head module) |
| type of electrical connection — of Industrial Ethernet interface | (according to the head module) |
| type of electrical connection — for supply voltage | ET 200pro backplane bus |
| design of the interface / to the reader / for communication | Internal plug to the connection block |
mechanical data
| material | Thermoplastic (Valox 467, fiberglass reinforced) |
| color | IP Basic 714 |
| tightening torque / of the screw for securing the equipment / maximum | 1.5 N·m |
supply voltage, current consumption, power loss
| supply voltage / at DC — rated value | 24 V |
| consumed current — at DC / at 24 V / without connected devices / typical | 0.13 A |
| consumed current — from supply voltage 1L+ / maximum | 1 A |
ambient conditions
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| protection class IP | IP67 |
| shock resistance | According to IEC 61131-2 |
| shock acceleration | 300 m/s² |
| vibrational acceleration | 100 m/s² |

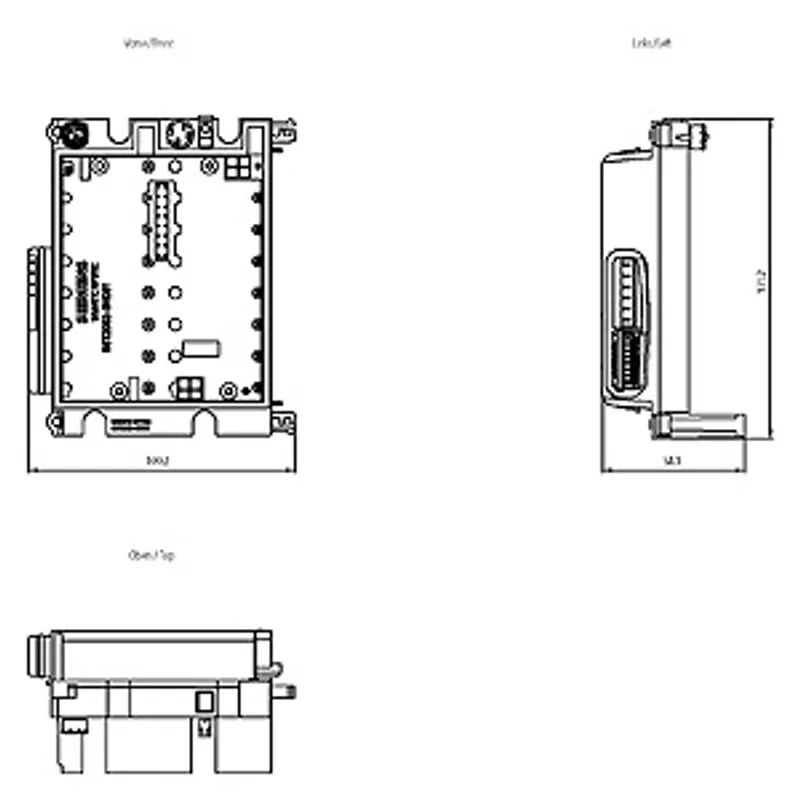

design, dimensions and weights
| width | 90 mm |
| height | 130 mm |
| depth | 35 mm |
| net weight | 0.27 kg |
| fastening method | ET 200pro rack |
| wire length / for RS 422 interface / maximum | 1000 m |
product features, product functions, product components / general
| display version | (see connection block) |
| product function / addressable transponder file handler | No |
| protocol / is supported — S7 communication | Yes |
product functions / management, configuration, engineering
| type of parameterization | HSP |
| type of programming | FB 45, FB 55, ID profile, library with functions, (FC 45/55 with restricted functionality) |
| type of computer-switched communication | acyclic communication |
standards, specifications, approvals
| certificate of suitability | CE, FCC, cULus |
| MTBF | 77 a |
| product function / is supported / identification link | No |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 101.43 kg |
| global warming potential [CO2 eq] — during manufacturing | 16 kg |
| global warming potential [CO2 eq] — during operation | 85.3 kg |
| global warming potential [CO2 eq] — after end of life | 0.13 kg |
accessories
| accessories | Connection block for RF170C |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2002-0HD01: frequently asked questions
When can 6GT2002-0HD01 be shipped?
6GT2002-0HD01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2002-0HD01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2002-0HD01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2002-0HD01, subject to availability and destination.
