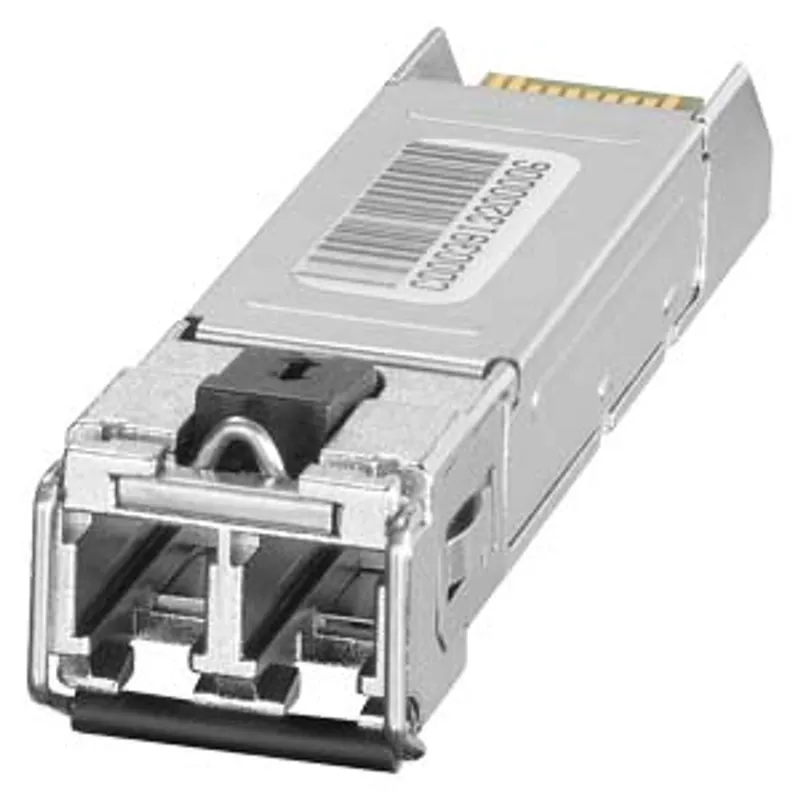

Siemens 6GK5994-1AT00-8AA0
SCALANCE X accessory; Plug-in transceiver SFP994-1; 1x 25000 Mbps LC port
- MPN
- 6GK5994-1AT00-8AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5994-1AT00-8AA0?
SCALANCE X accessory; Plug-in transceiver SFP994-1; 1x 25000 Mbps LC port, optical multimode glass up to max. 100 m; 25GBase SR;
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5994-1AT00-8AA0 |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 25 Gbit/s LC-Ports (SX) | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 850 nm; Multi-mode |
| connectable optical power relative to 1 mW — of the transmitter output / minimum | -9 dB |
| connectable optical power relative to 1 mW — of the transmitter output / maximum | 2.4 dB |
| connectable optical power relative to 1 mW — of the receiver input / maximum | 2.4 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -11 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB |
| range / at the optical interface / depending on the optical fiber used | 0.02 ... 0.1 km |
| transmission method / for connection type 1 | 25GBASE-SR |
ambient conditions
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 85 % |
| protection class IP | IP20 |
design, dimensions and weights
| design | SFP Module |
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| net weight | 0.02 kg |
| fastening method | latched |
standards, specifications, approvals
| standard — for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
| standard — for emitted interference | EN 61000-6-4 (Class A) |
| standard — for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | Yes |
| certificate of suitability — KC approval | No |
| certificate of suitability — CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| certificate of suitability — CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| certificate of suitability — E1 approval | No |
| Marine classification association — French marine classification society (BV) | Yes |
| MTBF | 2774 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5994-1AT00-8AA0: frequently asked questions
When can 6GK5994-1AT00-8AA0 be shipped?
6GK5994-1AT00-8AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK5994-1AT00-8AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK5994-1AT00-8AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5994-1AT00-8AA0, subject to availability and destination.
