Plug-in transceivers for SCALANCE Parts
Compare Plug-in transceivers for SCALANCE
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | connectable optical power relative to 1 mW — of the transmitter output / maximum | optical sensitivity relating to 1 mW / of the receiver input / minimum | range / at the optical interface / depending on the optical fiber used | transmission method / for connection type 1 | MTBF |
|---|---|---|---|---|---|
| 6GK5991-1AF01-8AA0 | -8 dB | -31 dB | 15 km | 100Base-LX | 219 a |
| 6GK5991-1AF00-8GA0 | -8 dB | -31 dB | 0 ... 26 km | 100BASE-LX | 370 a |

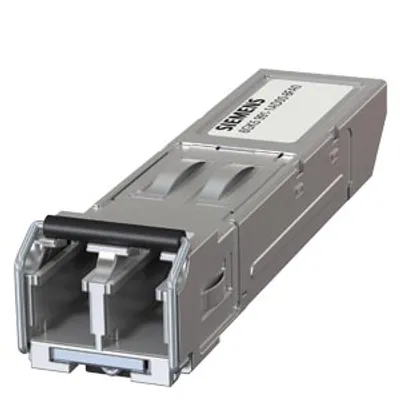

| 6GK5991-1AF00-8FA0 | -8 dB | -28 dB | 0 ... 26 km | 100BASE-LX | 490 a |
| 6GK5991-1AF00-8AC0 | -8 dB | -28 dB | 0 ... 26 km | 100BASE-LX | 490 a |
| 6GK5991-1AF00-8AA0 | -8 dB | -28 dB | 0 ... 26 km | 100BASE-LX | 490 a |

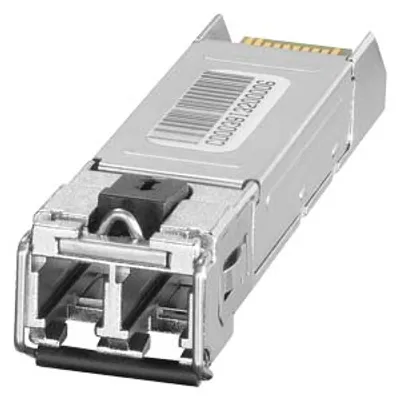

| 6GK5991-1AE30-8AA0 | 5 dB | -42 dB | 61 ... 200 km | 100BASE-LX | 380 a |
| 6GK5994-1AU00-8AA0 | 3 dB | -12 dB | 0 ... 10 km | 25GBASE-LR | 2477 a |
| 6GK5994-1AT00-8AA0 | 2.4 dB | -11 dB | 0.02 ... 0.1 km | 25GBASE-SR | 2774 a |
| 6GK5992-1AM00-8FA0 | -3 dB | -19 dB | 0 ... 10 km | 1000BASE-LX | 600 a |
| 6GK5992-1AM00-8AC0 | -3 dB | -19 dB | 0 ... 10 km | 1000BASE-LX | 600 a |
| 6GK5992-1AM00-8AA0 | -3 dB | -19 dB | 0 ... 10 km | 1000BASE-LX | 600 a |
| 6GK5992-1AL01-8AA0 | -1 dB | -18 dB | 0.3 ... 0.55 km | 1000BASE-SX | 175 a |
| 6GK5992-1AL00-8TA0 | -4 dB | -17 dB | 0 ... 0.5 km | 1000BASE-BX | 340 a |

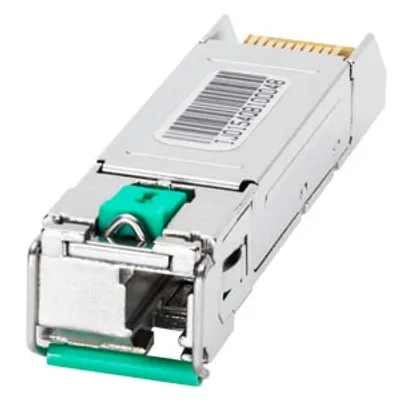

| 6GK5992-1AL00-8RA0 | -4 dB | -17 dB | 0 ... 0.5 km | 1000BASE-BX | 340 a |
Common to all listed parts
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| protection class IP | IP20 |
| design | SFP Module |
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
