Siemens 6GK5998-3GS01-2AC2
SCALANCE LPE9413 Industrial Edge Local Processing Engine; 64-bit ARMv8 (4-core); 4 GB RAM; 40 GB eMMC(pSLC)
- MPN
- 6GK5998-3GS01-2AC2
- Category
- SCALANCE LPE
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

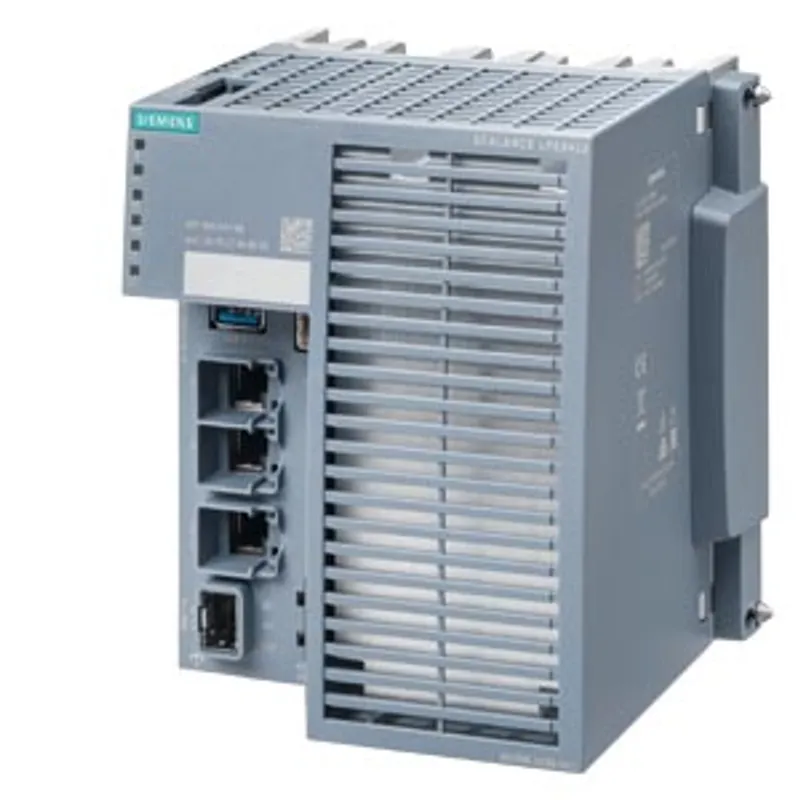

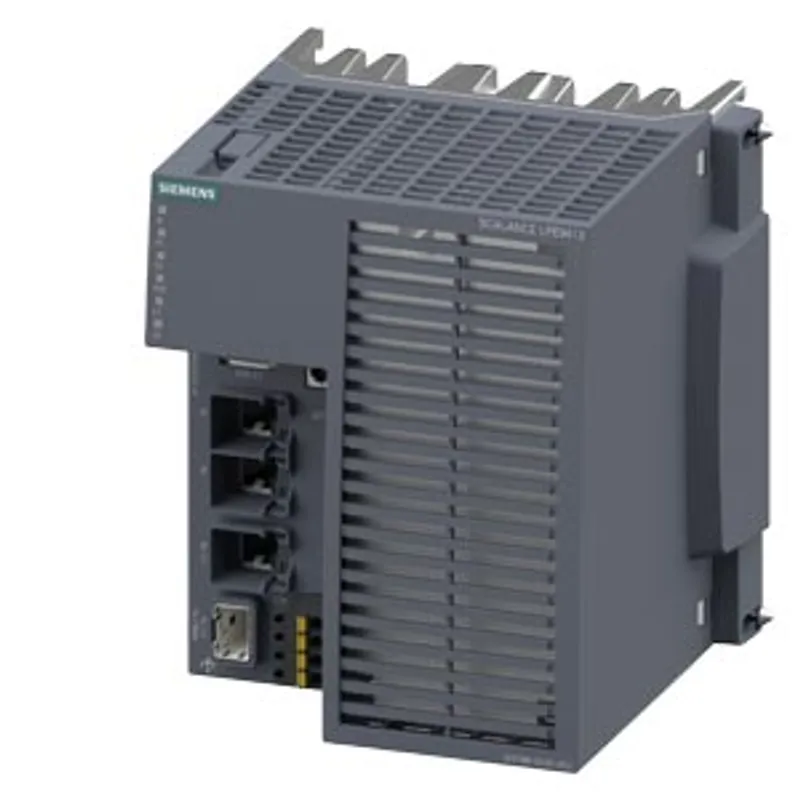

What is the Siemens 6GK5998-3GS01-2AC2?
SCALANCE LPE9413 Industrial Edge Local Processing Engine; 64-bit ARMv8 (4-core); 4 GB RAM; 40 GB eMMC(pSLC); 3x 10/100/1000 Mbps RJ45; 1x 100/1000 Mbps SFP; contains 1 combo port; 1xUSB3.0; CLP slot; diagnostics LED; redundant power supply; assembly: DIN rail/S7 mounting rail
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5998-3GS01-2AC2 |
hardware configuration
| design of the processor | 64Bit ARMv8 A53, 4 core |
| processor clock frequency | 1.6 GHz |
| design of the drive/storage medium / solid-state disk | Yes; eMMC (pSLC) |
| storage capacity / on solid-state disk | 38 Gibyte |
| storage capacity / of the RAM | 4 Gibyte |
| operating system / pre-installed | Siemens Industrial Edge |
| product component / operating system / docker | Yes |
transfer rate
| transfer rate | 10, 100, 1000 Mbit/s |
interfaces / for communication / integrated
| number of 10/100/1000 Mbit/s RJ45 ports / integrated / with securing collar | 3 |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 1; 100 or 1000 Mbit/s SFP plug-in transceiver |
interfaces / other
| number of interfaces / according to USB | 2 |
| number of USB-A ports | 1 |
| number of USB-B ports | 1 |
| design of the removable storage / CLP | Yes |
supply voltage, current consumption, power loss
| product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 16 W |
| power loss [W] / at DC / at 24 V / typical | 10.56 W |
| consumed current / at DC / at 24 V / typical | 0.4 A |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.66 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 3,15 A / 125 V |
ambient conditions
| ambient temperature — during operation | -40 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |

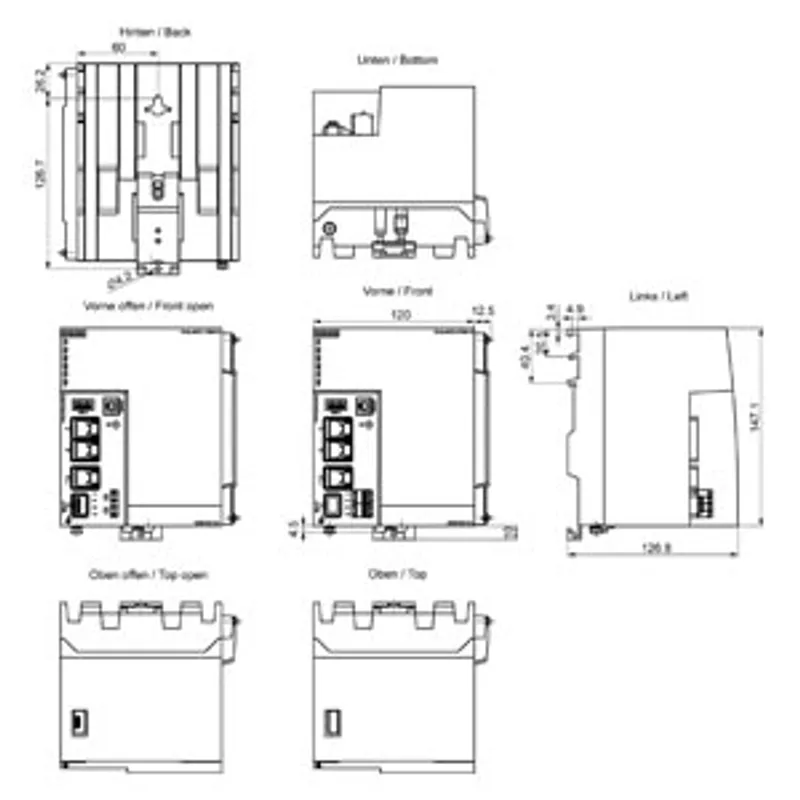

design, dimensions and weights
| design | compact |
| width | 134 mm |
| height | 147 mm |
| depth | 127 mm |
| net weight | 1.6 kg |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | Yes |
product functions / management, configuration, engineering
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
product functions / diagnostics
| product function — backup device configuration | Yes |
| product function — user administration | Yes |
| product function — port diagnostics | Yes |
| product function — PROFINET IO diagnosis | Yes |
standards, specifications, approvals
| standard — for emitted interference | EN 61000-6-4 (Class A) |
| standard — for interference immunity | EN 61000-6-2 |
| MTBF | 29 a |
standards, specifications, approvals / CE
| certificate of suitability / CE marking | Yes |
standards, specifications, approvals / other
| certificate of suitability / C-Tick | Yes |
| certificate of suitability / KC approval | Yes |
| certificate of suitability / ATEX | Yes; EN 60079-0, EN 60079-15 |
| certificate of suitability / for ATEX / as marking | II 3 G Ex nA IIC T4 Gc |
| certificate of suitability / for ATEX / as certificate | DEKRA ATEX0025 X |
| certificate of suitability / IECEx | Yes; IEC 60079-0, IEC 60079-7 |
| certificate of suitability / for IECEx / as marking | Ex ec IICT4 Gc |
| certificate of suitability / for IECEx / as certificate | IECEx DEK 18.0017X |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; CL1, DIV2, Group A,B,C,D T4, CL1, Zone 2, Group IIC, T4 |
| certificate of suitability / CCC / for hazardous zone according to GB standard / as marking | E240480 |
| certificate of suitability / for cULus HazLoc / as marking | CL1, DIV2, Group A,B,C,D T4, CL1, Zone 2, Group IIC, T4 |
| certificate of suitability / for cULus HazLoc / as File Nr. | E240480 |
| certificate of suitability / for FM / as marking | CL1, DIV2, Group A,B,C,D T4, CL1, Zone 2, Group IIC, T4 Ta: -40 °C +60 °C |
| certificate of suitability / for FM / as certificate | FM19US0167X |
| certificate of suitability / railway application in accordance with EN 50121-4 | Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability / for UL 61010-2-201 / as File Nr. | E85972 |
| certificate of suitability / EAC approval | Yes |
| type of certification / BIS | Yes; R-41061751 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 646.79 kg |
| global warming potential [CO2 eq] — during manufacturing | 45.48 kg |
| global warming potential [CO2 eq] — during operation | 600.91 kg |
| global warming potential [CO2 eq] — after end of life | 0.4 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
