SCALANCE XR-500 managed Parts
Compare SCALANCE XR-500 managed
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | type of voltage / 2 / of the supply voltage — consumed current / 2 / maximum | net weight | global warming potential [CO2 eq] — total | MTBF |
|---|---|---|---|---|---|
| 6GK5534-5TR00-3AR3 | 1.2 A | 1.2 A | 8.2 kg | 2882 kg | 9.9 a |

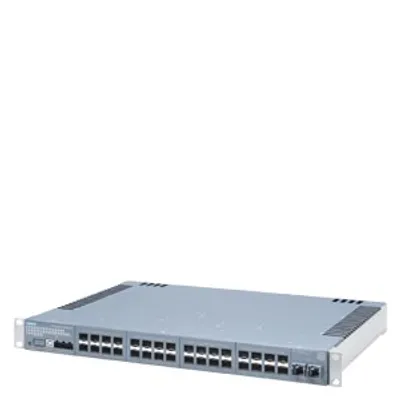

| 6GK5534-5TR00-2AR3 | 3 A | 3 A | 8 kg | 2239.67 kg | 16.7 a |
| 6GK5534-3TR00-4AR3 | 0.8 A | 0.8 A | 8.4 kg | 1274.81 kg | 10.6 a |

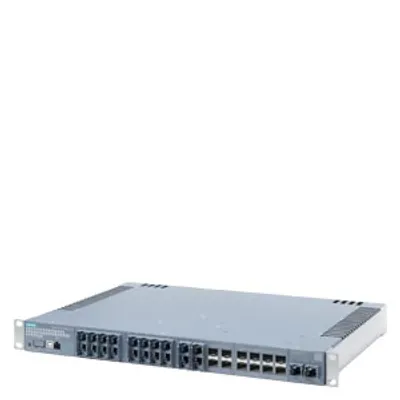

| 6GK5534-3TR00-3AR3 | 0.8 A | 0.8 A | 8.2 kg | 1274.81 kg | 8.6 a |
Common to all listed parts
| number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar | 2 |
| number of electrical connections — for SFP+ | 8; 1000 Mbps and 10000 Mbps SFP usable |
| number of electrical connections — for operator console | 1 |
| number of electrical connections — for signaling contact | 1 |
| type of electrical connection — for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection — for signaling contact | 2-pole terminal block |
| design of the removable storage — CLP | Yes |
| operating voltage / of the signaling contacts — at DC / rated value | 24 V |
