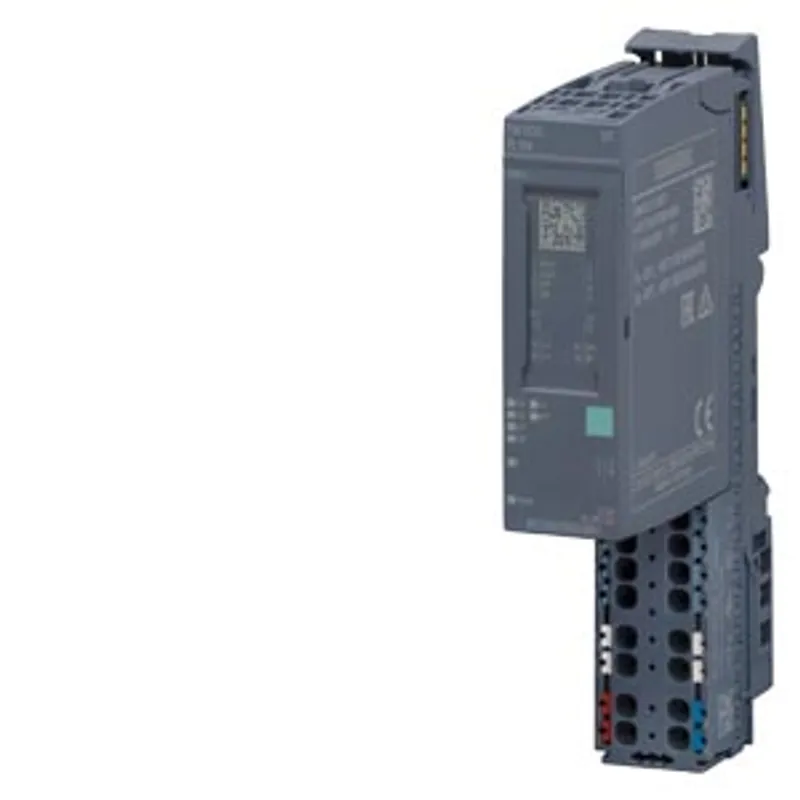

Siemens 6FE1242-6TM20-0BB1
SIMATIC ET 200SP TM ECC PL ST load controller for conductive charging of electric vehicles according to DIN…
- MPN
- 6FE1242-6TM20-0BB1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6FE1242-6TM20-0BB1?
SIMATIC ET 200SP TM ECC PL ST load controller for conductive charging of electric vehicles according to DIN SPEC 70121 / ISO15118 charge operating mode 4 CCS combined charging temp.: -30 °C to 60 °C 1x Control Pilot including Powerline Green Phy 1x Plug Present / Proximity Pilot 1x Digital Out TRIP function as open collector 1x Digital Out (DQ P) as open collector suitable for BU type BU20-P12+A0+4B or BU type BU20-P12+A4+0B
Specifications
General information
| Product type designation | ECC PL ST |
| HW functional status | 1 |
| Firmware version | V1.1.13 |
| Firmware version — FW update possible | Yes |
| Product description | Technology module for the conductive charging of electric vehicles according to DIN 70121 |
| usable BaseUnits | BU type B0, B1 |
| Mean time between failures (MTBF) | 114.14 a; @ 25 °C |
| Number of channels | 1; Acc. to IEC 61851-1 Mode 4 and DIN SPEC 70121 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | STEP 7 V16 or higher |
Installation type/mounting
| Mounting type | standard rail |
| Mounting position | Horizontal, vertical |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; against destruction |
| Load voltage L+ — Rated value (DC) | 24 V |
| Load voltage L+ — permissible range, lower limit (DC) | 19.2 V |
| Load voltage L+ — permissible range, upper limit (DC) | 28.8 V |
| Load voltage L+ — Reverse polarity protection | Yes |
Input current
| Current consumption, typ. | 40 mA |
| Current consumption, max. | 100 mA |
Digital inputs
| Number of digital inputs | 0 |
| Digital inputs, parameterizable | No |
| Cable length — shielded, max. | 10 m |
Digital outputs
| Type of digital output | Transistor |
| Number of digital outputs | 2; 1x digital out TRIP function as open collector, 1x digital out (DQ P) as open collector |
| Current-sinking | Yes |
| short-circuit proof | Yes |
| Digital output functions, parameterizable — PWM output | Yes; acc. to DIN SPEC 70121 and ISO 15118 |
| Digital output functions, parameterizable — PWM output — Number, max. | 1; 1 per channel |
| Digital output functions, parameterizable — PWM output — Cycle duration, parameterizable | No; 1 kHz |
| Digital output functions, parameterizable — Connection of a DC motor | No; Only fixed charging cables are permitted for DC charging systems |
| Switching capacity of the outputs — with resistive load, max. | 0.6 A; Per digital output |
| Output voltage — Type of output voltage | DC |
| Output voltage — Rated value (DC) | 24 V |
| Cable length — unshielded, max. | 10 m |
Analog inputs
| Number of analog inputs | 1; plug present according to IEC 61851 |
Analog outputs
| Number of analog outputs | 1 |
| Type of analog output | Control pilot including Powerline Green Phy, acc. to DIN SPEC 70121 |
| Connection of a DC motor | No |
Protocols
| Bus communication | Yes; Backplane bus |
| Vehicle communication according to IEC 61851 | Yes; Mode 4 |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | No; Supply voltage diagnostics |
| Diagnoses — Wire break | No |
| Diagnoses — short-circuit | No |
| Diagnostics indication LED — ERROR LED | No |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No; Only one channel is available |
| Potential separation channels — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 707 V DC |
| Degree of pollution | 2 |
EMC
| Electrostatic discharge acc. to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| Field-related interference acc. to IEC 61000-4-3 | 10 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz) |
| Conducted interference due to burst acc. to IEC 61000-4-4 | 2 kV signal lines |
| Conducted interference due to surge acc. to IEC 61000-4-5 | On DC supply lines: 0.5 kV symmetrical and asymmetrical |
| Conducted interference due to high-frequency radiation acc. to IEC 61000-4-6 | 10 V (0.15 ... 80 MHz) |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Certificate of suitability | CE / RCM / EAC / UL / KC |
Ambient conditions
| Ambient temperature during operation — min. | -30 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -30 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation — Storage, min. | -40 °C |
| Ambient temperature during storage/transportation — Storage, max. | 70 °C |
| Ambient temperature during storage/transportation — Transportation, min. | -40 °C |
| Ambient temperature during storage/transportation — Transportation, max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — Operation, min. | 5 % |
| Relative humidity — Operation, max. | 95 %; no condensation |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | 10 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1 g |
| Shock testing — Shock resistance acc. to IEC 60068-2-27 | 15 g / 11 ms |
Decentralized operation
| to SIMATIC S7-1500 | Yes |
Dimensions
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 51 g |
Other
| Note: | The Tone Mask of the Green Phy defined in DIN 70121 for North America applies |
