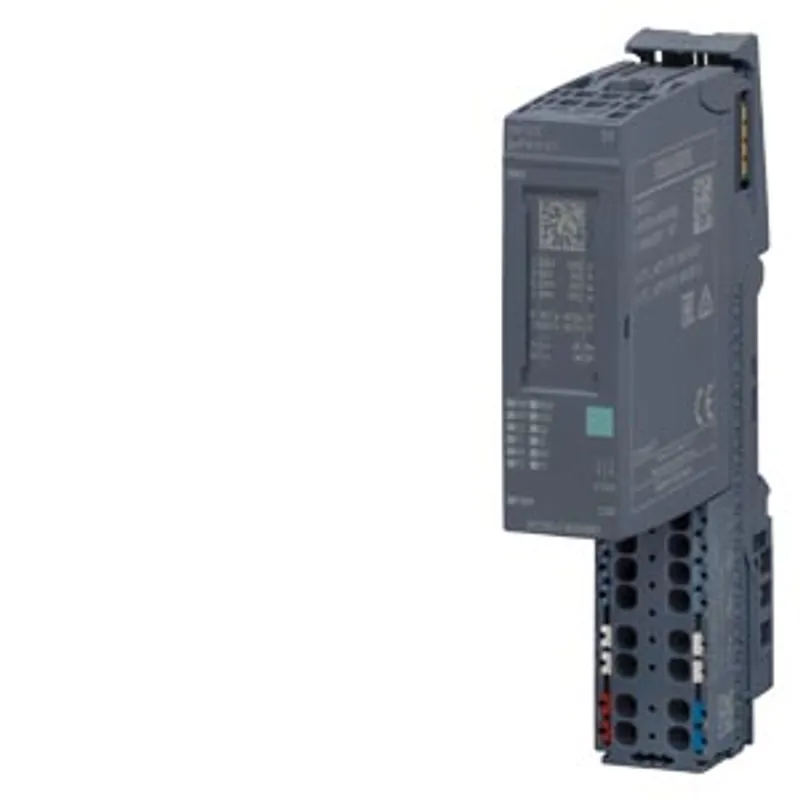

Siemens 6FE1242-6TM10-0BB1
SIMATIC ET 200SP TM ECC 2xPWM ST Chargecontroller f. conductive charging of electric vehicles according…
- MPN
- 6FE1242-6TM10-0BB1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6FE1242-6TM10-0BB1?
SIMATIC ET 200SP TM ECC 2xPWM ST Chargecontroller f. conductive charging of electric vehicles according IEC61851 mode 3 for 2 Charging points -30°C...60°C 2x Control Pilot 2x Plug Present 2x DQ switch contact for contactor; 2x DI read contact for contactor or connector locking; 2x ACT for connector locking suitable for BU Typ BU20-P12+A0+4B and BU20-P12+A4+0B
Specifications
General information
| Product type designation | ECC 2x PWM ST |
| HW functional status | 1 |
| Firmware version | V1.04 |
| Firmware version — FW update possible | Yes |
| Product description | Technology modules for the conductive AC charging of electric vehicles according to IEC 61851 |
| usable BaseUnits | BU type B0, B1 |
| Number of channels | 2; Acc. to IEC 61851-1 Mode 3 and/or SAE J1772 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — Isochronous mode | No |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V14 SP1 |
Installation type/mounting
| Mounting type | standard rail |
| Mounting position | Horizontal |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; against destruction |
| Load voltage L+ — Rated value (DC) | 24 V |
Input current
| Current consumption, typ. | 40 mA |
| Current consumption, max. | 90 mA |
Digital inputs
| Number of digital inputs | 2; 1 per channel |
| Digital inputs, parameterizable | Yes; 12 V / 24 V |
| Digital input functions, parameterizable — Freely usable digital input | No; Readback contact contactor / connector lock |
| Input voltage — Type of input voltage | DC |
| Input voltage — for signal "0" | <0.2 V (nom) |
| Input voltage — for signal "1" | >0.6 V (nom) |
| Input voltage — permissible voltage at input, min. | 0 V |
| Input voltage — permissible voltage at input, max. | 30 V |
| Cable length — unshielded, max. | 30 m |
Digital outputs
| Type of digital output | Transistor |
| Number of digital outputs | 2; 1 per channel |
| short-circuit proof | Yes |
| Short-circuit protection | Yes; electronic/thermal |
| Digital output functions, parameterizable — PWM output | Yes; According to IEC 61851 |
| Digital output functions, parameterizable — PWM output — Number, max. | 2; 1 per channel |
| Digital output functions, parameterizable — PWM output — Cycle duration, parameterizable | No; 1 kHz |
| Digital output functions, parameterizable — Connection of a DC motor | Yes; ACT p/n connector locking |
| Switching capacity of the outputs — with resistive load, max. | 1.3 A |
| Output voltage — Type of output voltage | DC |
| Output voltage — Rated value (DC) | 24 V |
| Cable length — unshielded, max. | 30 m; when using a PROFIBUS line |
Analog outputs
| Number of analog outputs | 2; Control pilot acc. to IEC 61851-1 and/or SAE J1772 |
| Connection of a DC motor | Yes; Motor for connector lock |
Protocols
| Bus communication | Yes |
| Vehicle communication according to IEC 61851 | Yes; MODE 3 |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | No |
| Diagnoses — Short-circuit | Yes |
| Diagnostics indication LED — ERROR LED | Yes; red LED |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED — Channel status display | Yes; green LED |
| Diagnostics indication LED — for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| Potential separation channels — between the channels | No |
| Potential separation channels — between the channels and backplane bus | Yes |
Isolation
| Isolation tested with | 707 V DC |
| Degree of pollution | 2 |
EMC
| Electrostatic discharge acc. to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| Field-related interference acc. to IEC 61000-4-3 | 10 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz) |
| Conducted interference due to burst acc. to IEC 61000-4-4 | 2 kV signal lines |
| Conducted interference due to surge acc. to IEC 61000-4-5 | On DC supply lines: 0.5 kV symmetrical and asymmetrical |
| Conducted interference due to high-frequency radiation acc. to IEC 61000-4-6 | 10 V (0.15 ... 80 MHz) |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Certificate of suitability | CE / RCM / EAC / UL / KC |
Ambient conditions
| Ambient temperature during operation — min. | -30 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -30 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -30 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation — Storage, min. | -40 °C |
| Ambient temperature during storage/transportation — Storage, max. | 70 °C |
| Ambient temperature during storage/transportation — Transportation, min. | -40 °C |
| Ambient temperature during storage/transportation — Transportation, max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — Operation, min. | 5 % |
| Relative humidity — Operation, max. | 95 %; no condensation |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | 10 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1 g |
| Shock testing — Shock resistance acc. to IEC 60068-2-27 | 15 g / 11 ms |
Decentralized operation
| to SIMATIC S7-1500 | Yes |
Dimensions
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 32 g |
