SIMATIC ET 200SP ECC charging controllers Parts
Compare SIMATIC ET 200SP ECC charging controllers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | Rated value (DC) | Reverse polarity protection | Current consumption, max. | Weight, approx. |
|---|---|---|---|---|---|
| 6FE1242-6TM20-0BB1 | ECC PL ST | 24 V | Yes; against destruction | 100 mA | 51 g |

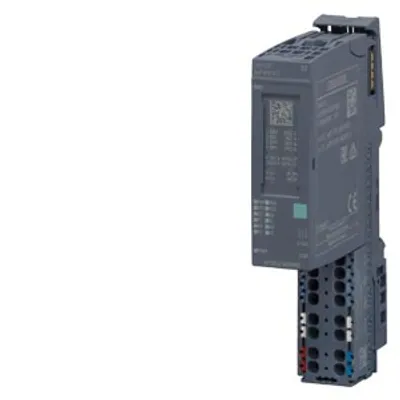

| 6FE1242-6TM10-0BB1 | ECC 2x PWM ST | 24 V | Yes; against destruction | 90 mA | 32 g |
| 6FE1244-0AD10-0AA0 | Calibration kit TM ECC CCS2 | 24 V; Optional: external infeed | Yes | 0.5 A | 1.5 kg |
Common to all listed parts
| Mounting type | standard rail |
| Type of supply voltage | DC |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Electrostatic discharge acc. to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| Field-related interference acc. to IEC 61000-4-3 | 10 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz) |
