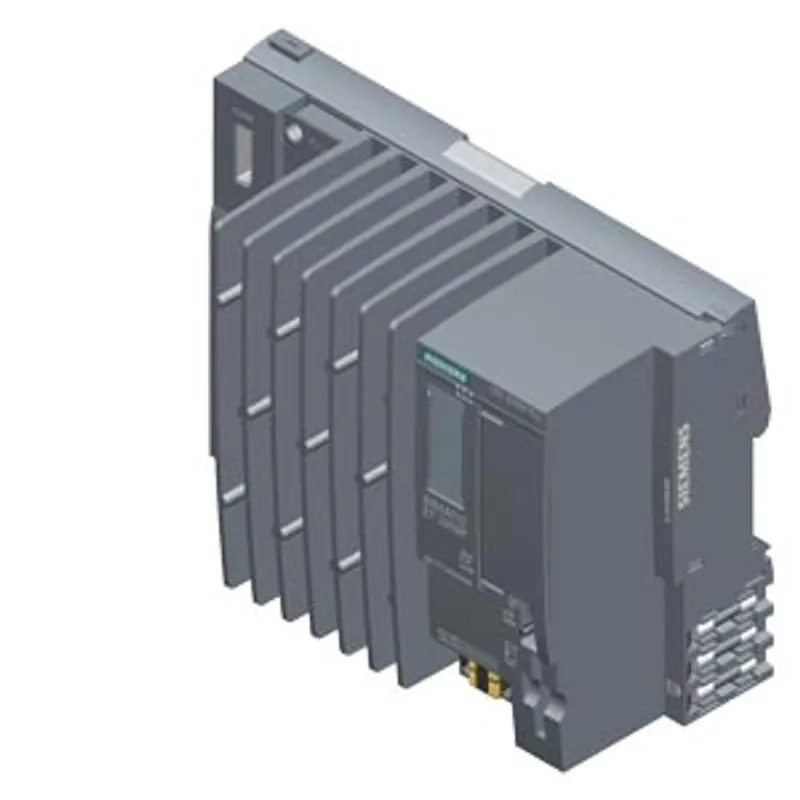

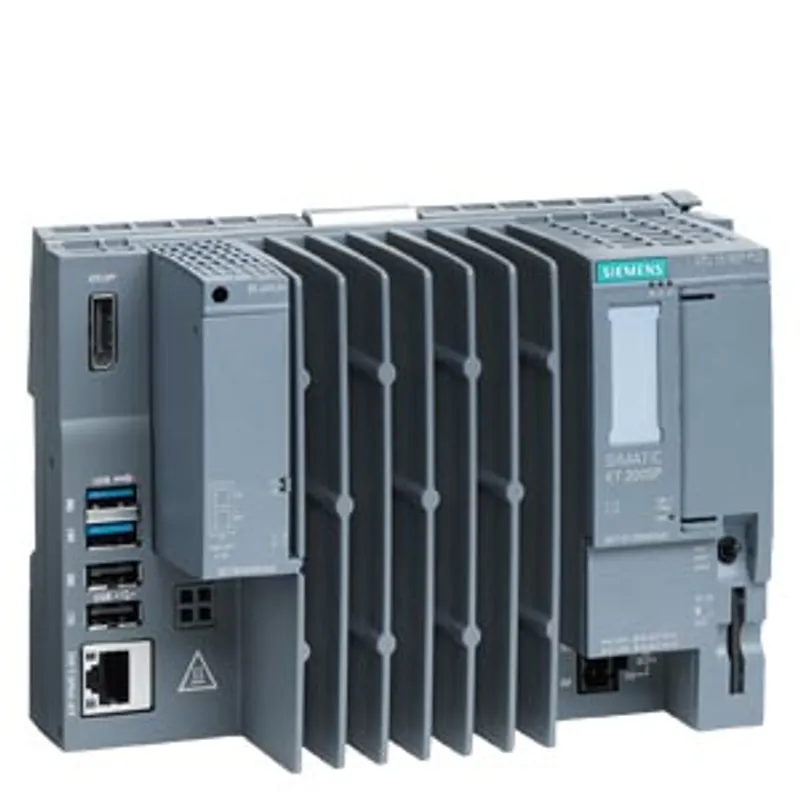

Siemens 6ES7677-2DB42-0GL0
SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 + HMI 512PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0)
- MPN
- 6ES7677-2DB42-0GL0
- Category
- CPU 1515SP PC2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7677-2DB42-0GL0?
SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 + HMI 512PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0), 128 GB CFast with Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Software Controller CPU 1505SP V2x and WinCC Runtime Advanced V17 preinstalled, with 512 PowerTags license; interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort; documentation on CFast,
Specifications
General information
| Product type designation | CPU 1515SP PC2 |
| HW functional status | from FS04 |
| Firmware version | V21.9 |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V17 |
| Installed software — Visualization | WinCC Runtime Advanced V17 |
| Installed software — Control | S7-1500 Software Controller CPU 1505SP |
Configuration control
| via dataset | Yes |
Control elements
| Mode selector switch | 1 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering — Mains/voltage failure stored energy time | 5 ms |
Input current
| Current consumption (rated value) | 1.8 A; Full processor load, incl. ET 200SP modules and using USB |
| Current consumption (in no-load operation), typ. | 0.5 A |
| Current consumption, max. | 2.9 A |
| I²t | 0.426 A²·s; with starting current inrush |
Power
| Active power input, max. | 43 W; incl. ET 200SP modules and using USB |
| Infeed power to the backplane bus | 8.75 W |
Power loss
| Power loss, typ. | 15 W; without ET 200SP modules and without using USB |
Processor
| Processor type | Intel Atom E3940, 1.6 GHz, 4 cores |
Storage
| Type of memory | DDR3L |
| Main memory | 8 GB RAM |
| CFast memory card | Yes; 128 GB flash memory |
| SIMATIC memory card required | No |
| Work memory — integrated (for program) | 1 Mbyte |
| Work memory — integrated (for data) | 5 Mbyte |
| Work memory — integrated (for CPU function library of CPU Runtime) | 20 Mbyte |
| Load memory — integrated (on PC mass storage) | 320 Mbyte |
| Backup — with UPS | Yes; all memory areas declared retentive |
| Backup — with non-volatile memory | Yes |
CPU-blocks
| Number of elements (total) | 6 000; In addition to blocks such as DBs, FBs and FCs, UDTs, global constants, etc. are also regarded as elements |
| DB — Number, max. | 5 999; Number range: 1 to 65535 |
| DB — Size, max. | 5 Mbyte |
| FB — Number, max. | 5 998; Number range: 1 to 65535 |
| FB — Size, max. | 1 024 kbyte |
| FC — Number, max. | 5 999; Number range: 1 to 65535 |
| FC — Size, max. | 1 024 kbyte |
| OB — Size, max. | 1 024 kbyte |
| OB — Number of free cycle OBs | 100 |
| OB — Number of time alarm OBs | 20 |
| OB — Number of delay alarm OBs | 20 |
| OB — Number of cyclic interrupt OBs | 20 |
| OB — Number of process alarm OBs | 50 |
| OB — Number of DPV1 alarm OBs | 3 |
| OB — Number of isochronous mode OBs | 1 |
| OB — Number of technology synchronous alarm OBs | 2 |
| OB — Number of startup OBs | 100 |
| OB — Number of asynchronous error OBs | 4 |
| OB — Number of synchronous error OBs | 2 |
| OB — Number of diagnostic alarm OBs | 1 |
| Nesting depth — per priority class | 24 |
Counters, timers and their retentivity
| S7 counter — Number | 2 048 |
| S7 counter — Retentivity — adjustable | Yes |
| IEC counter — Number | Any (only limited by the main memory) |
| IEC counter — Retentivity — adjustable | Yes |
| S7 timer — Number | 2 048 |
| S7 timer — Retentivity — adjustable | Yes |
| IEC timer — Number | Any (only limited by the main memory) |
| IEC timer — Retentivity — adjustable | Yes |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. | 410 kbyte; For storage in NVRAM; for storage in mass storage 5 242 020 bytes |
| Flag — Size, max. | 16 kbyte |
| Flag — Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Data blocks — Retentivity adjustable | Yes |
| Data blocks — Retentivity preset | No |
| Local data — per priority class, max. | 64 kbyte; max. 16 KB per block |
Address area
| Number of IO modules | 8 192 |
| I/O address area — Inputs | 32 kbyte; All inputs are in the process image |
| I/O address area — Outputs | 32 kbyte; All outputs are in the process image |
| Subprocess images — Number of subprocess images, max. | 32 |
Hardware configuration
| Integrated power supply | Yes |
| Number of distributed IO systems | 20 |
| Number of DP masters — Via CM | 1 |
| Number of IO Controllers — via PC interfaces | 1 |
| Rack — Modules per rack, max. | 64; CPU 1515SP PC + 64 modules + server module |
| Rack — Quantity of operable ET 200SP modules, max. | 64 |
| Rack — Quantity of operable ET 200AL modules, max. | 16 |
| Rack — Number of lines, max. | 1 |
| PtP CM — Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots |
Time of day
| Clock — Type | Hardware clock |
| Clock — Hardware clock (real-time) | Yes; Resolution: 1 s |
| Clock — Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Clock — Deviation per day, max. | 10 s; Typ.: 2 s |
| Clock synchronization — supported | Yes |
| Clock synchronization — to DP, master | Yes |
| Clock synchronization — on Ethernet via NTP | Yes |
| Clock synchronization — on Windows clock, device | Yes |
Interfaces
| Number of industrial Ethernet interfaces | 2 |
| Number of PROFINET interfaces | 1 |
| Number of PROFIBUS interfaces | 1 |
| Number of RS 485 interfaces | 1; Via CM DP module |
| Number of USB interfaces | 4; 2x USB 2.0, 2x USB 3.0 on front side |
| Number of SD card slots | 1 |
| Video interfaces — Graphics interface | 1x DisplayPort |
1. Interface
| Interface type | PROFINET |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Number of connections | 88 |
| Interface types — RJ 45 (Ethernet) | Yes; Via BusAdapter BA 2x RJ45 |
| Interface types — RJ 45 (Ethernet) — Transmission rate, max. | 100 Mbit/s |
| Interface types — RJ 45 (Ethernet) — Industrial Ethernet status LED | Yes |
| Interface types — Number of ports | 2 |
| Interface types — integrated switch | Yes |
| Interface types — BusAdapter (PROFINET) | Yes; compatible BusAdapters: BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, |
| Protocols — IP protocol | Yes; IPv4 |
| Protocols — PROFINET IO Controller | Yes |
| Protocols — PROFINET IO Device | Yes |
| Protocols — SIMATIC communication | Yes |
| Protocols — Open IE communication | Yes; Optionally also encrypted |
| Protocols — Web server | Yes |
| PROFINET IO Controller — Services — Isochronous mode | Yes |
| PROFINET IO Controller — Services — shortest clock pulse | 500 µs |
| PROFINET IO Controller — Services — IRT | Yes |
| PROFINET IO Controller — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Controller — Services — PROFIenergy | Yes |
| PROFINET IO Controller — Services — Prioritized startup | Yes; max. 32 PROFINET devices; if you want to use the "Prioritized startup" functionality in STEP 7 for the PROFINET interface of the CPU, the CPU and the device must be separated by means of a switch (e.g. SCALANCE X205) |
| PROFINET IO Controller — Services — Number of connectable IO Devices, max. | 128 |
| PROFINET IO Controller — Services — Of which IO devices with IRT, max. | 64 |
| PROFINET IO Controller — Services — of which in line, max. | 64 |
| PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max. | 128 |
| PROFINET IO Controller — Services — of which in line, max. | 128 |
| PROFINET IO Controller — Services — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported | Yes |
| PROFINET IO Controller — Services — Number of IO Devices per tool, max. | 8 |
| PROFINET IO Controller — Services — Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data |
| PROFINET IO Controller — Update time for IRT — for send cycle of 500 µs | 500 µs to 8 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 1 ms | 1 ms to 16 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 2 ms | 2 ms to 32 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 4 ms | 4 ms to 64 ms |
| PROFINET IO Controller — Update time for IRT — With IRT and parameterization of "odd" send cycles | Update time = set "odd" send clock (any multiple of 125 µs: 625 µs ... 3 875 µs) minimum cycle time start from 500 µs |
| PROFINET IO Controller — Update time for RT — for send cycle of 500 µs | 500 µs to 256 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 1 ms | 1 ms to 512 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 2 ms | 2 ms to 512 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 4 ms | 4 ms to 512 ms |
| PROFINET IO Controller — Address area — Inputs, max. | 8 kbyte |
| PROFINET IO Controller — Address area — Outputs, max. | 8 kbyte |
| PROFINET IO Device — Services — Isochronous mode | No |
| PROFINET IO Device — Services — shortest clock pulse | 500 µs |
| PROFINET IO Device — Services — IRT | Yes |
| PROFINET IO Device — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device — Services — PROFIenergy | Yes |
| PROFINET IO Device — Services — Prioritized startup | Yes |
| PROFINET IO Device — Services — Shared device | Yes |
| PROFINET IO Device — Services — Number of IO Controllers with shared device, max. | 4 |
| PROFINET IO Device — Services — Asset management record | Yes |
2. Interface
| Interface type | Integrated Ethernet interface |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Interface types — RJ 45 (Ethernet) | Yes; Integrated |
| Interface types — RJ 45 (Ethernet) — Transmission rate, max. | 1 000 Mbit/s |
| Interface types — RJ 45 (Ethernet) — Industrial Ethernet status LED | No |
| Interface types — Number of ports | 1 |
3. Interface
| Interface type | PROFIBUS with CM DP |
| Number of connections | 44 |
| Interface types — RS 485 | Yes |
| Protocols — PROFIBUS DP master | Yes |
| Protocols — PROFIBUS DP device | Yes |
| Protocols — SIMATIC communication | Yes |
| PROFIBUS DP master — max. number of DP devices | 125 |
| PROFIBUS DP master — Services — Equidistance | No |
| PROFIBUS DP master — Services — Isochronous mode | No |
| PROFIBUS DP master — Address area — Inputs, max. | 8 kbyte |
| PROFIBUS DP master — Address area — Outputs, max. | 8 kbyte |
Interface types
| RS 485 — Transmission rate, max. | 12 Mbit/s |
Protocols
| PROFIsafe | No |
| Number of connections — Number of connections, max. | 88 |
| Number of connections — Number of connections reserved for ES/HMI/web | 10 |
| Number of connections — Number of S7 routing paths | 16 |
| Redundancy mode — PROFINET system redundancy (S2) | No |
| Redundancy mode — PROFINET system redundancy (R1) | No |
| Redundancy mode — Media redundancy — MRP | Yes |
| Redundancy mode — Media redundancy — MRP interconnection, supported | Yes |
| Redundancy mode — Media redundancy — MRPD | Yes |
| Redundancy mode — Media redundancy — Switchover time on line break, typ. | 200 ms |
| Redundancy mode — Media redundancy — Number of stations in the ring, max. | 50 |
| SIMATIC communication — PG/OP communication | Yes |
| SIMATIC communication — S7 routing | Yes |
| SIMATIC communication — S7 communication, as server | Yes |
| SIMATIC communication — S7 communication, as client | Yes |
| SIMATIC communication — User data per job, max. | 64 kbyte; BSEND/BRCV: 64 KB; PUT/GET: 960 bytes |
| Open IE communication — TCP/IP | Yes |
| Open IE communication — TCP/IP — Data length, max. | 64 kbyte |
| Open IE communication — ISO-on-TCP (RFC1006) | Yes |
| Open IE communication — ISO-on-TCP (RFC1006) — Data length, max. | 64 kbyte |
| Open IE communication — UDP | Yes |
| Open IE communication — UDP — Data length, max. | 2 048 byte |
| Open IE communication — SNMP | Yes |
| Open IE communication — DCP | Yes |
| Open IE communication — LLDP | Yes |
| Web server — HTTP | Yes; Via Windows and PROFINET interface |
| Web server — HTTPS | Yes; Via Windows and PROFINET interface |
| OPC UA — Runtime license required | Yes; "Small" license required |
| OPC UA — OPC UA Client | Yes; From SW CPU 1505SP V2.6 |
| OPC UA — OPC UA Server | Yes; Data access (read, write, subscribe), runtime license required |
| OPC UA — OPC UA Server — Application authentication | Yes; Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA — OPC UA Server — Security policies | Yes; Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA — OPC UA Server — User authentication | Yes; "anonymous" or by user name & password |
| Further protocols — MODBUS | Yes; MODBUS TCP |
S7 message functions
| Number of login stations for message functions, max. | 32 |
| Program alarms | Yes |
| Number of configurable program messages, max. | 10 000 |
| Number of simultaneously active program alarms | 1 000 |
| Number of simultaneously active program alarms — Number of program alarms | 1 000 |
| Number of simultaneously active program alarms — Number of alarms for system diagnostics | 200 |
| Number of simultaneously active program alarms — Number of alarms for motion technology objects | 160 |
Test commissioning functions
| Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 8 engineering systems |
| Status block | Yes; up to 8 simultaneously |
| Single step | No |
| Number of breakpoints | 8 |
| Status/control — Status/control variable | Yes |
| Status/control — Variables | Inputs, outputs, memory bits, DB, times, counters |
| Status/control — Number of variables, max. — of which status variables, max. | 200 |
| Status/control — Number of variables, max. — of which control variables, max. | 200 |
| Forcing — Forcing | Yes |
| Forcing — Forcing, variables | Inputs, outputs |
| Forcing — Number of variables, max. | 200 |
| Diagnostic buffer — present | Yes |
| Diagnostic buffer — Number of entries, max. | 1 000 |
| Diagnostic buffer — Number of entries, max. — of which powerfail-proof | 300 |
| Traces — Number of configurable Traces | 4 |
| Traces — Memory size per trace, max. | 512 kbyte |
Interrupts/diagnostics/status information
| Diagnostics indication LED — RUN/STOP LED | Yes |
| Diagnostics indication LED — ERROR LED | Yes |
| Diagnostics indication LED — MAINT LED | Yes |
Supported technology objects
| Motion Control | Yes; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| Motion Control — Number of available Motion Control resources for technology objects | 2 400 |
| Motion Control — Required Motion Control resources — per speed-controlled axis | 40; per axis |
| Motion Control — Required Motion Control resources — per positioning axis | 80; per axis |
| Motion Control — Required Motion Control resources — per synchronous axis | 160; per axis |
| Motion Control — Required Motion Control resources — per external encoder | 80; per external encoder |
| Motion Control — Required Motion Control resources — per output cam | 20; per cam |
| Motion Control — Required Motion Control resources — per cam track | 160; per cam track |
| Motion Control — Required Motion Control resources — per probe | 40; per probe |
| Motion Control — Positioning axis — Number of positioning axes at motion control cycle of 4 ms (typical value) | 15 |
| Motion Control — Positioning axis — Number of positioning axes at motion control cycle of 8 ms (typical value) | 30 |
| Controller — PID_Compact | Yes; Universal PID controller with integrated optimization |
| Controller — PID_3Step | Yes; PID controller with integrated optimization for valves |
| Controller — PID-Temp | Yes; PID controller with integrated optimization for temperature |
| Counting and measuring — High-speed counter | Yes |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 432 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 73.8 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 365 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -6.71 kg |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C; from 55°C: with max. 32 ET 200SP modules; 4x 0.3 A USB load; CFast memory card max. 10% load; SD card not used |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C; from 45°C: with max. 32 ET 200SP modules; 4x 0.3 A USB load; CFast memory card and SD card; max. 10% load |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Vibrations — Operation, tested according to IEC 60068-2-6 | Yes |
| Vibrations — Transport, tested acc. to IEC 60068-2-6 | Yes |
| Shock testing — tested according to IEC 60068-2-6 | Yes |
| Shock testing — tested according to IEC 60068-2-27 | Yes |
| Shock testing — tested according to IEC 60068-2-29 | Yes |
| Shock testing — Storage/transport, tested acc. to IEC 60068-2-27 | Yes |
Operating systems
| pre-installed operating system | Windows 10 IoT Enterprise 2019 LTSC, 64 bit, MUI |
Configuration
| Programming — Programming language — LAD | Yes |
| Programming — Programming language — FBD | Yes |
| Programming — Programming language — STL | Yes |
| Programming — Programming language — SCL | Yes |
| Programming — Programming language — CFC | No |
| Programming — Programming language — GRAPH | Yes |
| Know-how protection — User program protection/password protection | Yes |
| Know-how protection — Copy protection | Yes |
| Know-how protection — Block protection | Yes |
| Access protection — protection of confidential configuration data | Yes |
| Access protection — Protection level: Write protection | Yes |
| Access protection — Protection level: Read/write protection | Yes |
| Access protection — Protection level: Complete protection | Yes |
| Cycle time monitoring — lower limit | adjustable minimum cycle time |
| Cycle time monitoring — upper limit | adjustable maximum cycle time |
| Open Development interfaces — Size of ODK SO file, max. | 5.8 Mbyte |
Peripherals/Options
| SD card | Optionally for additional mass storage |

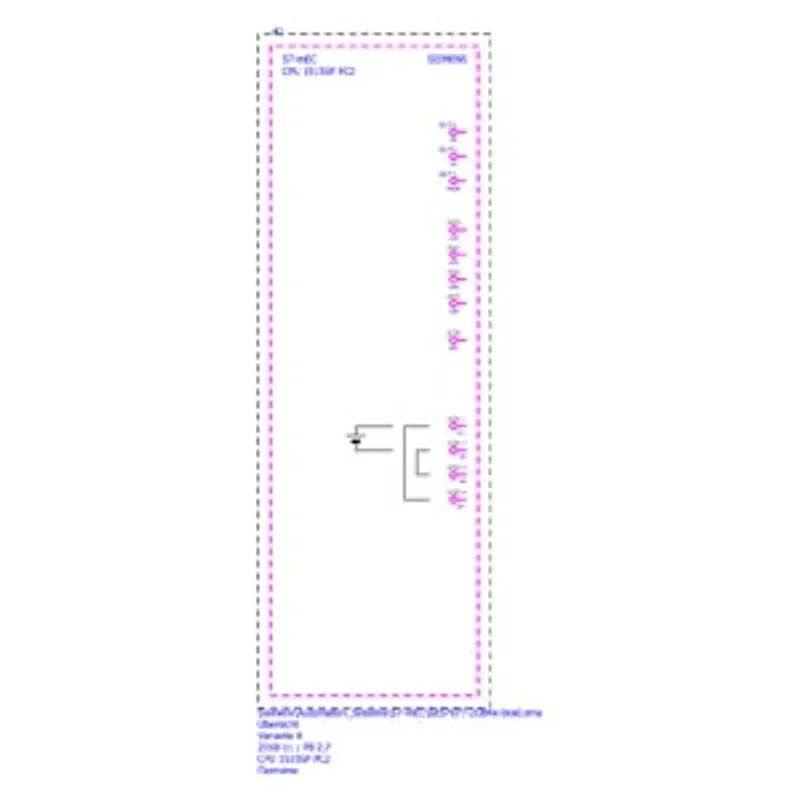

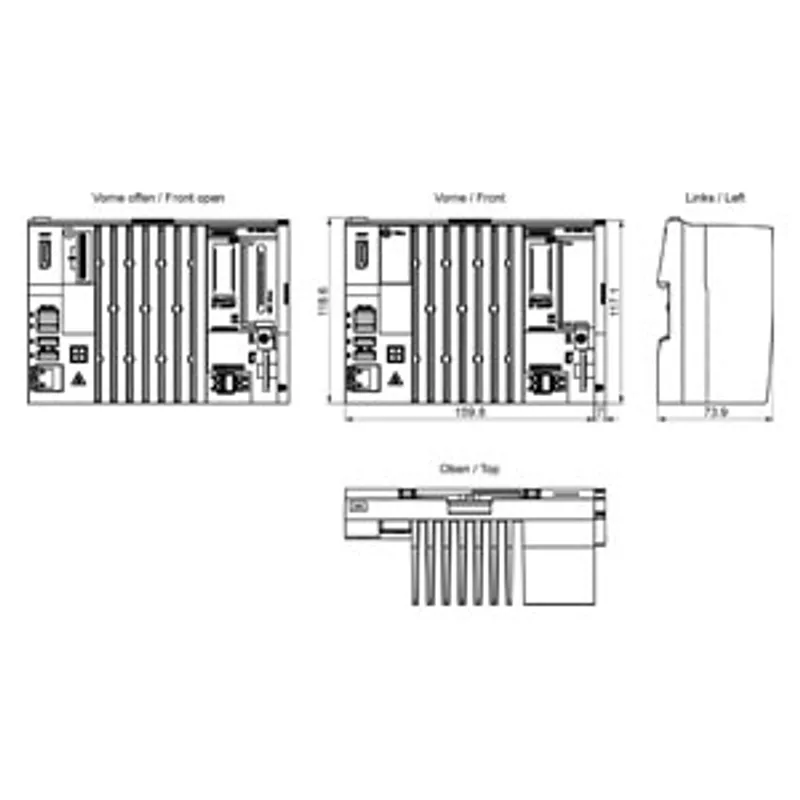

Dimensions
| Width | 160 mm |
| Height | 117 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 0.83 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7677-2DB42-0GL0: frequently asked questions
When can 6ES7677-2DB42-0GL0 be shipped?
6ES7677-2DB42-0GL0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7677-2DB42-0GL0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7677-2DB42-0GL0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7677-2DB42-0GL0, subject to availability and destination.
More Siemens parts
Siemens 6ES7677-2DB42-0GL0Price and lead time confirmed within 1 business day
Request a Quote
