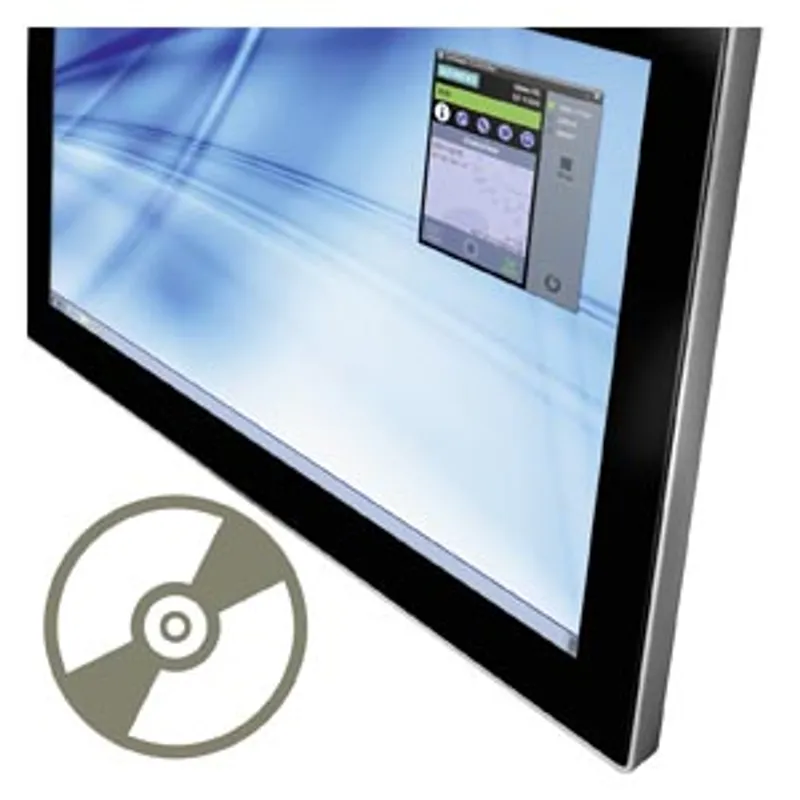

Siemens 6ES7672-8AC02-0YA0
SIMATIC S7-1500, Software Controller CPU 1508S, Single License for 1 installation, runtime software class A
- MPN
- 6ES7672-8AC02-0YA0
- Category
- CPU 1508S Windows
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7672-8AC02-0YA0?
SIMATIC S7-1500, Software Controller CPU 1508S, Single License for 1 installation, runtime software class A; R-SW, software and documentation on DVD, license key on USB flash drive; 6 languages (de,en,it,fr,es,zh); executable in Windows 10; reference hardware: IPC4x7E, BX/PX-39A, IPC6x7E, IPC8x7E
Specifications
General information
| Product type designation | CPU 1508S |
| Software version | V31.1 |
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — SysLog | Yes |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | V20 |
Configuration control
| via dataset | Yes |
Storage
| SIMATIC memory card required | No; Use of the PC mass storage |
| Work memory — integrated (for program) | 10 Mbyte |
| Work memory — integrated (for data) | 100 Mbyte |
| Work memory — integrated (for CPU function library of CPU Runtime) | 50 Mbyte |
| Load memory — integrated (on PC mass storage) | 1 024 Mbyte |
| Backup — with UPS | Yes; all memory areas declared retentive |
| Backup — with non-volatile memory | Yes; Depending on PC hardware |
CPU processing times
| for bit operations, typ. | 1 ns; On IPC427E, Intel Xeon processor |
| for word operations, typ. | 2 ns; On IPC427E, Intel Xeon processor |
| for fixed point arithmetic, typ. | 2 ns; On IPC427E, Intel Xeon processor |
| for floating point arithmetic, typ. | 2 ns; On IPC427E, Intel Xeon processor |
CPU-blocks
| Number of elements (total) | 20 000; blocks (OB, FB, FC, DB), UDTs and global constants |
| DB — Number, max. | 19 999; Number range: 1 to 65535 |
| DB — Size, max. | 16 Mbyte |
| FB — Number, max. | 19 998; Number range: 1 to 65535 |
| FB — Size, max. | 1 024 kbyte |
| FC — Number, max. | 19 999; Number range: 1 to 65535 |
| FC — Size, max. | 1 024 kbyte |
| OB — Size, max. | 1 024 kbyte |
| OB — Number of free cycle OBs | 100 |
| OB — Number of time alarm OBs | 20 |
| OB — Number of delay alarm OBs | 20 |
| OB — Number of cyclic interrupt OBs | 20 |
| OB — Number of process alarm OBs | 50 |
| OB — Number of DPV1 alarm OBs | 3 |
| OB — Number of isochronous mode OBs | 1 |
| OB — Number of technology synchronous alarm OBs | 2 |
| OB — Number of startup OBs | 100 |
| OB — Number of asynchronous error OBs | 4 |
| OB — Number of synchronous error OBs | 2 |
| OB — Number of diagnostic alarm OBs | 1 |
| Nesting depth — per priority class | 24 |
Counters, timers and their retentivity
| S7 counter — Number | 2 048 |
| S7 counter — Retentivity — can be set | Yes |
| IEC counter — Number | Any (only limited by the main memory) |
| IEC counter — Retentivity — can be set | Yes |
| S7 timer — Number | 2 048 |
| S7 timer — Retentivity — adjustable | Yes |
| IEC timer — Number | Any (only limited by the main memory) |
| IEC timer — Retentivity — can be set | Yes |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. | 135 kbyte; on SIMATIC IPC with NVRAM option |
| Extended retentive data area (incl. timers, counters, flags), max. | 100 Mbyte; When using PC mass storage for retentive data |
| Flag — Size, max. | 16 kbyte |
| Flag — Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Data blocks — Retentivity adjustable | Yes |
| Data blocks — Retentivity preset | No |
| Local data — per priority class, max. | 64 kbyte; max. 16 KB per block |
Address area
| Number of IO modules | 8 192 |
| I/O address area — Inputs | 32 kbyte |
| I/O address area — Outputs | 32 kbyte |
| Subprocess images — Number of subprocess images, max. | 32 |
Hardware configuration
| Number of distributed IO systems | 20 |
| Number of IO Controllers — via PC interfaces | 2; any combination of RT or IRT interfaces |
Time of day
| Clock — Type | Software clock, synchronizable, no battery backup |
| Clock — Deviation per day, max. | Depending on PC hardware |
| Operating hours counter — Number | 16 |
| Clock synchronization — supported | Yes |
| Clock synchronization — to DP, master | No |
| Clock synchronization — on Ethernet via NTP | Yes |
| Clock synchronization — on Windows clock, device | Yes |
Interfaces
| Number of interfaces | 3 |
| Number of PROFINET interfaces | 2 |
| Number of PROFIBUS interfaces | 0 |
1. Interface
| Interface type | CP 1625 |
| Number of connections | 192 |
| Interface types — RJ 45 (Ethernet) | Yes |
| Interface types — RJ 45 (Ethernet) — Transmission rate, max. | 100 Mbit/s |
| Interface types — RJ 45 (Ethernet) — Industrial Ethernet status LED | Yes |
| Interface types — Number of ports | 2 |
| Interface types — integrated switch | Yes |
| Protocols — IP protocol | Yes; IPv4 |
| Protocols — PROFINET IO Controller | Yes |
| Protocols — PROFINET IO device | Yes |
| Protocols — SIMATIC communication | Yes |
| Protocols — Open IE communication | Yes; Optionally also encrypted |
| Protocols — Web server | Yes |
| Protocols — Media redundancy | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0 |
| PROFINET IO Controller — Services — Isochronous mode | Yes |
| PROFINET IO Controller — Services — Direct data exchange | Yes; Requirement: IRT and isochronous mode (MRPD optional) |
| PROFINET IO Controller — Services — shortest clock pulse | 500 µs |
| PROFINET IO Controller — Services — IRT | Yes |
| PROFINET IO Controller — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Controller — Services — PROFIenergy | Yes |
| PROFINET IO Controller — Services — Prioritized startup | Yes; max. 32 PROFINET devices; if you want to use the "Prioritized startup" functionality in STEP 7 for the PROFINET interface of the CPU, the CPU and the device must be seperated by means of a switch (e.g SCALANCE X205) or CP1625 |
| PROFINET IO Controller — Services — Number of connectable IO Devices, max. | 256; the maximal amount of supported devices on all interfaces (PN/PB) is 384 (256+128) in total; theoretically it should be 509 (256+128+125), but it is accepted to be limited to 384 |
| PROFINET IO Controller — Services — Of which IO devices with IRT, max. | 64 |
| PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max. | 256 |
| PROFINET IO Controller — Services — of which in line, max. | 256 |
| PROFINET IO Controller — Services — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported | Yes; the CPU and changing IO devices must be separated by a switch (e.g. SCALANCE X205) |
| PROFINET IO Controller — Services — Number of IO Devices per tool, max. | 8 |
| PROFINET IO Controller — Services — Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data |
| PROFINET IO Controller — Services — PROFINET Security Class | 1 |
| PROFINET IO Controller — Update time for IRT — for send cycle of 250 µs | 250 µs to 4 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 500 µs | 500 µs to 8 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 1 ms | 1 ms to 16 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 2 ms | 2 ms to 32 ms |
| PROFINET IO Controller — Update time for IRT — for send cycle of 4 ms | Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs) |
| PROFINET IO Controller — Update time for IRT — With IRT and parameterization of "odd" send cycles | Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs ... 3 875 µs) |
| PROFINET IO Controller — Update time for RT — for send cycle of 250 µs | 250 µs to 128 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 500 µs | 500 µs to 256 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 1 ms | 1 ms to 512 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 2 ms | 2 ms to 512 ms |
| PROFINET IO Controller — Update time for RT — for send cycle of 4 ms | 4 ms to 512 ms |
| PROFINET IO Controller — Address area — Inputs, max. | 16 kbyte |
| PROFINET IO Controller — Address area — Outputs, max. | 16 kbyte |
| PROFINET IO Device — Services — Isochronous mode | No |
| PROFINET IO Device — Services — IRT | Yes |
| PROFINET IO Device — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device — Services — PROFIenergy | Yes |
| PROFINET IO Device — Services — Prioritized startup | Yes |
| PROFINET IO Device — Services — Shared device | Yes |
| PROFINET IO Device — Services — Number of IO Controllers with shared device, max. | 4 |
| PROFINET IO Device — Services — Asset management record | Yes |
| PROFINET IO Device — Services — PROFINET Security Class | SNMP Configuration and DCP Read Only |
2. Interface
| Interface type | Onboard PROFINET / IE interface X2 of the SIMATIC IPC, Intel Springville i210T |
| Number of connections | 192 |
| Interface types — RJ 45 (Ethernet) | Yes |
| Interface types — RJ 45 (Ethernet) — Transmission rate, max. | 100 Mbit/s |
| Interface types — RJ 45 (Ethernet) — Industrial Ethernet status LED | Yes |
| Interface types — Number of ports | 1 |
| Interface types — integrated switch | No |
| Protocols — IP protocol | Yes; IPv4 |
| Protocols — PROFINET IO Controller | Yes |
| Protocols — PROFINET IO device | Yes |
| Protocols — PROFIBUS DP master | No |
| Protocols — PROFIBUS DP device | No |
| Protocols — SIMATIC communication | Yes |
| Protocols — Open IE communication | Yes |
| Protocols — Web server | Yes |
| Protocols — Media redundancy | No |
| PROFINET IO Controller — Services — Isochronous mode | No |
| PROFINET IO Controller — Services — IRT | No |
| PROFINET IO Controller — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Controller — Services — PROFIenergy | Yes |
| PROFINET IO Controller — Services — Prioritized startup | Yes; max. 32 PROFINET devices; if you want to use the "Prioritized startup" functionality in STEP 7 for the PROFINET interface of the CPU, the CPU and the device must be separated by means of a switch (e.g. SCALANCE X205) |
| PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max. | 128; the maximal amount of supported devices on all interfaces (PN/PB) is 384 (256+128) in total; theoretically it should be 509 (256+128+125), but it is accepted to be limited to 384 |
| PROFINET IO Controller — Services — of which in line, max. | 128 |
| PROFINET IO Controller — Services — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported | Yes |
| PROFINET IO Controller — Services — Number of IO Devices per tool, max. | 8 |
| PROFINET IO Controller — Services — Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data |
| PROFINET IO Controller — Services — PROFINET Security Class | 1 |
| PROFINET IO Controller — Address area — Inputs, max. | 8 kbyte |
| PROFINET IO Controller — Address area — Outputs, max. | 8 kbyte |
| PROFINET IO Device — Services — Isochronous mode | No |
| PROFINET IO Device — Services — IRT | No |
| PROFINET IO Device — Services — Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device — Services — PROFIenergy | Yes |
| PROFINET IO Device — Services — Prioritized startup | Yes |
| PROFINET IO Device — Services — Shared device | Yes |
| PROFINET IO Device — Services — Number of IO Controllers with shared device, max. | 4 |
| PROFINET IO Device — Services — Asset management record | Yes |
| PROFINET IO Device — Services — PROFINET Security Class | SNMP Configuration and DCP Read Only |
Protocols
| PROFIsafe | No |
| Number of connections — Number of connections, max. | 192 |
| Number of connections — Number of connections reserved for ES/HMI/web | 10 |
| Number of connections — Number of S7 routing paths | 16 |
| Redundancy mode — PROFINET system redundancy (S2) | No |
| Redundancy mode — PROFINET system redundancy (R1) | No |
| Redundancy mode — Media redundancy — MRP | Yes |
| Redundancy mode — Media redundancy — MRP interconnection, supported | Yes |
| Redundancy mode — Media redundancy — MRPD | Yes; Requirement: IRT |
| Redundancy mode — Media redundancy — Switchover time on line break, typ. | 200 ms; For MRP, bumpless for MRPD |
| Redundancy mode — Media redundancy — Number of stations in the ring, max. | 50 |
| SIMATIC communication — PG/OP communication | Yes |
| SIMATIC communication — S7 routing | Yes |
| SIMATIC communication — S7 communication, as server | Yes |
| SIMATIC communication — S7 communication, as client | Yes |
| SIMATIC communication — User data per job, max. | 64 kbyte; BSEND/BRCV: 64 KB; PUT/GET: 960 bytes |
| Open IE communication — TCP/IP | Yes |
| Open IE communication — TCP/IP — Data length, max. | 64 kbyte |
| Open IE communication — ISO-on-TCP (RFC1006) | Yes |
| Open IE communication — ISO-on-TCP (RFC1006) — Data length, max. | 64 kbyte |
| Open IE communication — UDP | Yes |
| Open IE communication — UDP — Data length, max. | 2 kbyte |
| Open IE communication — UDP — UDP multicast | Yes; 128 multicast circuits (of which max. 5 via CP 1625) |
| Open IE communication — DHCP | Yes |
| Open IE communication — DNS | Yes |
| Open IE communication — SNMP | Yes |
| Open IE communication — DCP | Yes |
| Open IE communication — LLDP | Yes |
| Web server — HTTP | Yes; Standard and user pages |
| Web server — HTTPS | Yes; Standard and user pages |
| OPC UA — Runtime license required | Yes; "Large" license required |
| OPC UA — OPC UA Client | Yes; Data access (read, write), method call |
| OPC UA — OPC UA Client — Security policies | Yes; Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA — OPC UA Client — User authentication | Yes; "anonymous" or by user name & password |
| OPC UA — OPC UA Client — Number of connections, max. | 40 |
| OPC UA — OPC UA Client — Number of nodes of the client interfaces, recommended max. | 5 000 |
| OPC UA — OPC UA Client — Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max. | 300 |
| OPC UA — OPC UA Client — Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max. | 20 |
| OPC UA — OPC UA Client — Number of elements for one call of OPC_UA_MethodGetHandleList, max. | 100 |
| OPC UA — OPC UA Client — Number of simultaneous calls of the client instructions for session management, per connection, max. | 1 |
| OPC UA — OPC UA Client — Number of simultaneous calls of the client instructions for data access, per connection, max. | 5 |
| OPC UA — OPC UA Client — Number of registerable nodes, max. | 5 000 |
| OPC UA — OPC UA Client — Number of registerable method calls of OPC_UA_MethodCall, max. | 100 |
| OPC UA — OPC UA Client — Number of inputs/outputs when calling OPC_UA_MethodCall, max. | 20 |
| OPC UA — OPC UA Server | Yes; Data access (read, write, subscribe), method call, custom address space |
| OPC UA — OPC UA Server — Application authentication | Yes |
| OPC UA — OPC UA Server — Security policies | Yes; Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA — OPC UA Server — User authentication | Yes; "anonymous" or by user name & password |
| OPC UA — OPC UA Server — GDS support (certificate management) | Yes |
| OPC UA — OPC UA Server — Number of sessions, max. | 64 |
| OPC UA — OPC UA Server — Number of accessible variables, max. | 200 000 |
| OPC UA — OPC UA Server — Number of registerable nodes, max. | 50 000 |
| OPC UA — OPC UA Server — Number of subscriptions per session, max. | 50 |
| OPC UA — OPC UA Server — Sampling interval, min. | 10 ms |
| OPC UA — OPC UA Server — Publishing interval, min. | 10 ms |
| OPC UA — OPC UA Server — Number of server methods, max. | 100 |
| OPC UA — OPC UA Server — Number of inputs/outputs per server method, max. | 20 |
| OPC UA — OPC UA Server — Number of monitored items, recommended max. | 10 000; for 1 s sampling interval and 1 s send interval |
| OPC UA — OPC UA Server — Number of server interfaces, max. | 10 |
| OPC UA — OPC UA Server — Number of nodes for user-defined server interfaces, max. | 30 000 |
| OPC UA — Alarms and Conditions — Number of program alarms | 400 |
| OPC UA — Alarms and Conditions — Number of alarms for system diagnostics | 200 |
| Further protocols — MODBUS | Yes; MODBUS TCP |
S7 message functions
| Number of login stations for message functions, max. | 32 |
| Program alarms | Yes |
| Number of configurable program messages, max. | 10 000 |
| Number of loadable program messages in RUN, max. | 5 000 |
| Number of simultaneously active program alarms | 1 000 |
| Number of simultaneously active program alarms — Number of program alarms | 1 000 |
| Number of simultaneously active program alarms — Number of alarms for system diagnostics | 200 |
| Number of simultaneously active program alarms — Number of alarms for motion technology objects | 160 |
Test commissioning functions
| Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 10 engineering systems |
| Status block | Yes; up to 8 simultaneously |
| Single step | Yes |
| Number of breakpoints | 8 |
| Status/control — Status/control variable | Yes |
| Status/control — Variables | Inputs, outputs, memory bits, DB, times, counters |
| Status/control — Number of variables, max. — of which status variables, max. | 200; per job |
| Status/control — Number of variables, max. — of which control variables, max. | 200; per job |
| Forcing — Forcing | Yes |
| Forcing — Forcing, variables | Inputs, outputs |
| Forcing — Number of variables, max. | 200 |
| Diagnostic buffer — present | Yes |
| Diagnostic buffer — Number of entries, max. | 1 000 |
| Diagnostic buffer — Number of entries, max. — of which powerfail-proof | 300 |
| Traces — Number of configurable Traces | 4 |
| Traces — Memory size per trace, max. | 512 kbyte |
Interrupts/diagnostics/status information
| Diagnostics indication LED — RUN/STOP LED | Yes; HW LED of SIMATIC IPC427E, IPC BX-39A, IPC627E |
| Diagnostics indication LED — ERROR LED | Yes; HW LED of SIMATIC IPC427E, IPC BX-39A, IPC627E |
| Diagnostics indication LED — MAINT LED | Yes; HW LED of SIMATIC IPC427E, IPC BX-39A, IPC627E |
Supported technology objects
| Motion Control | Yes; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool or SIZER |
| Motion Control — Number of available Motion Control resources for technology objects | 4 800 |
| Motion Control — Required Motion Control resources — per speed-controlled axis | 40 |
| Motion Control — Required Motion Control resources — per positioning axis | 80 |
| Motion Control — Required Motion Control resources — per synchronous axis | 160 |
| Motion Control — Required Motion Control resources — per external encoder | 80 |
| Motion Control — Required Motion Control resources — per output cam | 20 |
| Motion Control — Required Motion Control resources — per cam track | 160 |
| Motion Control — Required Motion Control resources — per probe | 40 |
| Motion Control — Positioning axis — Number of positioning axes at motion control cycle of 4 ms (typical value) | 30; On IPC427E, Intel Xeon processor |
| Motion Control — Positioning axis — Number of positioning axes at motion control cycle of 8 ms (typical value) | 60; On IPC427E, Intel Xeon processor |
| Controller — PID_Compact | Yes; Universal PID controller with integrated optimization |
| Controller — PID_3Step | Yes; PID controller with integrated optimization for valves |
| Controller — PID-Temp | Yes; PID controller with integrated optimization for temperature |
| Counting and measuring — High-speed counter | Yes |
Hardware requirement
| Hardware required | SIMATIC IPC427E, IPC477E (Pro), IPC BX-39A, IPC PX-39A (Pro), IPC627E, IPC677E, IPC647E, IPC847E |
| Processor — Single-core processor | No |
| Processor — Single-core processor with hyper-threading | No |
| Processor — Multi-core processor | Yes |
| Processor — Multi-core processor with hyper-threading | Yes |
| Processor — occupied cores | 1; For multicore processors with activated Hyper-Threading, one complete physical core is reserved for the CPU 1507S |
| Storage — Work memory, min. | 8 Gbyte |
| Storage — Hard disk memory required for installation | 720 Mbyte |
| Storage — Temporary hard disk memory for installation | 230 Mbyte |
| Storage — Hard disk memory required at runtime | 1 661 Mbyte |
Operating systems
| Runs under operating system — Windows 7 | No |
| Runs under operating system — Windows 10 | Yes; Windows 10 Enterprise 2019 LTSC and 2021 LTSC, 64-bit, MUI |
| Runs under operating system — Linux | No |
Configuration
| Programming — Programming language — LAD | Yes |
| Programming — Programming language — FBD | Yes |
| Programming — Programming language — STL | Yes |
| Programming — Programming language — SCL | Yes |
| Programming — Programming language — CFC | Yes |
| Programming — Programming language — GRAPH | Yes |
| Know-how protection — User program protection/password protection | Yes |
| Know-how protection — Copy protection | Yes |
| Know-how protection — Block protection | Yes |
| Access protection — protection of confidential configuration data | Yes |
| Access protection — Protection level: Write protection | Yes |
| Access protection — Protection level: Read/write protection | Yes |
| Access protection — Protection level: Complete protection | Yes |
| Access protection — User administration | Yes |
| Access protection — Number of users | 100 |
| Cycle time monitoring — lower limit | adjustable minimum cycle time |
| Cycle time monitoring — upper limit | adjustable maximum cycle time |
| Open Development interfaces — Size of ODK SO file, max. | 9.8 Mbyte |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7672-8AC02-0YA0: frequently asked questions
When can 6ES7672-8AC02-0YA0 be shipped?
6ES7672-8AC02-0YA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7672-8AC02-0YA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7672-8AC02-0YA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7672-8AC02-0YA0, subject to availability and destination.
More Siemens parts
Siemens 6ES7672-8AC02-0YA0Price and lead time confirmed within 1 business day
Request a Quote
