Siemens 6ES7648-2BF10-0XM1

SIMATIC CFast memory card, 128 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 128 GB

MPN
6ES7648-2BF10-0XM1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

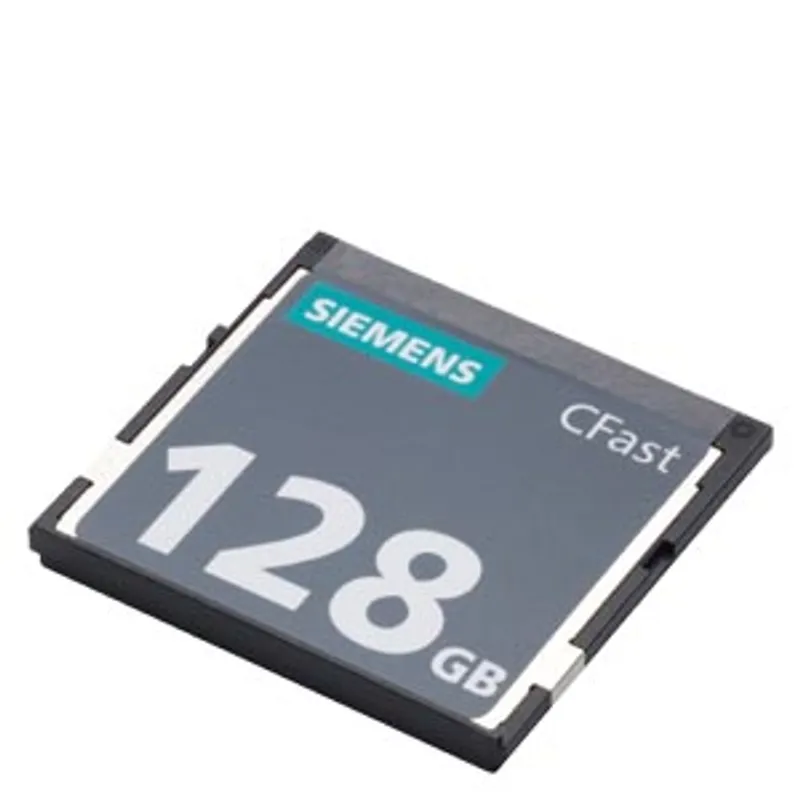

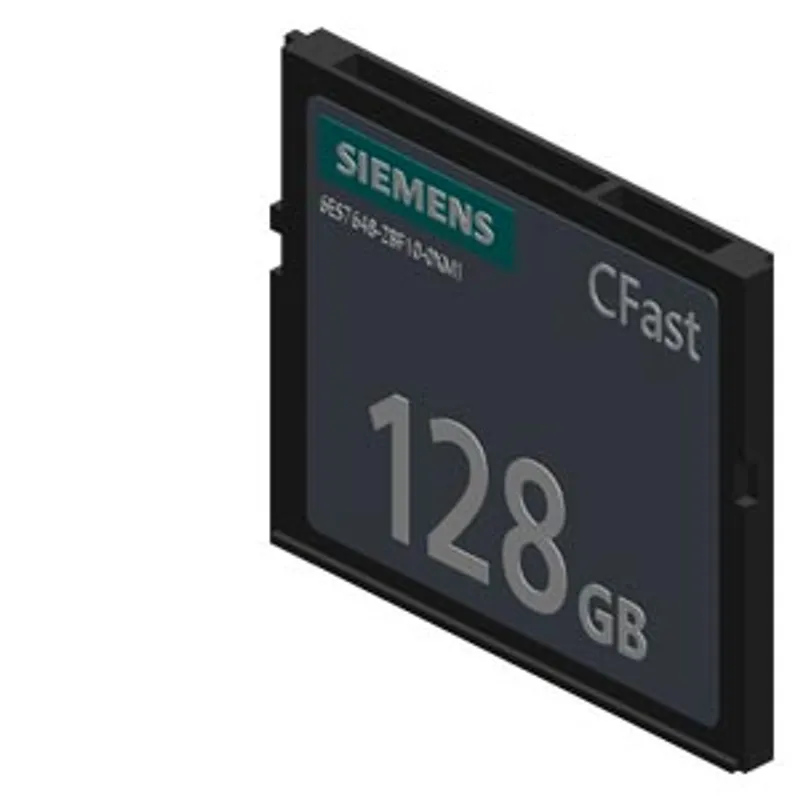

What is the Siemens 6ES7648-2BF10-0XM1?

SIMATIC CFast memory card, 128 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 128 GB

Specifications

General information

Product type designationCFast memory card

Supply voltage

Type of supply voltageDC
Rated value (DC)3.3 V; ±5 %

Input current

Current consumption (rated value)100 mA; Typical

Power

Active power input, typ.1.1 W; Inactive 0.4 W

Storage

Type of memoryCFast Type I
Memory size128 Gbyte; 1 year (data retention)
Speed classWrite speed: up to 200 MB/s (UDMA6), read speed: up to 100 MB/s (UDMA6)
Write cycles MLC flash8.8; Terabytes, industrial quality
Wear leveling (distributed writing)Yes
Write protection switchNo

Standards, approvals, certificates

CE markYes; Certificates, Declaration of Conformity can be downloaded from SIOS, for commodities directly from the manufacturer
EAC (formerly Gost-R)Yes
RoHS conformityYes
Use in hazardous areas — ATEX Zone 2Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — ATEX Zone 22Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — IECEx Zone 1No
Use in hazardous areas — IECEx Zone 11No
Use in hazardous areas — IECEx Zone 2Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — IECEx Zone 22Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — cULus Class I Zone 1Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — cULus Class I Zone 2, Division 2Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — cULus Class II Division 2Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — FM Class I Division 2Yes; Always comply with the operating instructions of the target device.
Use in hazardous areas — FM Class II Division 2Yes; Always comply with the operating instructions of the target device.
Marine approval — Germanischer Lloyd (GL)Yes; Always comply with the operating instructions of the target device.
Marine approval — American Bureau of Shipping (ABS)Yes; Always comply with the operating instructions of the target device.
Marine approval — Bureau Veritas (BV)Yes; Always comply with the operating instructions of the target device.
Marine approval — Det Norske Veritas (DNV)Yes; Always comply with the operating instructions of the target device.
Marine approval — Korean Register of Shipping (KRS)Yes; Always comply with the operating instructions of the target device.
Marine approval — Lloyds Register of Shipping (LRS)Yes; Always comply with the operating instructions of the target device.
Marine approval — Nippon Kaiji Kyokai (Class NK)Yes; Always comply with the operating instructions of the target device.
Marine approval — Polski Rejestr Statkow (PRS)Yes; Always comply with the operating instructions of the target device.
Marine approval — Chinese Classification Society (CCS)Yes; Always comply with the operating instructions of the target device.

Ambient conditions

Suited for indoor useYes; Always comply with the operating instructions of the target device.
Suited for outdoor useYes; Always comply with the operating instructions of the target device.
Ambient temperature during operation — min.0 °C; Any mounting angle
Ambient temperature during operation — max.55 °C; Any mounting angle
Ambient temperature during storage/transportation — min.-40 °C
Ambient temperature during storage/transportation — max.70 °C
Relative humidity — Operation, max.85 %
Relative humidity — Condensation permissibleNo

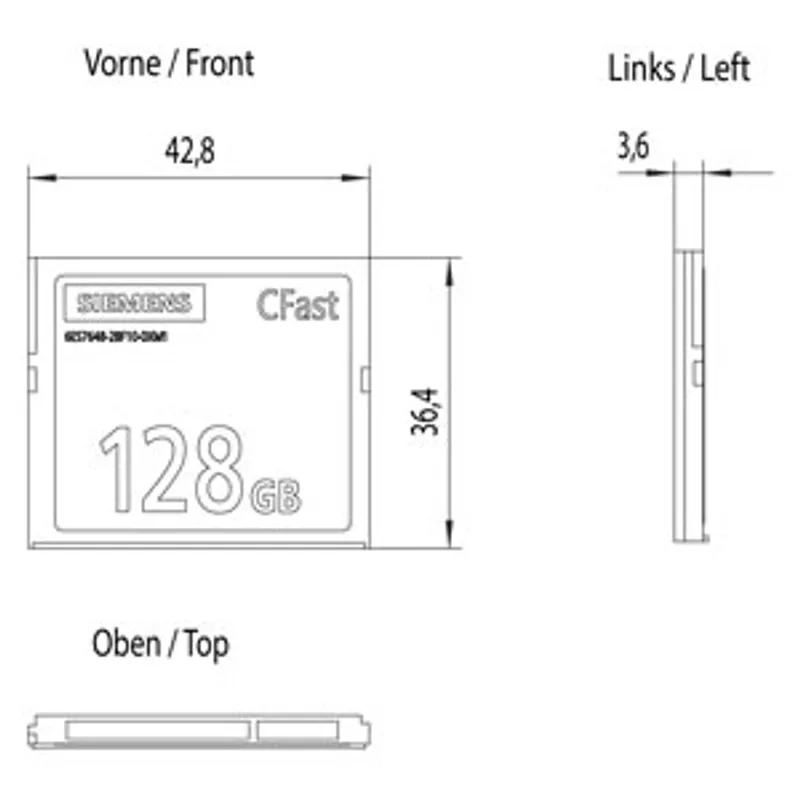

Dimensions

Width42.8 mm
Height36.4 mm
Depth3.6 mm

Weights

Weight, approx.10 g

Other

MerchandiseNo
Manufacturer nameSIEMENS AG
Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany
Target devicesSuitable for IPC and HMI devices with the corresponding interfaces (see manual)
Note:bootable, real-time capable, error correction, wear leveling, power loss protection and diagnostics-capable

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6ES7648-2BF10-0XM1: frequently asked questions

When can 6ES7648-2BF10-0XM1 be shipped?

6ES7648-2BF10-0XM1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7648-2BF10-0XM1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7648-2BF10-0XM1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7648-2BF10-0XM1, subject to availability and destination.
